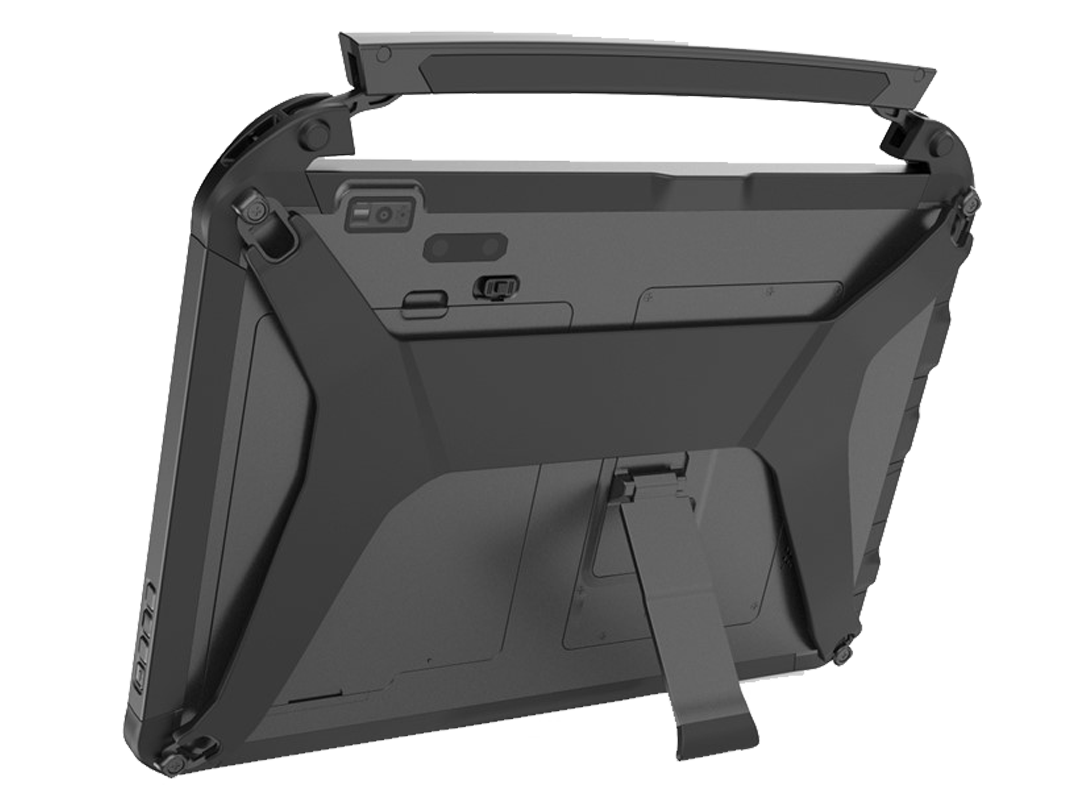

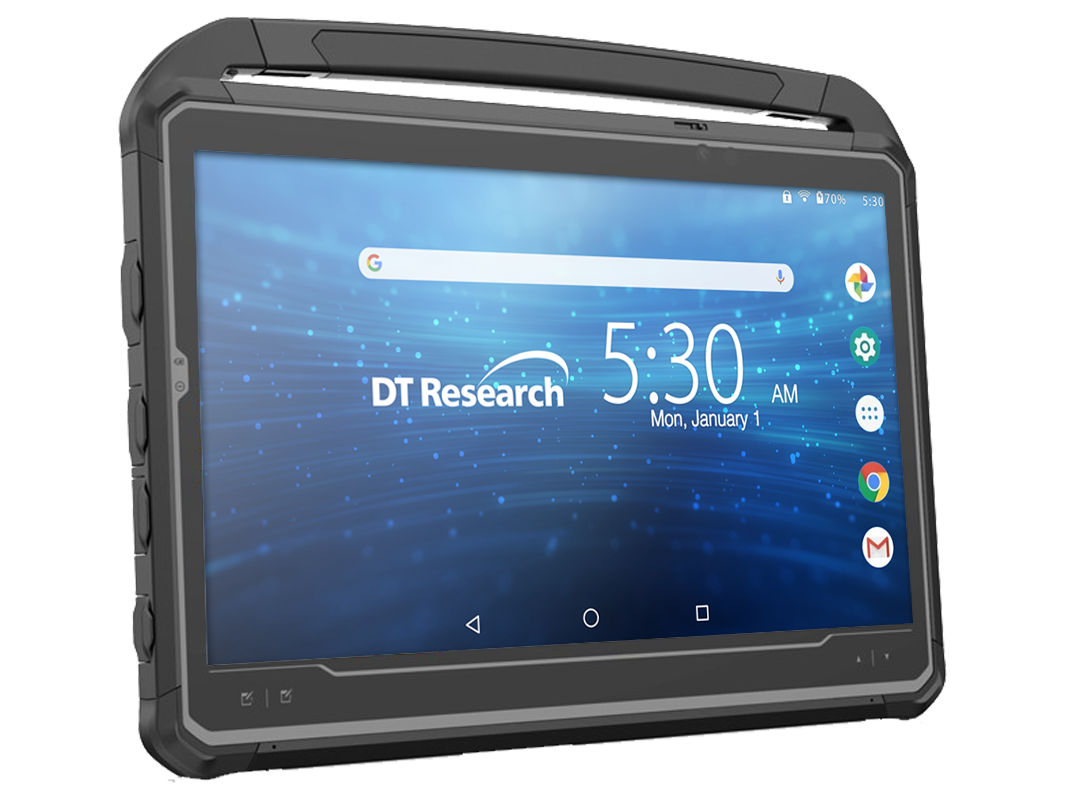

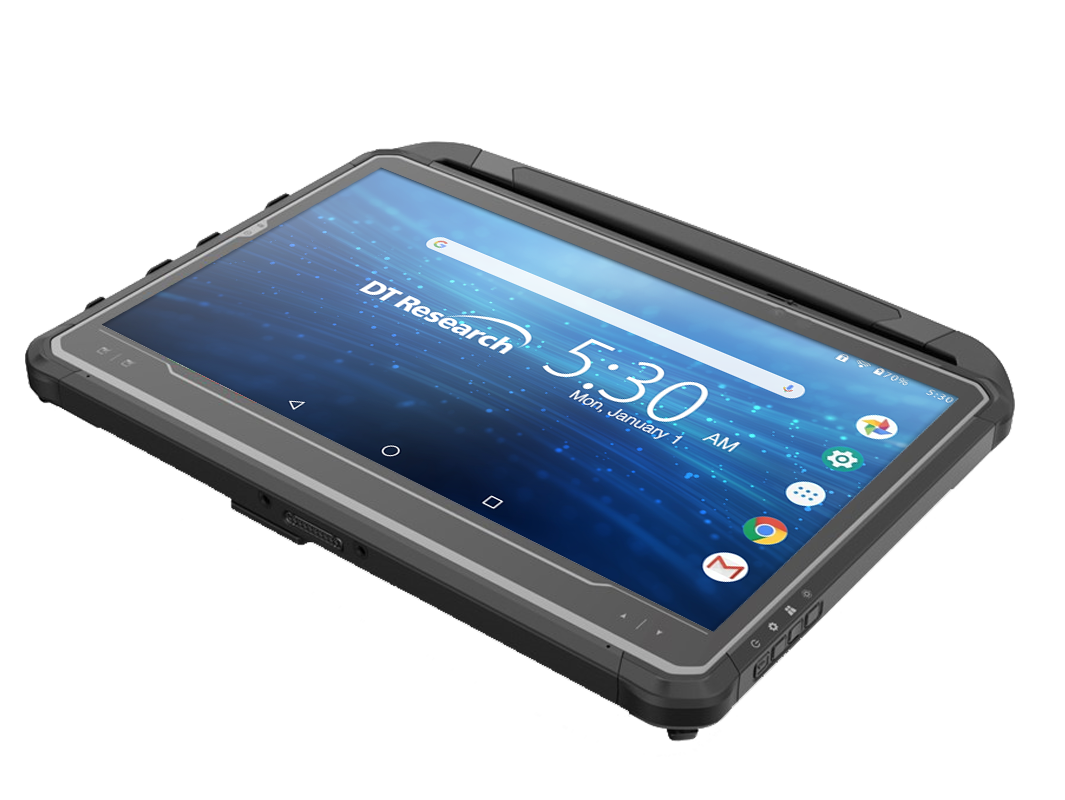

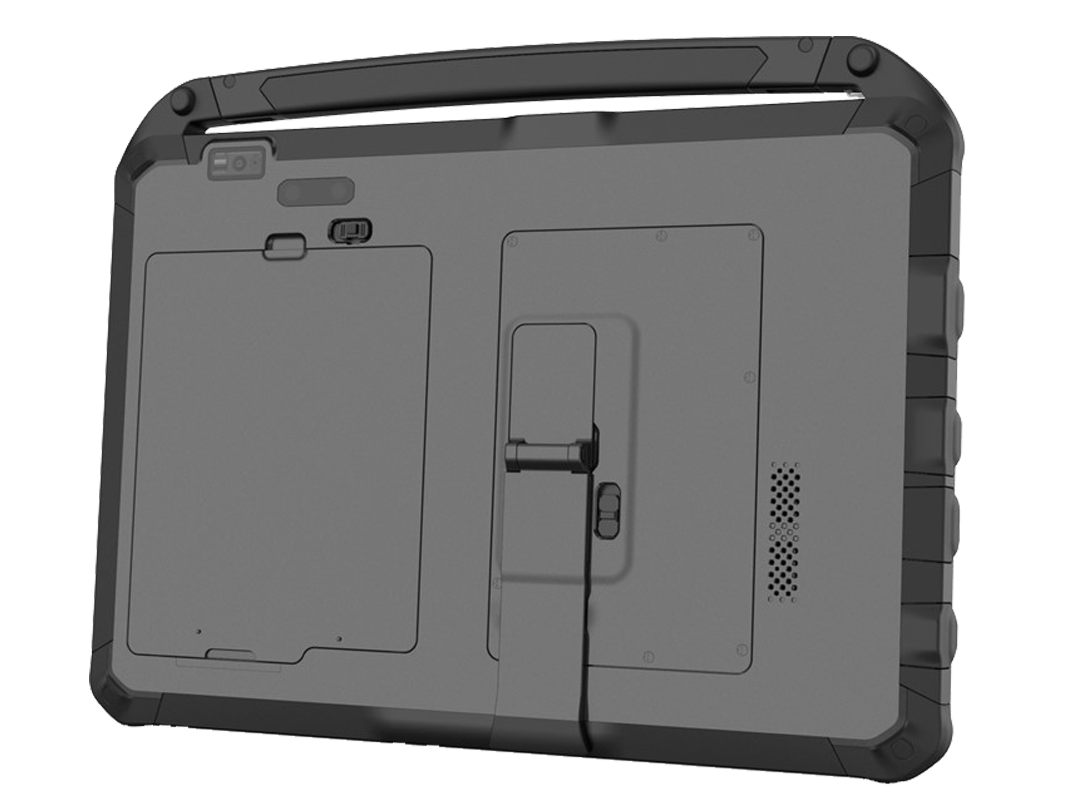

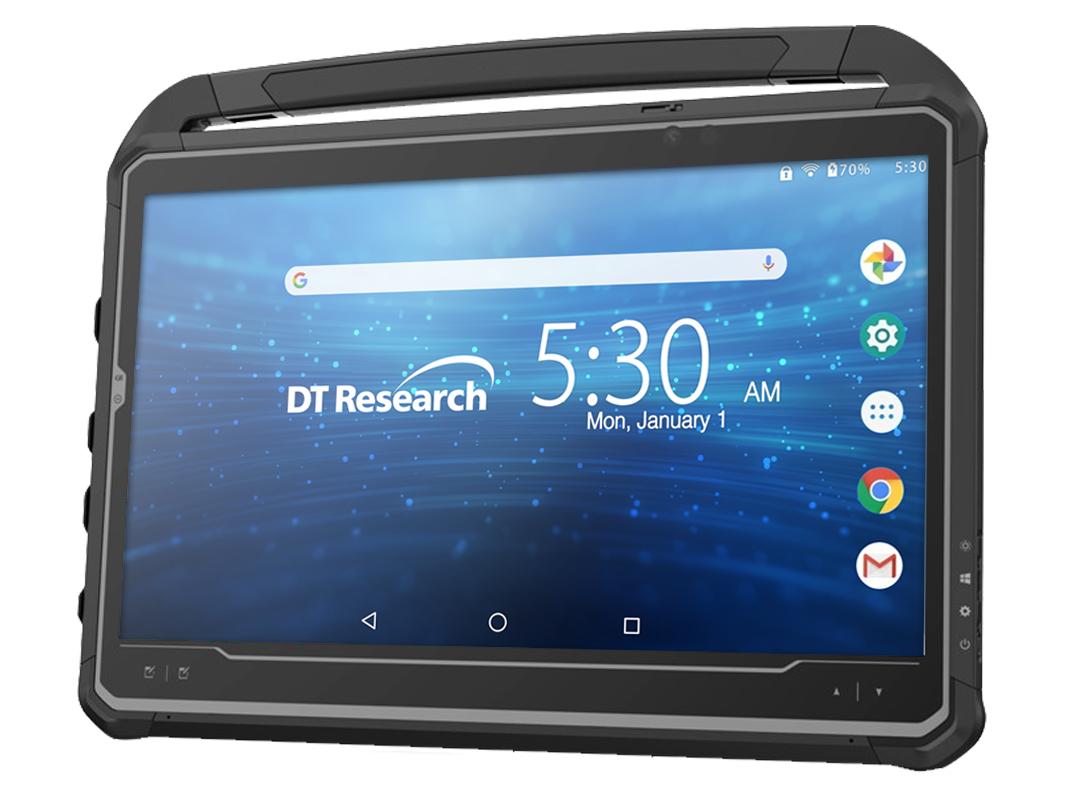

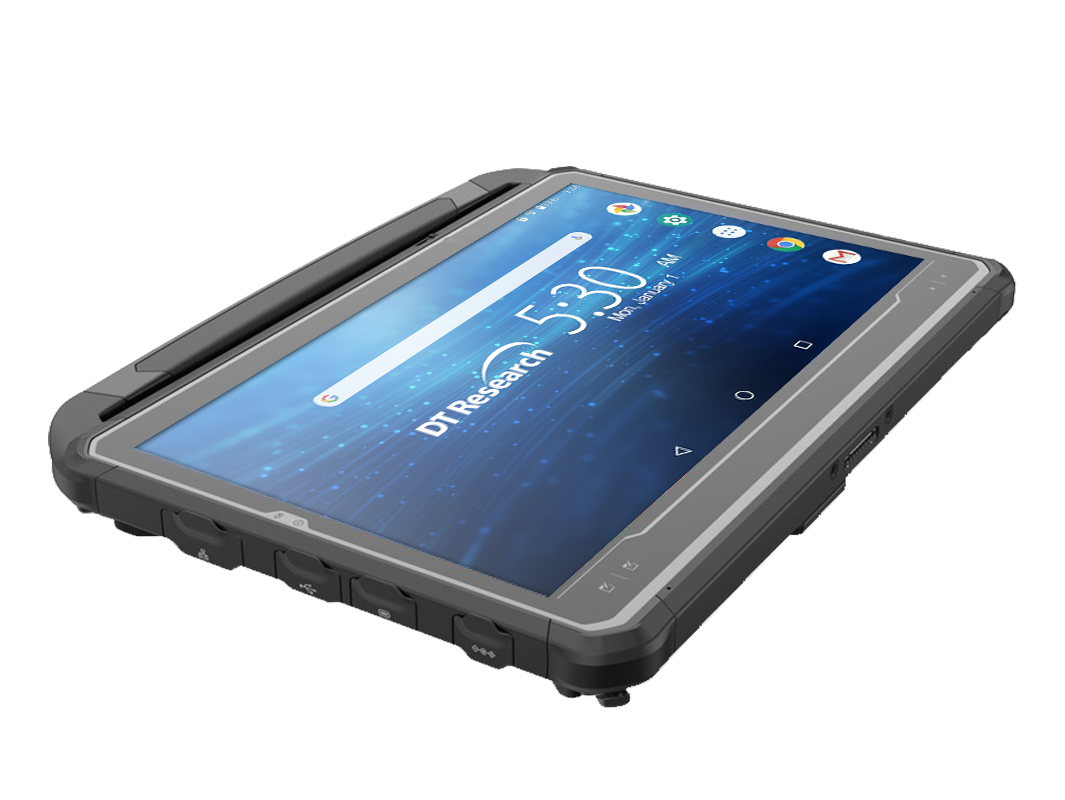

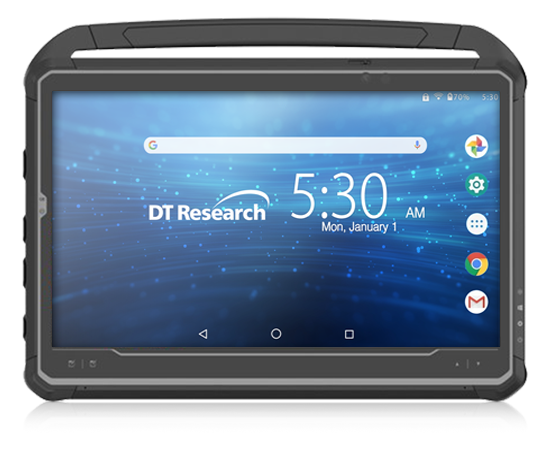

DA323EP Android Rugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

The DA323EP Rugged Tablet features the integration of a sunlight-readable 13.3” capacitive touchscreen and a high-performance, energy-efficient Qualcomm_® processor within a slim, lightweight, durable casing. With built-in Wi- Fi, front/ back cameras, as well as options for barcode scanner, GPS, and 4G LTE, this robust tablet offers seamless information capture and transmission for optimal workflow. IP65 rated and MIL-STD-810H certified with a wide temperature range, the DA323EP Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

13.3” sunlight-readable touch screen, digital pen support
Qualcomm_® 8 core processor
Android 13 operating system
Hot-swappable battery for 24/7 operation
Built-in microphone and speaker
Slim keyboard option for 2-in-1 applications
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection

Major Options

Barcode scanner
4G LTE/AWS
GPS module

*4G module, 2D scanner and GPS cannot be built onto same device.

Specifications

System

CPU

Qualcomm_® 8-core ( 1.8 GHz to 2.0 GHz )
RAM

8GB
Storage

128GB flash
Operating System

Android 13
Display

13.3" LED-Backlit, sunlight-readable (1000 nits) touchscreen LCD
Display Resolution

1920 x 1080
Microphone

Built-in microphone
Speaker

Built-in 2W speaker
Camera

8 MP front camera and 13 MP back camera

Network Interface

WLAN

Wi-Fi 802.11ac, 2.4/5 GHz dual band
BT

5.0

I/O Ports

USB Port

1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging (data and charging)
Headset Jack

1 (3.5 mm)
Ethernet Port

1
DC-In

1
Switches & Buttons

1 x power button, 2 x brightness buttons, 5 x programmable buttons

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 to 240V AC; Output: 19V DC, 3.42A
Battery Pack

Hot-swappable battery (11.4V, 3800mAh)
(Optional) Hot-swappable battery (11.4V, 5400mAh)
(Optional) Hot-swappable battery (11.4V, 8000mAh)
Enclosure

ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
Dimensions (H x W x D)

7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm
Weight

3.74 lbs/1.7 kg
Durability

IP65, MIL-STD-810H certified
Regulatory

CE, FCC Class B, RoHS, UL
Temperature

Operation: -10°C to 60°C (14°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% to 90% non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner

2D barcode scanner (reads 1D and 2D)
GNSS

GPS
Mobile Broadband

4G

Accessories

Sealed IP68 USB Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Sealed IP68 BT Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Slim Detachable Keyboard

Slim and lightweight with magnetic hinge to effortlessly attach/detach to the DA323EP rugged tablet.

Mini Keyboard

This compact, rugged keyboard with a built-in stand delivers stability and efficiency in demanding environments.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Desktop Charging Cradle

With I/O ports supporting power, USB, COM, and Ethernet.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack "offline" without affecting tablet use.

Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
