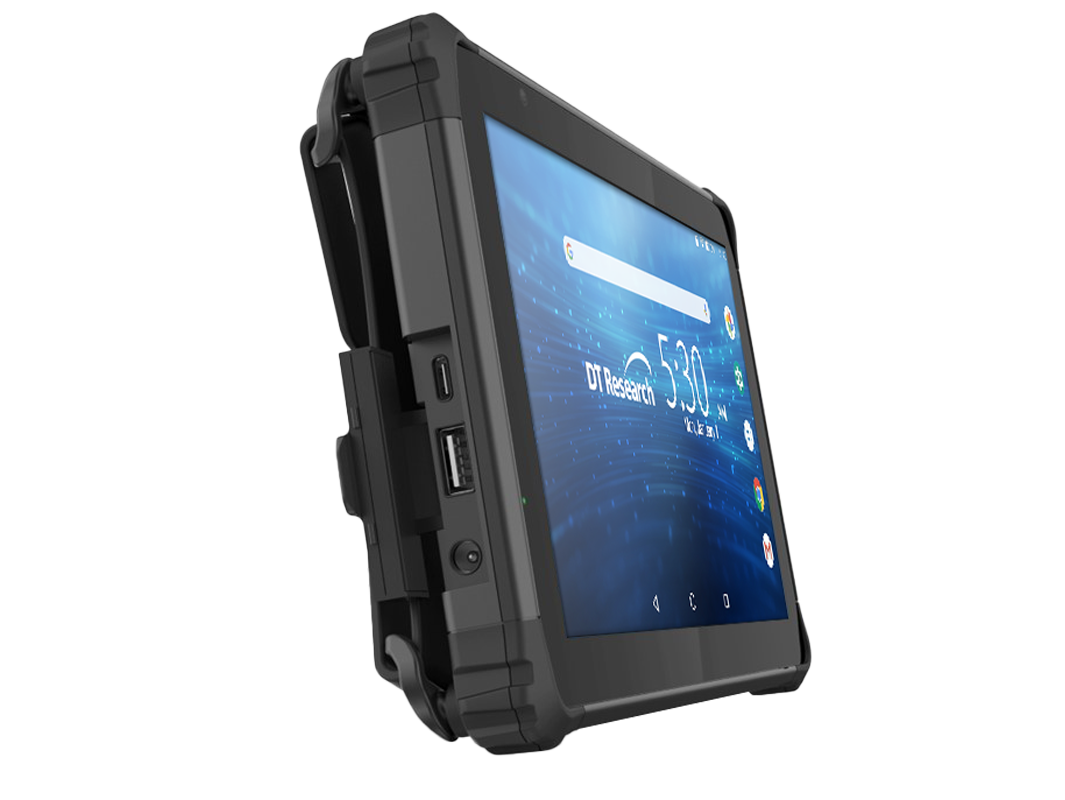

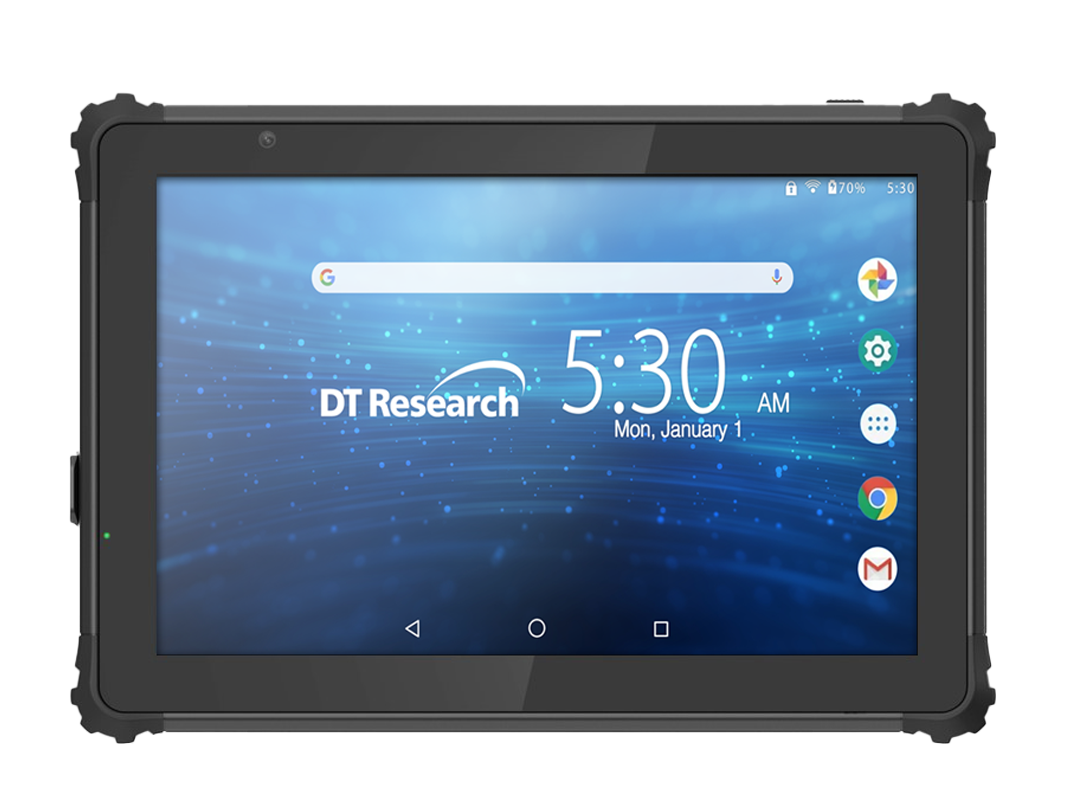

DA380QE Rugged Android Tablets

Slim, Rugged, Multi-functional Wireless Computing

The DT Research DA380QE Android Rugged Tablet features the integration of an 8" brilliant capacitive touchscreen, Android 13 operating system, and high performance yet energy-efficient Qualcomm_® 8-core processor within a slim, lightweight, and durable design. With Wi-Fi, Bluetooth, as well as options for front/ back cameras, barcode scanner, GNSS, and 4G LTE, this robust tablet offers seamless information capture and transmission for improved workflow. With IP65 and MIL-STD- 810H certification, the DA380QE Tablet provides reliable operation in harsh, mission critical environments.

Product Configurator

Features

8” high-brightness capacitive screens
Qualcomm 8-core processor
Android 13 operating system
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection

Major Options

8 MP front camera/13 MP back camera
Barcode scanner
GPS
4G LTE/AWS

Specifications

System

CPU

Qualcomm_® 8-Core (1.8Ghz to 2.0Ghz )
RAM

8GB
Storage

128GB flash
Operating System

Android 13 OS
Display

8” LED-backlight, high-brightness (850 nits) capacitive touch screen
Display Resolution

1920 x 1200
Camera

8 MP front camera/13 MP back camera

Network Interface

WLAN

Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
Bluetooth

Yes

I/O INTERFACE

USB Port

1 x USB, 1 x USB Type-C
Headphone Jack

1 (3.5mm)
DC-in

1
Switches & Buttons

1 x power button, 1 x trigger buttons

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100-240V AC; Output: 12V, 5A
Battery Pack

Hot-swappable battery, 3.7V, 8800mAh
Enclosure

ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D)

5.7 x 8.3 x 0.8 in/145.4 x 210 x 20.4 mm
Weight

TBD
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation: 0°C to 50°C (32°F to 122°F)
Storage: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity

0% – 90% non-condensing

MAJOR OPTIONS SPECS

BARCODE SCANNER

2D scanner, reads 1D also
CAMERA

8 MP Front Camera & 13 MP Back Camera
GNSS Module

Yes
MOBILE BROADBAND

4G LTE/AWS

Accessories

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Gang Charger

Simultaneously charge 4 external batteries.

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
