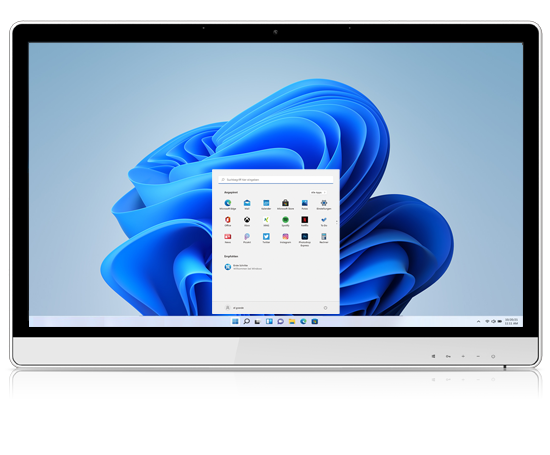

504TF
Medical-Grade All-in-One Computer for Point-of-Care Solutions
Powered by a high-performance Intel® Core™ i processor, the 504TF medical all-in-one system features a 24”TFT-LCD and a fanless, slim, and bacteria-resistant enclosure, making it ideal for various medical and healthcare applications. While the space-saving design makes the Medical-Grade Integrated LCD System easily fit into any point-of-care scenarios, its built-in Wi-Fi and BT connectivity further enables health professionals to effortlessly and efficiently monitor, record and manage patient data.
Product ConfiguratorFeatures
- 24" high-resolution touchscreen
- Intel® Core™ i processor
- Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu operating system
- Elegant all-in-one, slim, fanless design with antimicrobial enclosure
- VESA mounting compatibility for easy installation and optimized mobility
- IP65 sealed front bezel and IPX1 back cover enclosure
- Energy Star 8.0 certified
Major Options
- Integrated UPS battery
- IR camera
- Smart card/CAC reader
- NFC/RFID reader
Specifications
System
-
CPU
Intel® Core™ i5 14400T, 10-Core, up to 4.50 GHz
Intel® Core™ i7 14700T, 20-Core, up to 5.20 GH -
RAM
8GB to 64GB
-
Storage
256GB to 4TB Flash
-
Operating System
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
-
Display
23.8" Touchscreen
-
Display Resolution
1920 x 1080
-
Battery Pack
Optional integrated UPS battery x 1
-
WLAN
Wi-Fi 802.11ax, 2.4/5/6 GHz Three Band
-
BT
5.3
-
Control Button
1 x Power Button, 4 x Programmable Buttons
-
Speaker and Microphone
Built-In Microphones & Speaker
I/O INTERFACES
-
USB Port
4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A), 1 x USB2.0 (Type-C)
-
COM Port
3
-
Headphone Jack
1 (3.5 mm)
-
HDMI-out
1
-
Ethernet
2
-
DC-In Jack
1
-
Potential Equalization Conductor
1 (optional)
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
AC/DC Adapter
Input: 100-240V AC; Output: 19V DC, 6.31A
-
Enclosure
ABS Plastic, Antimicrobial Enclosure
-
VESA-compliant Mounting
100 × 100 mm VESA Standard
-
Dimensions (H x W x D)
14.6 x 22.3 x 1.8 in/370.5 x 567 x 45.2 mm
-
Weight
16.5 lbs/7.5 kg
-
Water Resistance
IP65 Sealed Front Bezel and IPX1 Back Cover
-
Regulatory
ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T 9254, CE-EMC, CE-RED, Energy Star 8.0, RCM, CCC
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F);
Storage: -20°C to 60°C (-4°F to 140°F) -
Humidity
0% – 90% non-condensing
MAJOR OPTIONS SPECS
-
Camera
IR Camera
-
Smart Card/CAC Reader
Full-Slot (ISO 7816 T=0, T=1 & 1.8/3/5V Smart Card)
-
NFC/ RFID Reader
HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1, or dual frequency, reads both 125KHz and 13.56MHz credentials
Accessories
Desktop Stand for Medical AIO
Detachable, metal construction. MD-white color.
Medical Grade AC Adapter with Power Cord
Facilitates system operation and/or battery recharge.
6-Bay Gang Charger
Available for charging up to six batteries.
Hot-swappable Battery
90W, 8250mAh battery.
3-Slot Battery Holster
Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
Battery Holster
Supplies powers to the peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
