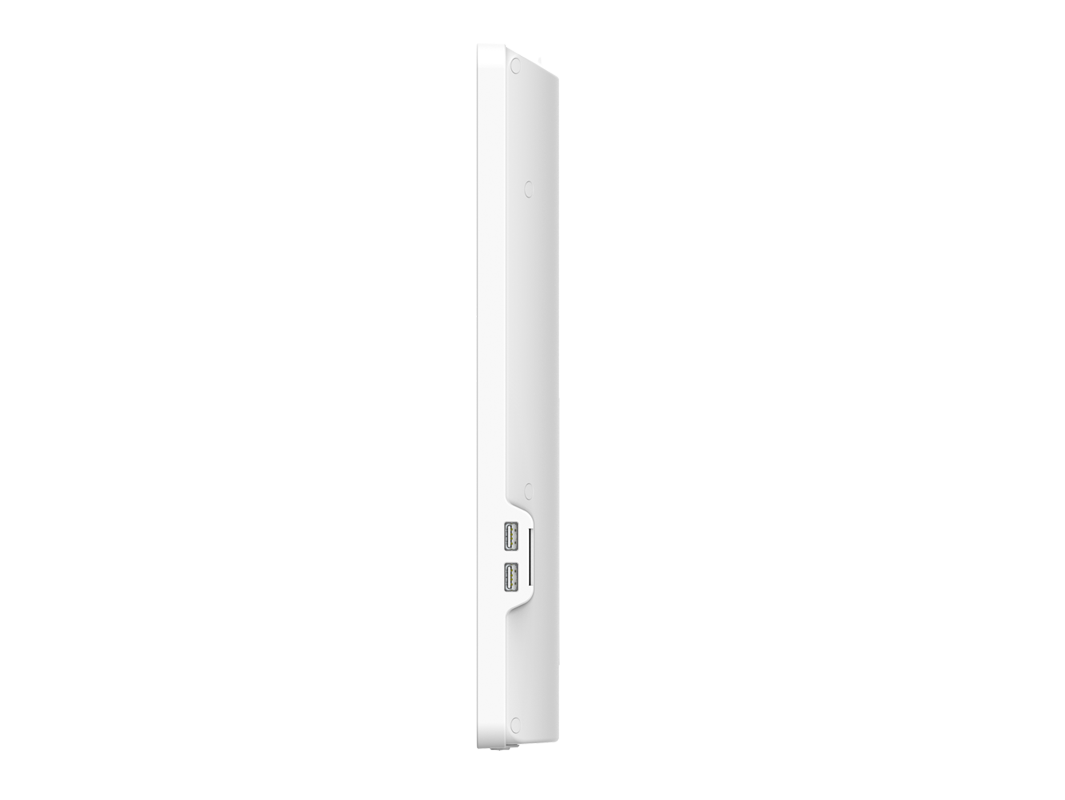

722M/724M

Fully Battery Powered Capacitive Touchscreen for Point-of-Care Applications

The DT Research 722M/724M Medical Grade Monitor integrates a 22” or 24” display and hot-swappable batteries in a slim, mountable and antimicrobial package to facilitate the system integration for healthcare applications. With built-in LED reading light, Wi-Fi antennas as well as optional data-capture modules, this Medical Grade Monitor can be paired with personal computers, embedded controllers, or thin clients for health professionals to manage information.

Product Configurator

Features

High contrast 22" or 24” touchscreen
Full-HD (1920 x 1080) resolution
Integrated hot-swappable batteries (optional, up to 3 batteries)
ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
Power supply outputs - 12V, 15V and 19V
Built-in Wi-Fi antennas, LED reading light, and speakers
VESA compatibility for easy installation

Major Options

Front camera
NFC/RFID reader

Specifications

System

Display

722M: 21.5" touchscreen
724M: 23.8" touchscreen
Display Resolution

1920 x 1080
Viewing Angle

horizontal 89-degree, vertical 89-degree
Number of Colors

16.7M
Brightness

250 cd/m2
Response Time

722M: 5 ms
724M: 16 ms
Control Buttons

1 x screen on/off button, 1 x menu button, 1 x auto/exit button, 2 x up/down buttons, 1 x reading light on/off button
Reading Light

LED reading light x 1
Speaker

Built-In Speakers

I/O PORTS

USB Port

USB 2.0 x 2 and USB 3.0 x 3
USB Port for Touchscreen Connection

USB Type-B (2.0) x 1
USB Input Port

USB Type-B (3.0) x 1
HDMI

1
Antenna

Wi-Fi passthrough x 2
DC-In

1
DC-out

12V x 1, 15V x 1, 19V x 1
COM Port

2

MECHANICAL AND ENVIRONMENTAL

Fan/Fanless

Fanless
AC/DC Adapter

Input: 100 – 240V AC; Output: 19V DC, 6.31A
Battery Pack

DR202 Li-ion battery; 90Wh, 8250mAh x 3 (optional)
Enclosure

ABS + PC plastics, antimicrobial enclosure
Dimensions (H x W x D)

722M: 13.6 x 20.4 x 1.6 in/ 345.9 x 516.9 x 40.4 mm
724M: 14.6 x 22.2 x 1.62 in/ 370.9 x 564.3 x 41.2 mm
Weight

722M: TBD
724M: TBD
VESA-compliant mounting

100mm × 100mm VESA standard
Regulatory/ Safety Certifications

ANSI/AAMI ES60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, IEC 62368-1, RCM, CCC
Temperature

Operation: 0°C – 40°C; Storage: -20°C – 60°C
Humidity

0% – 90% non-condensing

MAJOR OPTIONS SPECS

CAMERA

Full-HD front camera
NFC/RFID READER

Dual frequency, reads both 125KHz and 13.56MHz credentials

Accessories

Medical Grade AC Adapter with Power Cord

Facilitates system operation and/or battery recharge.

Hot-swappable Battery

DR202; 90W, 8250mAh battery.

6-Bay Gang Charger

6-Bay Gang Charger Kit is available for charging the DR202 batteries of 582 and 584 series Medical Cart Computers. The Kit includes one battery cradle, an AC-DC adapter and a power cord.
