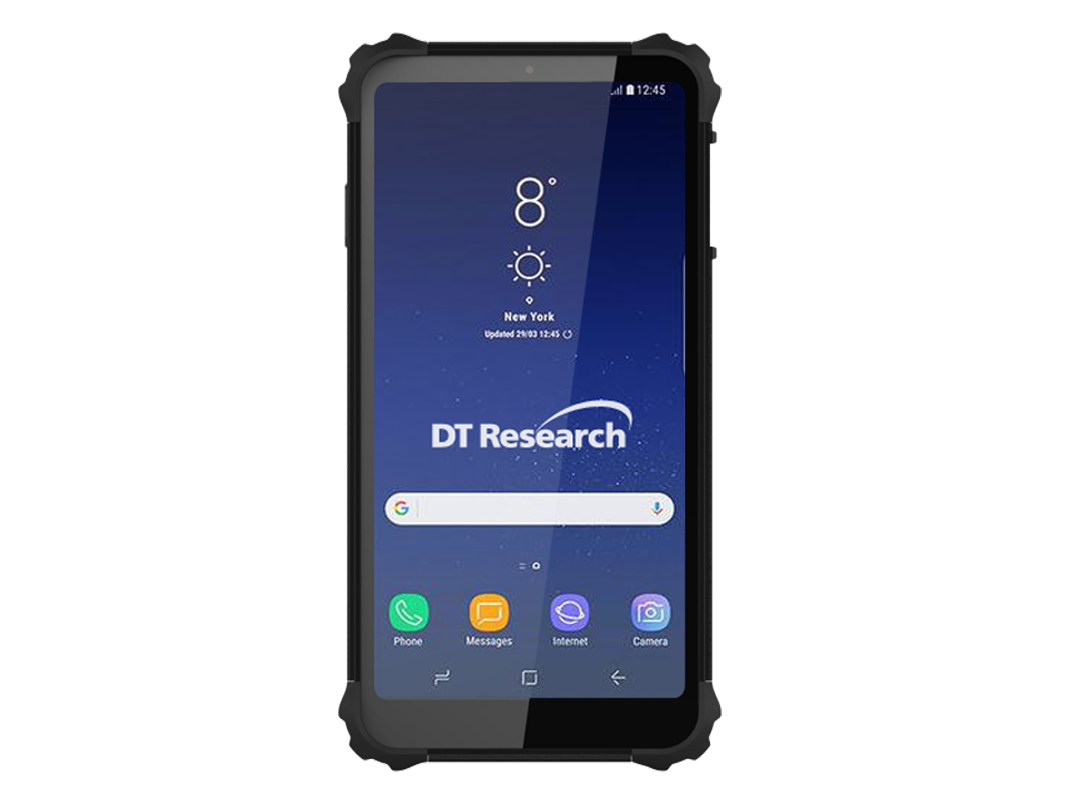

306Q POS Tablet
Rugged, Multi-functional for Point-of-Service/Sales Applications
The 306Q POS Tablet integrates a 6” capacitive touchscreen, Qualcomm octa-core processor and Android operating system in a compact and robust package for point-of-service/sale applications, inventory management, and field applications. Emphasizing superior integration and handling, the 306Q offers embedded POS-centric peripherals including magnetic stripe reader, barcode scanner, and NFC/RFID reader to provide accurate data collection and service efficiency in the restaurant, on the sales floor, and in the casinos and resorts.
Product ConfiguratorFeatures
- 6” LED-backlight screen with capacitive touch
- Qualcomm octa-core processor
- Android operating system
- MIL-STD-810H rated, 4-feet drop protection
- Hot-swappable battery pack
Major Options
- 8 MP Back Camera
- Magnetic Stripe Reader
- Barcode Scanner
- NFC/RFID Reader
- GPS
- 4G LTE/AWS
Specifications
System
-
CPU
Qualcomm Octa-Core, 2.0GHz
-
RAM
4GB
-
Storage
64GB Flash
-
Operating System
Android 9.0 and 10
-
Display
6” LED-Backlight Capacitive Touch Screen
-
Display Resolution
720 x 1440
-
WLAN
Wi-Fi 802.11ac, 2.4GHz/ 5GHz Dual Band
-
Control Switch and Buttons
1 x Power Button, 1 x Trigger Button
I/O PORTS
-
USB Port
USB Type-C x 1 (data transmitting and charging)
-
SD Slot
1 Micro SD Card Slot
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100 – 240V AC; Output: 5V DC, 3A
-
Battery Pack
Hot-Swappable Battery, 3.8V, 4600mAh
-
Enclosure
ABS + PC Plastics
-
Dimensions (H x W x D)
6.54 x 3.39 x 0.9 in/166 x 86 x 23 mm
-
Weight
0.71 lbs/320 g
-
Vibration and Shock Resistance
MIL-STD-810H
-
Regulatory
FCC Class B, CE, RoHS Compliant
-
Temperature
Operation: 14°F ~ 122°F (-10°C ~ 50°C);
Storage: -50°C ~ 70°C (-58°F ~ 158°F) -
Humidity
0% ~ 90% Non-Condensing
MAJOR OPTIONS SPECS
-
CAMERA
8 MP Back Camera with Auto Focus, white Balance, Gain Control and Exposure Control
-
MAGNETIC STRIPE READER
Triple Track Readers (ISO TK1, 2 & 3), JIS & AAMVA Compliant
-
BARCODE SCANNER
2D Barcode Scanner; Reads 1D Also
-
NFC/RFID READER
HF 13.56MHz, ISO Standard 15693, 14443A(B) & 18000-3 Mode-1
-
GPS
Yes
-
MOBILE BROADBAND
4G LTE/AWS
Accessories
Digital Pen
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

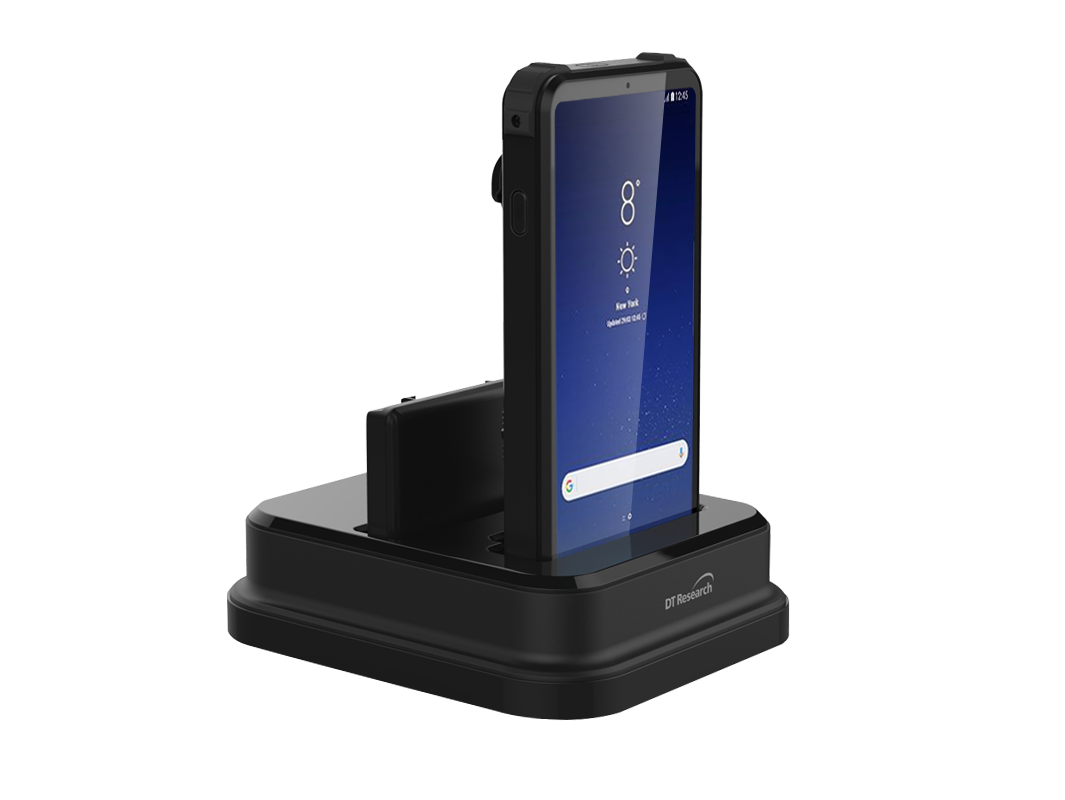

Desktop Charging Cradle
Charge one DT306 tablet and a battery pack; ports for Power, USB, and Ethernet.
4-Bay System Gang Charger
Multi-bay charger, capable of charging up to 4 tablets simultaneously.
Battery Packs
4600mAh battery packs.
AC/DC Power Adapter with Power Cord
Facilitates Tablet operation or battery recharge. USB Type-C connector.
