LT330 Rugged Laptop
Purpose-Built for Mission-Critical Environments
The LT330 Rugged Laptop features the integration of a convertible 13.3” screen, an Intel® Core™ i processor, and a full-size keyboard. With a built-in smart card/CAC reader, the LT330 provides advanced identity verification for secure data access. The night vision option supports viewing MIL-STD-3009 class B NVIS mode, offering another layer of security for light-sensitive situations. Rated IP65, MIL-STD-810H/461G and supporting a wide temperature range, the LT330 Rugged Laptop provides reliable operation in harsh, mission-critical environments.
Product ConfiguratorFeatures
- 13.3” high-brightness (1000 nits) touchscreen; digital pen supported
- Intel® Core™ i5/i7 processor
- Microsoft® Windows® 10/11 IoT Enterprise operating system
- Backlit keyboard with multi-touchpad
- Fanless, robust design with antimicrobial coating
- Built-in smart card/CAC reader (full-slot)
- Dual SSD slots, support RAID 0/RAID 1
- Dual RAM slots, up to 64GB
- Dual hot-swappable batteries for 24/7 operation
- Modular design to easily replace the SSD and batteries
- IP65-rated for water and dust resistance
- MIL-STD-810H for shock and vibration protection
- MIL-STD-461G for EMI and EMC tolerance
- HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
Major Options
- MIL-STD-3009 class B Night Vision screen
- Front Full-HD camera
- 4G LTE/AWS
Specifications
System
-
CPU
Intel® Core™ i5-1240P, 12-Core, up to 4.4 GHz
Intel® Core™ i7-1260P, 12-Core, up to 4.7 GHz -
RAM
8GB to 64GB (dual-slot)
-
Storage
256GB to 4TB SSD
(dual-slot, supports quick release and RAID 0/RAID 1) -
Operating System
Microsoft® Windows® 10/11 IoT Enterprise
-
NIST Compliance
NIST Compliant BIOS Available
-
WLAN
Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
-
Microphone
Built-In Microphone
-
Speaker
Built-In Speaker
Display
-
Screen Size
13.3" Touchscreen; 16.7M Colors
-
Display Resolution
1920 x 1080
-
Luminance
Standard High-Brightness (1000 nits)
Optional night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with naked eyes in dark environments and does not interfere with NVGs.
Optional night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with NVGs in dark environments. -
Contrast Ratio
800 (Typical)
-
Optical Response Time
25 msec (Typical)
Keyboard
-
Keys
QWERTY, full row of F1 to F12 function keys
Keys for Windows shortcuts, media controls, screen brightness -
Backlight
Yes
-
TouchPad
Multi-Touch
I/O INTERFACE
-
USB Port
2 x USB 3.0, 1 x USB Type-C (for data transmitting, video-out, and charging)
-
Ethernet
Ethernet 10/100/1000 MB Base-T LAN
-
COM Port
1
-
HDMI-out
1
-
Audio Jack
1 (3.5 mm)
-
DC-in
1
-
Smart Card/CAC Reader
Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V Smart Card
-
Kensington Lock
1
-
Buttons
1 x Power Button, 2 x Programmable Buttons, 2 x Brightness Control Buttons, 1 x NVIS/Normal Toggle
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100-240V AC; Output: 19V DC, 3.42A
-
Battery Pack
2 x Hot-Swappable Battery (11.4V, 5400mAh)
2 x Hot-Swappable Battery (11.4V, 8000mAh) (Optional) -
Enclosure
ABS + PC Plastic & Magnesium-Aluminum Alloy with Antimicrobial Coating
-
Dimensions (H x W x D)
1.41 x 13.82 x 9.84 in/35.74 x 351 x 250 mm
-
Weight
7.5 lbs/3.4 kg
-
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing
Yes
-
Durability
IP65, MIL-STD-810H and MIL-STD-461G Certified
-
Regulatory
FCC Class B, CE, RoHS Compliant
-
Temperature
Operation: -10°C ~ 60°C (14°F ~ 140°F), Optional -30°C ~ 60°C (-22°F ~ 140°F)
Storage: -55°C ~ 70°C (-67°F ~ 158°F) -
Humidity
0% ~ 95% Non-Condensing
MAJOR OPTIONS SPECS
-
CAMERA
Front Full-HD Camera with Auto White Balance & Gain/Exposure Control
-
MOBILE BROADBAND
4G LTE/AWS
Accessories
Digital Pen
Dimensions: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.
Battery Gang Charger
Simultaneously charge 6 external batteries.
Battery Charger Kit with AC Adapter and Power cord
Recharges battery pack "offline" without affecting tablet use.
High Capacity Battery Pack
Hot-swappable, 60W or 90W.
USB Type-C I/O Ports Station
Provides quick connection to multiple peripherals via the USB Type-C port.
Vehicle Mount Cradle
Supports LT330, the Cradle offers a lockable mechanism as well as 1 x USB-C connector for power input.
MIL-STD-461G AC/DC Power Adapter
◆ Input Voltage : 100-240Vac; Output Voltage:19V, 4.74A
◆ MIL STD 461G certified (Choice of North America, UK or EU power cord).

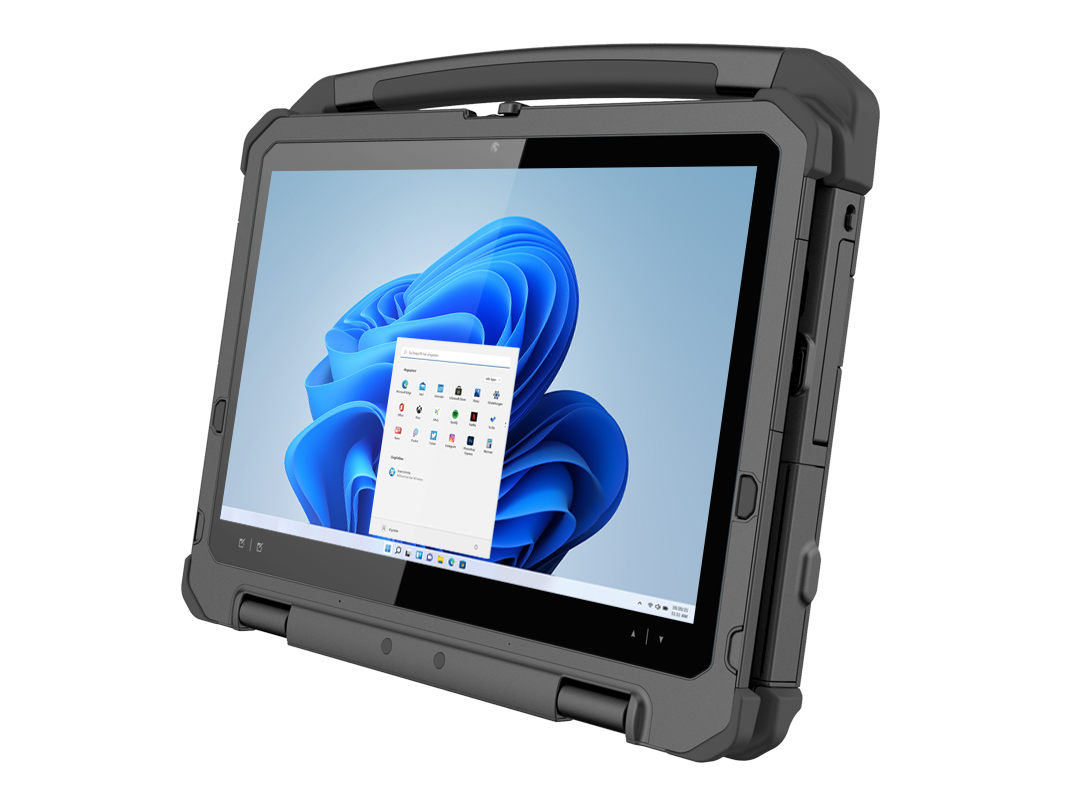

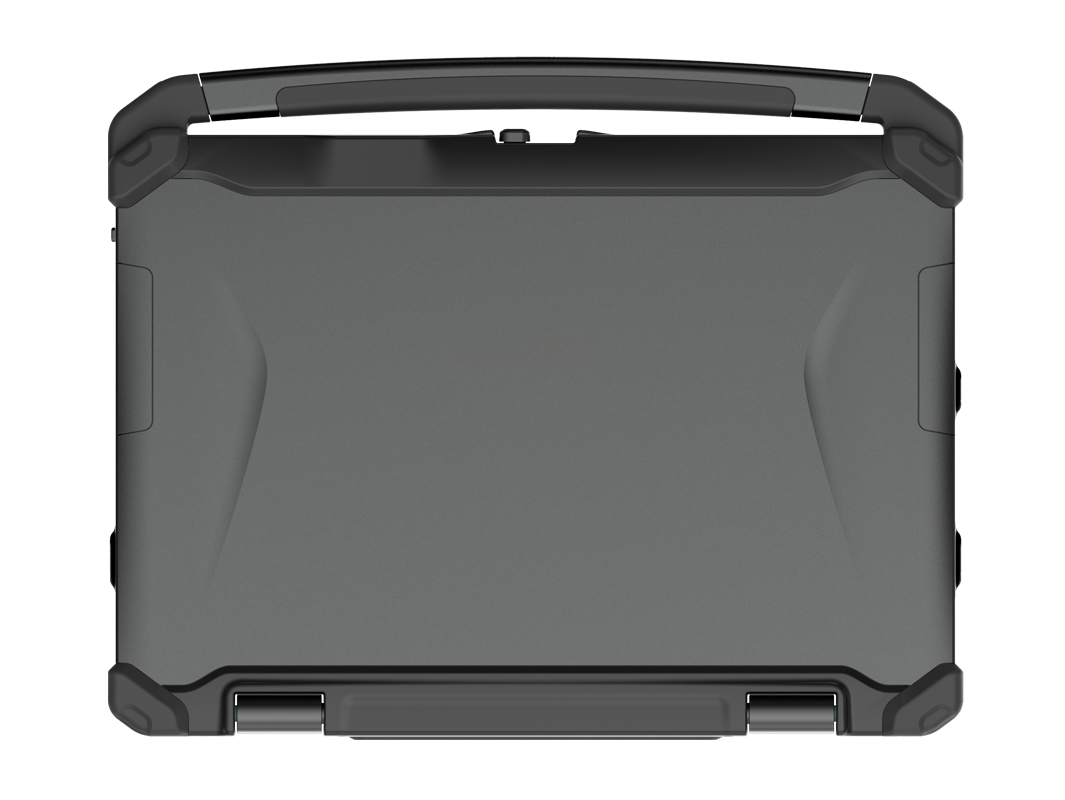

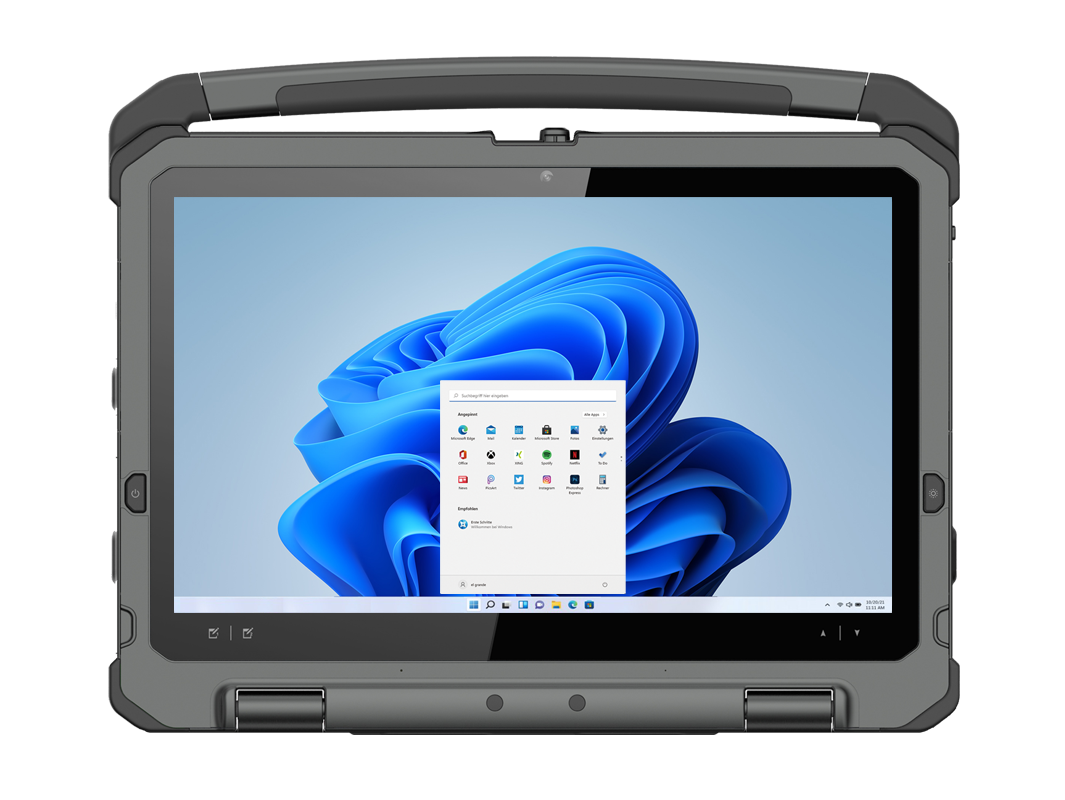

Gallery
