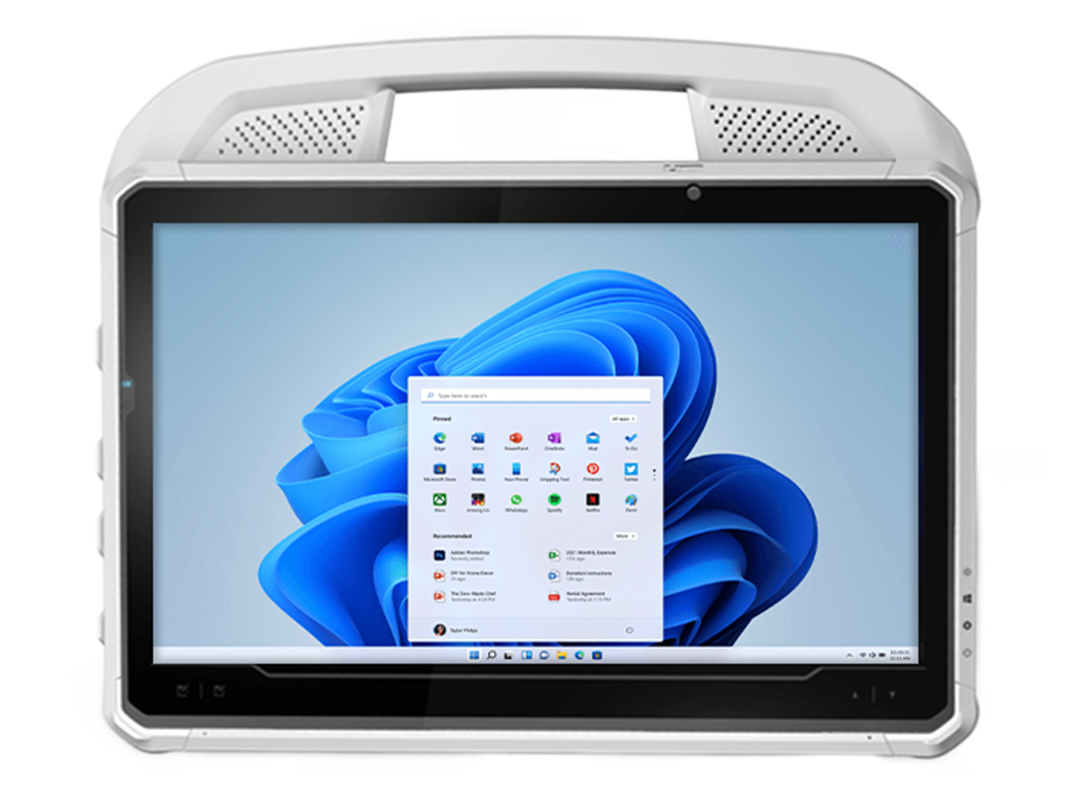

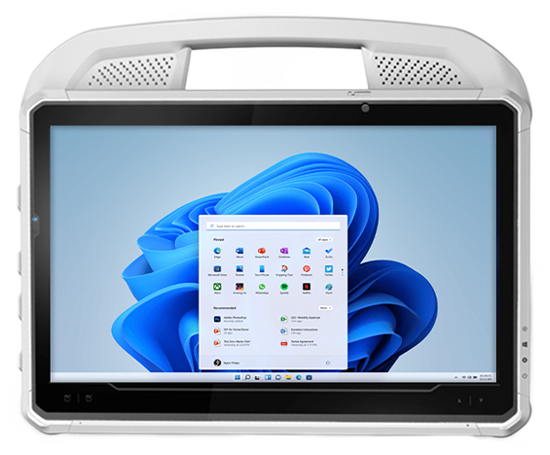

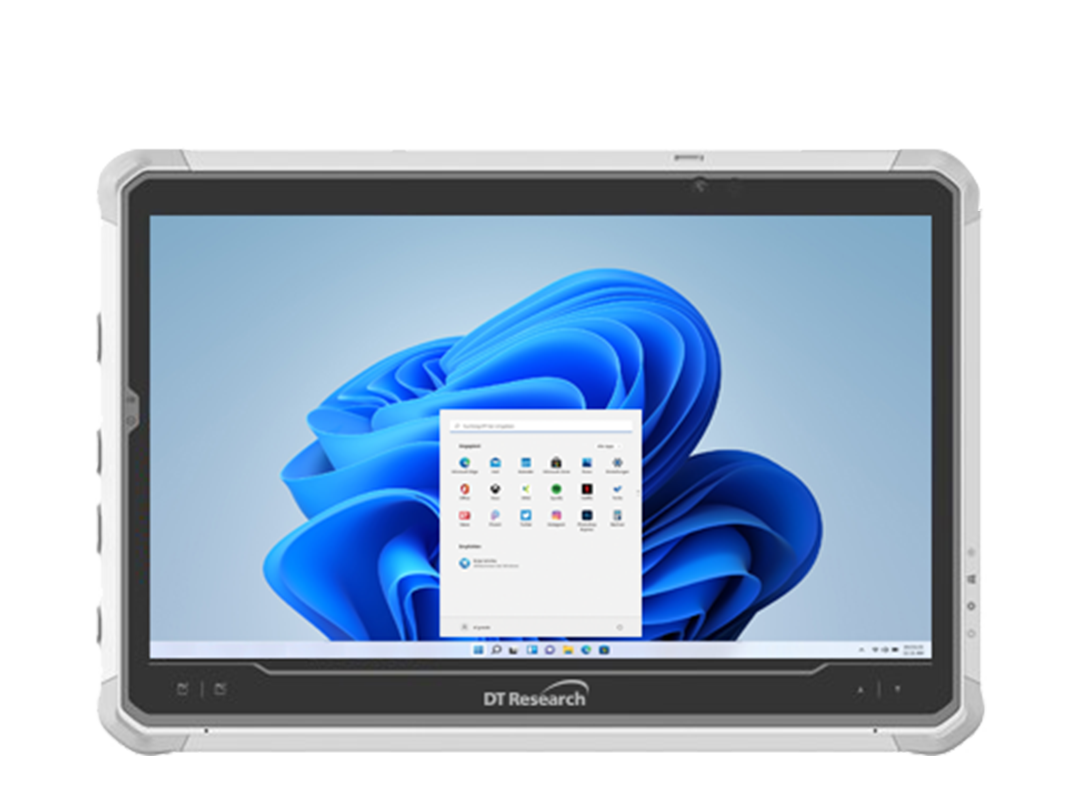

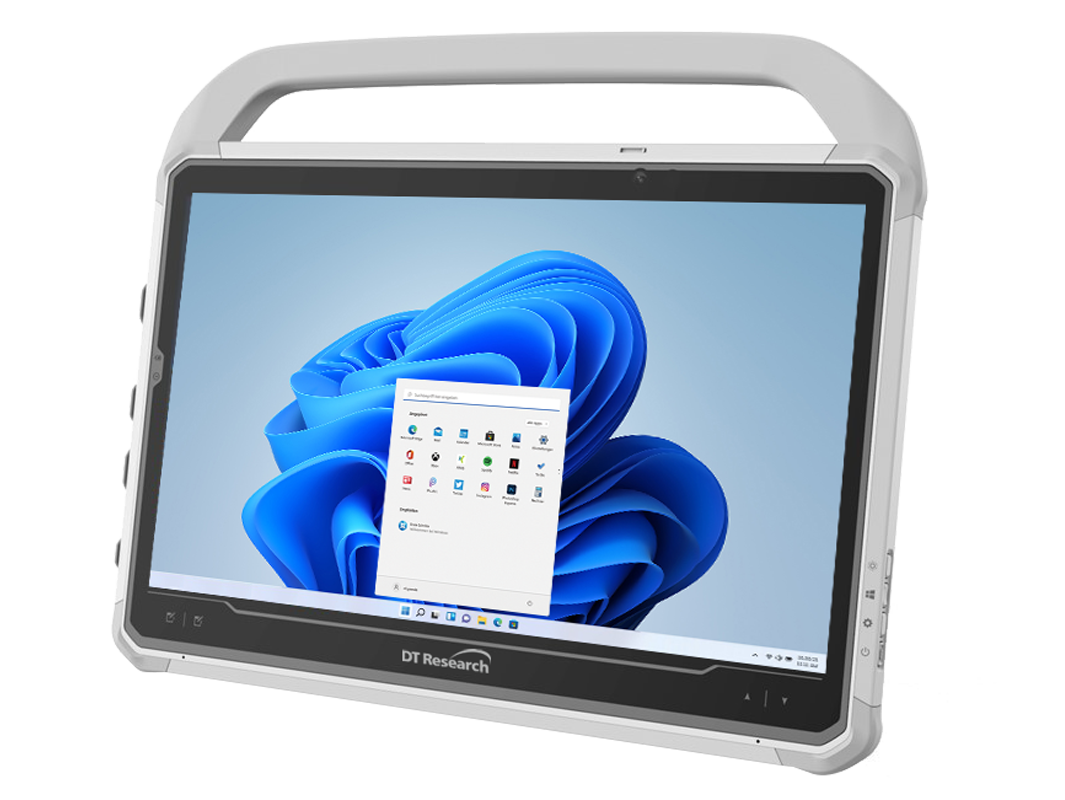

323MD Rugged Medical Tablets

Slim, Antimicrobial, ANSI/AAMI ES60601-1 Certified Tablets for Efficient Operation

The 323MD Rugged Medical Tablet features the integration of a high-brightness 13.3” touchscreen and high-performance, energy-efficient Intel_® Core™ processor within a slim, lightweight, durable package. With built-in back camera, Wi-Fi and BT connectivity, optional 2D barcode scanner, NFC/RFID Reader, front camera, and other optional data capture modules, this medical tablet serves as an effective tool to streamline the process of monitoring, recording, and retrieving patient data. The design of hot-swappable batteries enables continuous and stable operation during battery replacement, hence allowing healthcare professionals to work uninterrupted. Ideal for hospitals, clinics, and other healthcare facilities.

Product Configurator

Features

13.3” sunlight readable touchscreen, digital pen supported
Intel_® Core™ i5/i7 processor
Microsoft_® Windows_® 10/11 IoT Enterprise operating system
NIST compliant BIOS available
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
MIL-STD-461G for EMI and EMC tolerance
ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
Detachable keyboard option for 2-in-1 applications
8MP Back Camera
Quick Access SSD

Major Options

Barcode scanner
5MP Front Camera
GPS module
4G/5G
NFC/RFID READER

Specifications

System

CPU

Intel_® Core™ i5-1335U, 10-Core, up to 4.6 GHz
Intel_® Core™ i7-1355U, 10-Core, up to 5.0 GHz
RAM

8GB to 16GB
Storage

512GB to 1TB Flash
*Support quick access SSD function to easily replace the SSD without opening the back cover
Operating System

Microsoft_® Windows_® 10/11 IoT Enterprise
NIST Compliance

NIST Compliant BIOS Available
Display

13.3” LED-Backlit, Sunlight Readable (1000 nits) Touchscreen
Display Resolution

1920 x 1080
Camera

5MP Front Camera & 8MP Back Camera
Microphone

Built-In Microphone
Speaker

Built-In Speaker

Network Interface

WLAN

Wi-Fi 802.11ax, 2.4/5/6 GHz Three Band
BT

5.3

I/O INTERFACE

USB Port

1 x USB 3.0, 1 x USB Type-C
Ethernet Port

1 x Ethernet 10/100/1000MB Base-T LAN
DC-In

1
Control Switch and Buttons

1 x Power Button; 2 x Brightness Buttons; 5 x Programmable Buttons

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100-240V AC; Output: 19V DC, 3.78A
Battery Pack

Hot-Swappable Battery (11.4V, 3800mAh)
(Optional) 60W Hot-Swappable Battery (11.4V, 5400mAh)
(Optional) 90W Hot-Swappable Battery, (11.4V, 8000mAh)
Enclosure

ABS + PC Plastic and Magnesium-Aluminum Alloy
Dimensions (H x W x D)

12.8 x 10.7 x 0.8 in/325 x 273.5 x 20 mm
Weight

3.81 lbs/1.72 kg
Durability

IP65, MIL-STD-810H and MIL-STD-461G Certified
Regulatory

FCC/IC, CE/CB, ANSI/AAMI ES60601-1, RCM
Temperature

Operation*: -10°C to 60°C (14°F to 140°F)
Operation*: -30°C to 60°C (-22°F to 140°F)
*For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F)
Storage: Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% ~ 90% Non-Condensing

MAJOR OPTIONS SPECS

BARCODE SCANNER

2D Barcode Scanner (Reads 1D & 2D)
Camera

5MP Front Camera
GNSS Module

GPS Module with Concurrent Reception of GPS and GLONASS; Industry Leading - 167dBm Navigation Sensitivity
MOBILE BROADBAND

4G/5G
NFC/RFID READER

Dual Frequency( Reads 125 KHz & 13.56 MHz Credentials)

Accessories

Slim Keyboard

Slim and lightweight with magnetic hinge to effortlessly attach/detach to the 323MD rugged tablet.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Desktop Charging Cradle

With I/O ports supporting power, USB, COM, and Ethernet.

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).

Battery Pack

Hot-swappable, 43W, 60W or 90W.

10.1”/11.6”/13.3” Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
