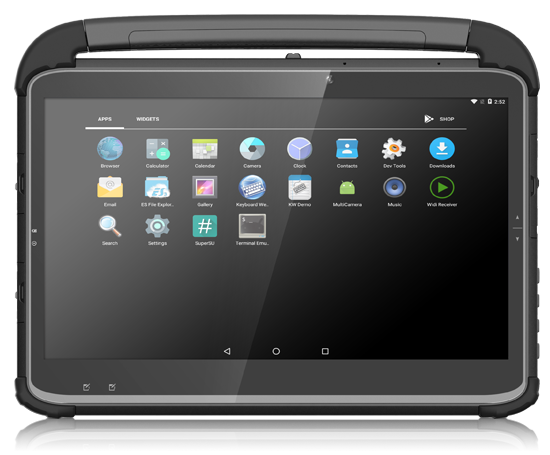

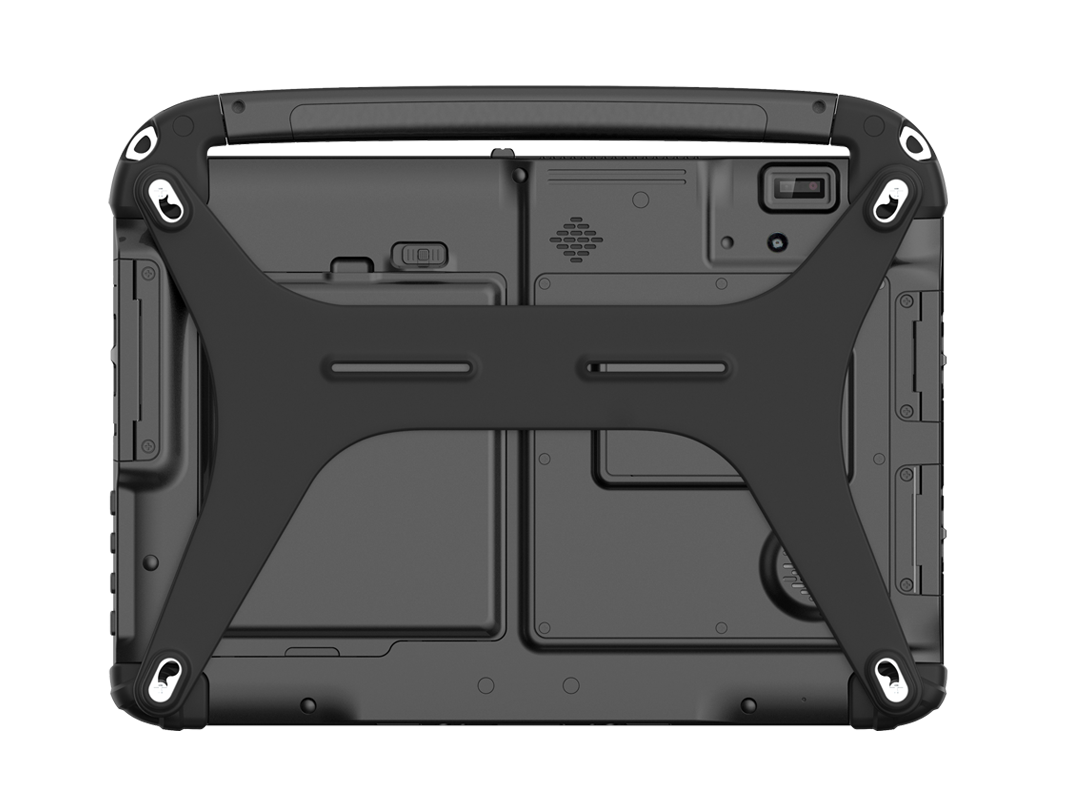

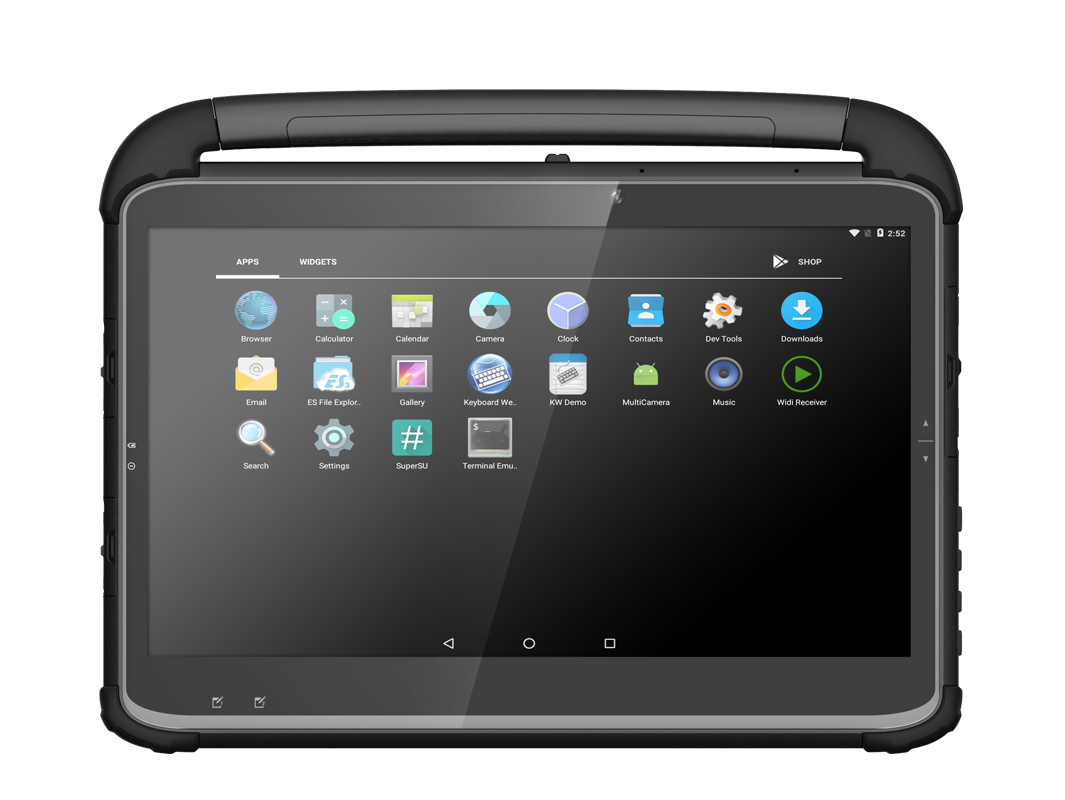

313Q RUGGED TABLET

Slim, Rugged, Multi-functional Wireless Computing

The 313Q Rugged Tablet features the integration of a high brightness 13.3”capacitive touch screen,Android operating system, and a high performance yet energy-efficient octa-core processor within a slim, lightweight, durable package. With a built-in back camera, Wi-Fi and Bluetooth as well as options for front camera, barcode scanner, GPS, and 4G connection, this rugged tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810G and HERO certified with wide temperature range, the 313Q Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

13.3" Full-HD capacitive touch screen, 1000 nits, digital pen support
Qualcomm octa-core processor
Android operating system
Hot swappable battery pack
IP65-rated for water and dust resistance
MIL-STD-810G for shock and vibration protection
HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
Built-in back camera
Detachable keyboard option for 2-in-1 applications

Major Options

Front camera
Barcode scanner
GPS
4G LTE/AWS

Specifications

SYSTEM

CPU

Qualcomm Octa-Core, 2.0GHz
RAM

4GB
Storage

64GB Flash
Operating System

Android 9.0 and 10
Display

13.3” LED-backlight, high-brightness (1000 nits) screen with capacitive touch, outdoor viewable
Display Resolution

1920 x 1080
Network Interface

Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.1 LE
Control Switch and Buttons

1 power button, 2 brightness control buttons, 5 programmable buttons
Speaker

Built-in speaker
Back Camera

8 megapixel back camera

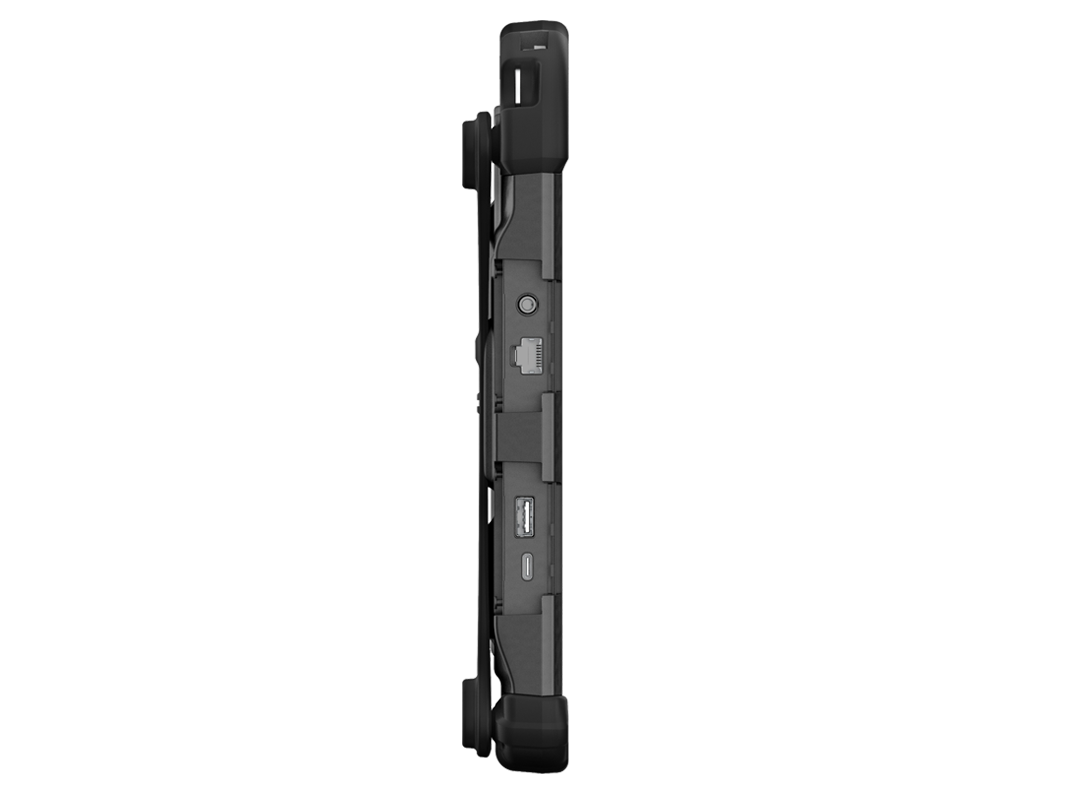

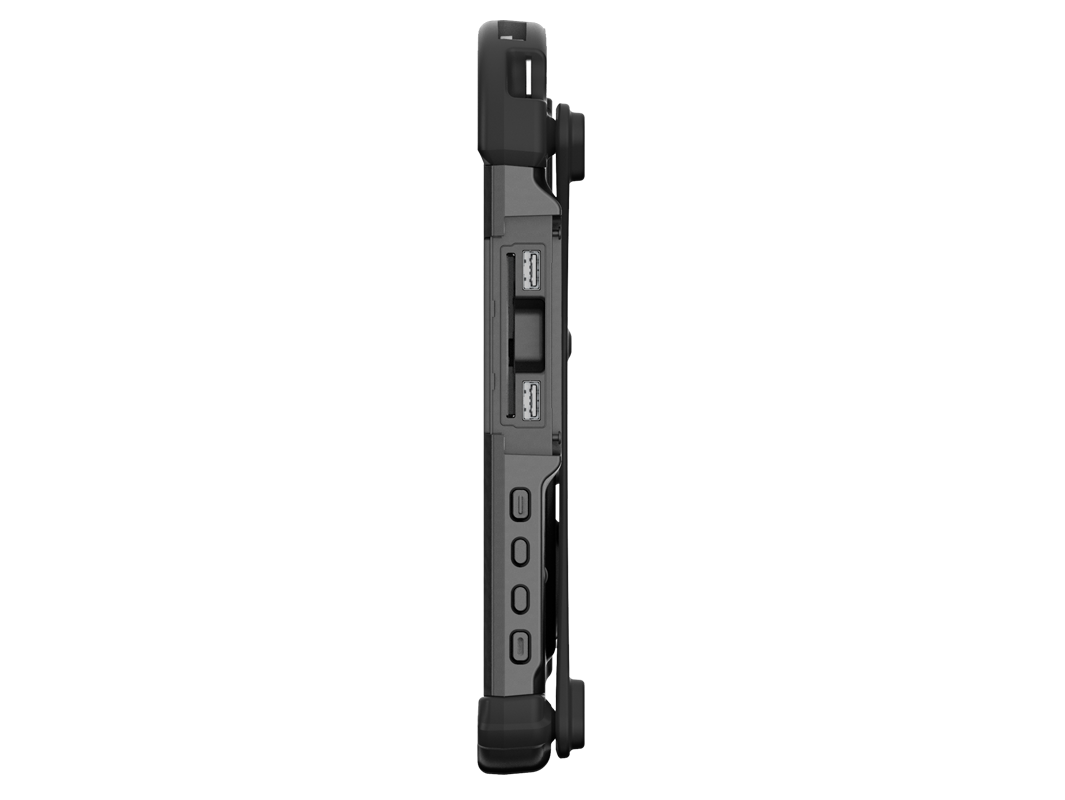

I/O PORTS

USB 3.0 Port

USB 3.0 x 3,
USB Type C x 1 (data transmitting and charging)
Headphone-out

1
SD Slot

1 micro SD card slot
Ethernet Port

Ethernet 10/ 100/ 1000MB Base-T LAN

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100-240V AC; Output: 20V DC, 3.25A
Battery Pack

Hot swappable battery, 7.6V, 6000mAh
Enclosure

ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D)

10.1 x 13.2 x 0.8 in/ 256 x 335 x 21 mm
Weight

3.97 lbs/ 1.8 kg
Durability

IP65 and MIL-STD-810G certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing

Yes
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation: -10°C to 50°C (-14°F to 122°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% – 90% non-condensing

MAJOR OPTIONS SPECS

FRONT CAMERA

2 megapixel front camera
BARCODE SCANNER

2D scanner, reads 1D also
GPS

Yes
MOBILE BROADBAND

4G LTE/AWS

Accessories

Docking Keyboard

With ports for Power, LAN, HDMI output and USB; designed to connect to the DT313Q series rugged tablets, instantly pairs, ideal for 2-in-1 applications.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Tablet Mount Cradle

Tablet storage and security with power, HDMI-out, COM, Ethernet pass-through, and USB ports; power supply is not included.

Vehicle Mount Cradle

Supports DT313Y and the Detachable Keyboard. The Cradle offers a lockable mechanism as well as USB, LAN, COM ports, a DC-in jack, and dual antenna connectors.
