592S/594S
Fully Battery Powered All-in-one Computer for Point-of-Care Applications
ANSI/AAMI ES60601-1 Certified
The 592S/594S Medical-Cart Computer, an All-in-one Medical Computer (Medical PC), integrates a 22” or 24” screen, powerful yet energy-efficient Intel® Core™ i processor computing platform, smart card reader and hot-swappable batteries (optional) in a compact, mountable package with antimicrobial coating to facilitate mobility for healthcare applications. With WLAN connectivity, this Medical-Cart Computer (Computer on Wheels/COWs and Workstation on Wheels/WOWs) is ideal for health professionals to manage information and eliminates the need to purchase costly medical cart batteries.
Product ConfiguratorFeatures
- Built-in hot-swappable batteries (optional, up to 3 batteries)
- Intel® Core™ i5 processor; high performance operation with low power consumption
- High contrast 22" or 24” capacitive touch screen
- Elegant all-in-one, slim and space saving design
- IP65 sealed front bezel and IPX1 back cover enclosure
- ANSI/AAMI ES60601-1 certified
- Antimicrobial enclosure
- Dual HDMI video-out, up to 4K UHD resolution
- Built-in 802.11ac dual band WLAN
- VESA-mountable for flexibility in mounting and deployment
Major Options
- Smart card reader
Specifications
System
-
CPU
Intel® Core™ i5-1135G7, 4-Core, up to 4.7 GHz
-
RAM
8GB to 16GB
-
Storage
256GB to 512GB Flash
-
Operating System
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
-
Display
592S: 21.5" capacitive touch screen
594S: 23.6" capacitive touch screen -
Display Resolution
1920 x 1080
-
Network Interface
Ethernet 10/ 100/ 1000 MB Base-T LAN; Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
-
Trusted Platform Module
dTPM 1.2 and fTPM 2.0
-
Control Buttons
5 side buttons: 1 power and 4 functional buttons
-
Speaker
Built-in speaker

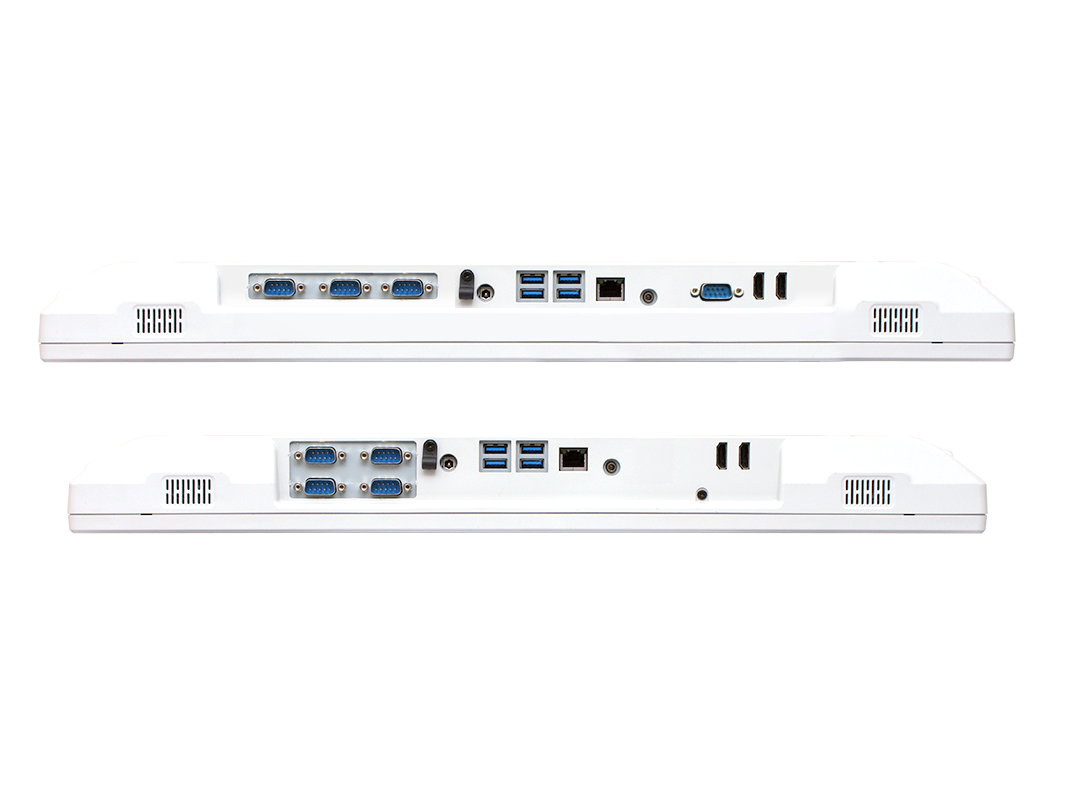

I/O PORTS
-
USB Port
USB 2.0 x 2, USB 3.0 x 4
-
COM Port
4
-
HDMI-out (1.4a)
2
-
Microphone-in
1
-
Audio-out
1
-
Ethernet
Ethernet: RJ45 connector for Ethernet x 1
-
DC-in
1
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-

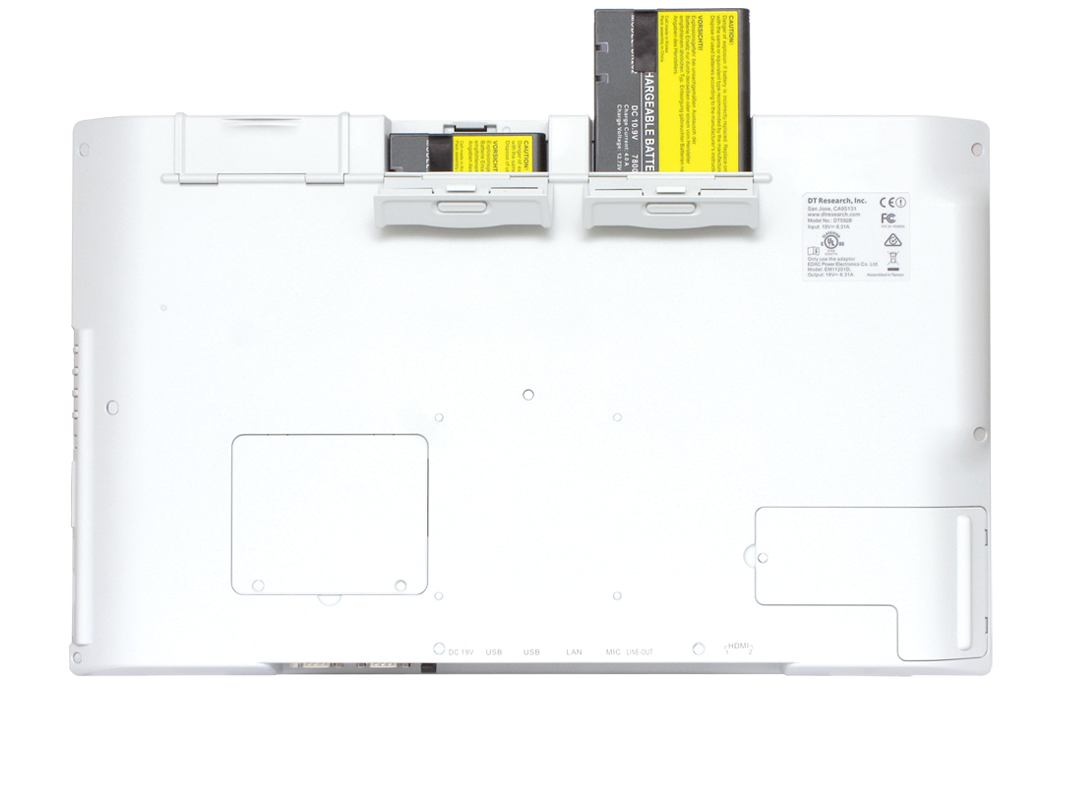

Battery Pack
Li-ion battery; 90Wh, 8250mAh x 3 (optional)
-
AC/DC Adapter
Input: 100 – 240V AC; Output: 19V DC, 6.31A
-
Enclosure
ABS + PC plastics, antimicrobial enclosure
-
Dimensions (H x W x D)
DT592S: 12.5 x 20.8 x 2.3 in/ 318 x 529 x 58 mm
DT594S: 14.2 x 22.9 x 2.3 in/ 361 x 582 x 58 mm -
Weight
(Without battery)DT592S: 11lbs/ 5kg
DT594S: 14.3lbs/ 6.5kg -
Weight
(With 3 batteries)DT592S: 14.3lbs/ 6.5kg
DT594S: 18.7lbs/ 8.5kg -
Water Resistance
IP65 Sealed Front Bezel and IPX1 Back Cover
-
VESA-compliant mounting
100mm × 100mm
-
Regulatory and Safety Certifications
FCC/IC, CE/CB, RCM, CCC, ANSI/AAMI ES60601-1
-
Temperature
Operation: 0°C – 40°C; Storage: -20°C – 60°C
-
Humidity
0% – 90% non-condensing
MAJOR OPTIONS SPECS
- SMART CARD READER
-
Reads ISO 7816 T=0, T=1 smart card, 1.8/ 3/ 5V smart card
Accessories
Medical Grade AC Adapter with Power Cord
Facilitates system operation and/or battery recharge.
Hot-swappable Battery
90W, 8250mAh battery.
6-Bay Gang Charger
Available for charging up to six batteries.
Desktop Stand for Medical-Cart Computers
VESA-compliant mounting with metal construction. MD-white color.
3-Slot Battery Holster
Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).

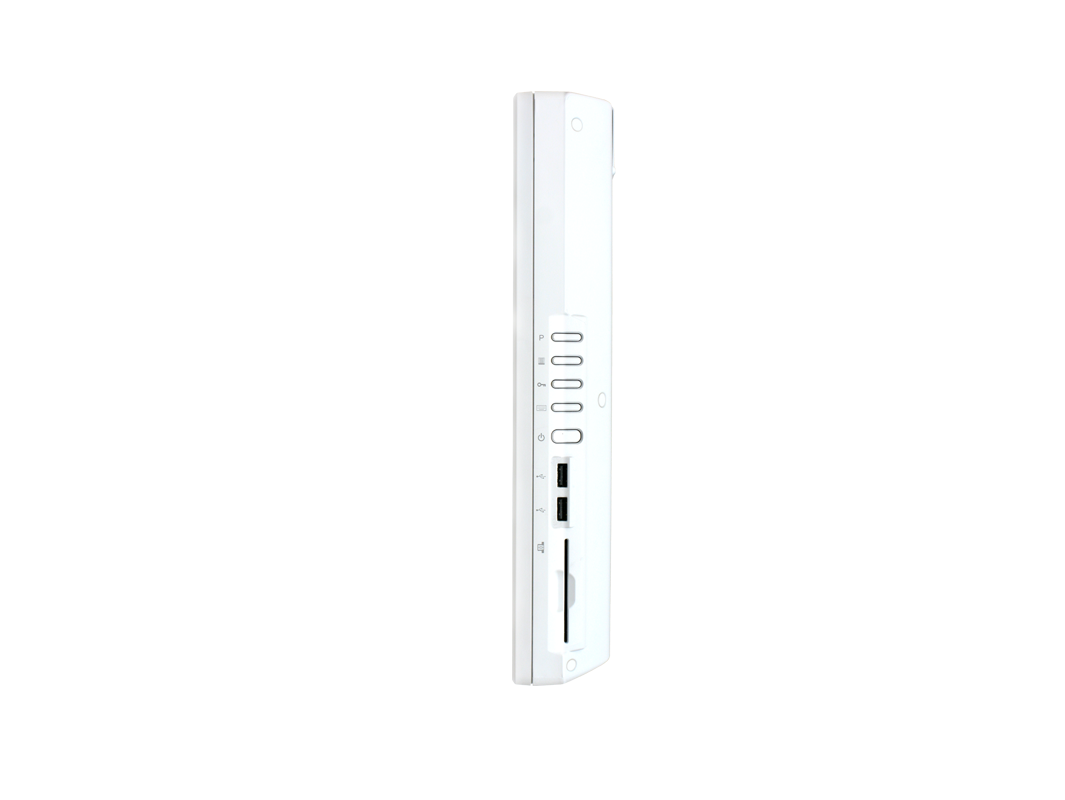

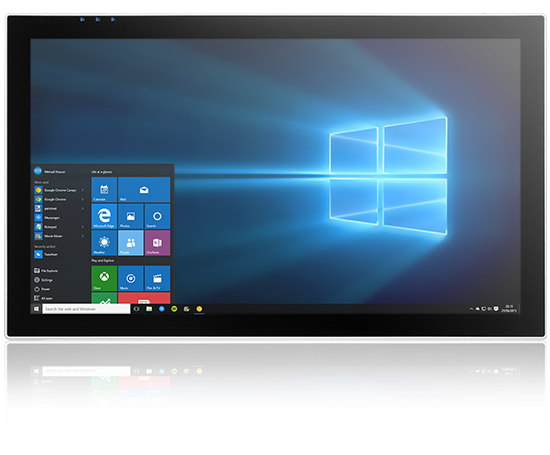

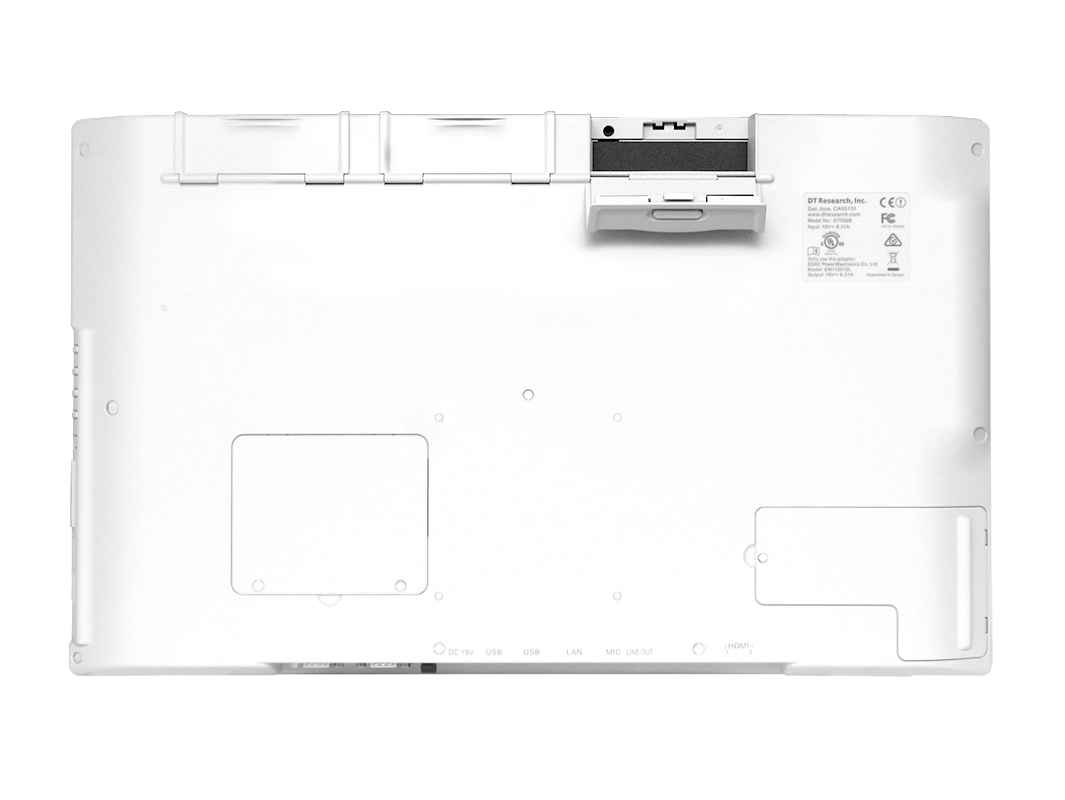

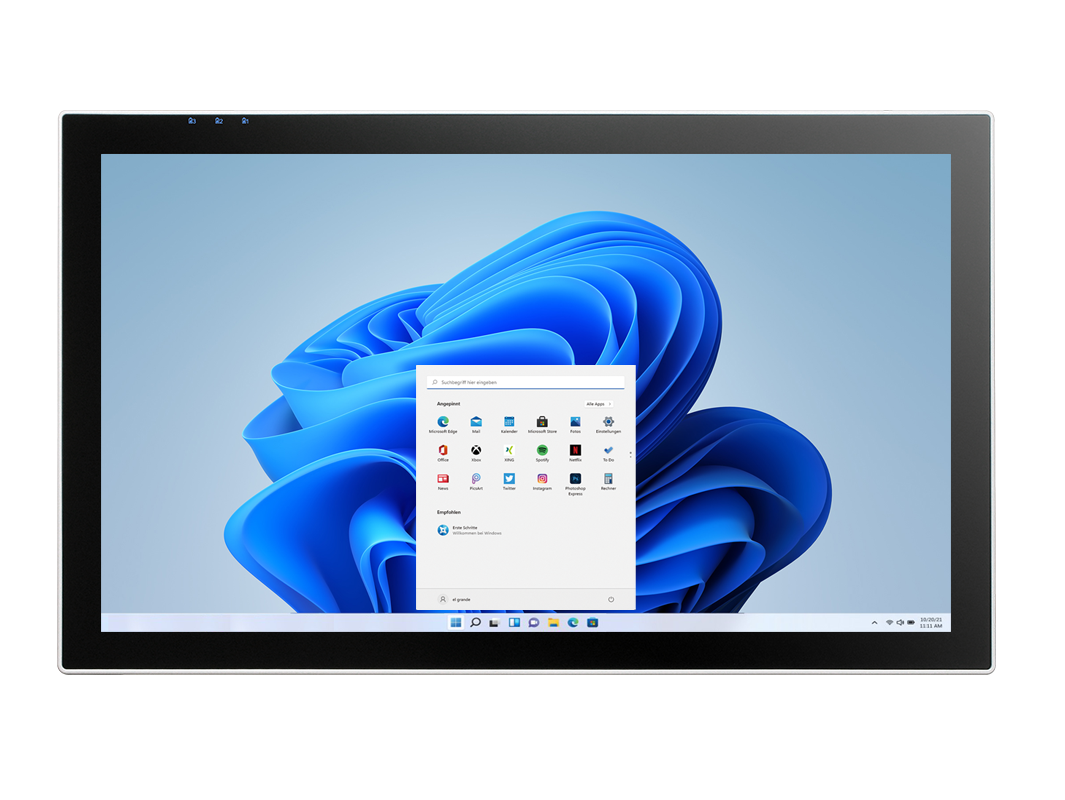

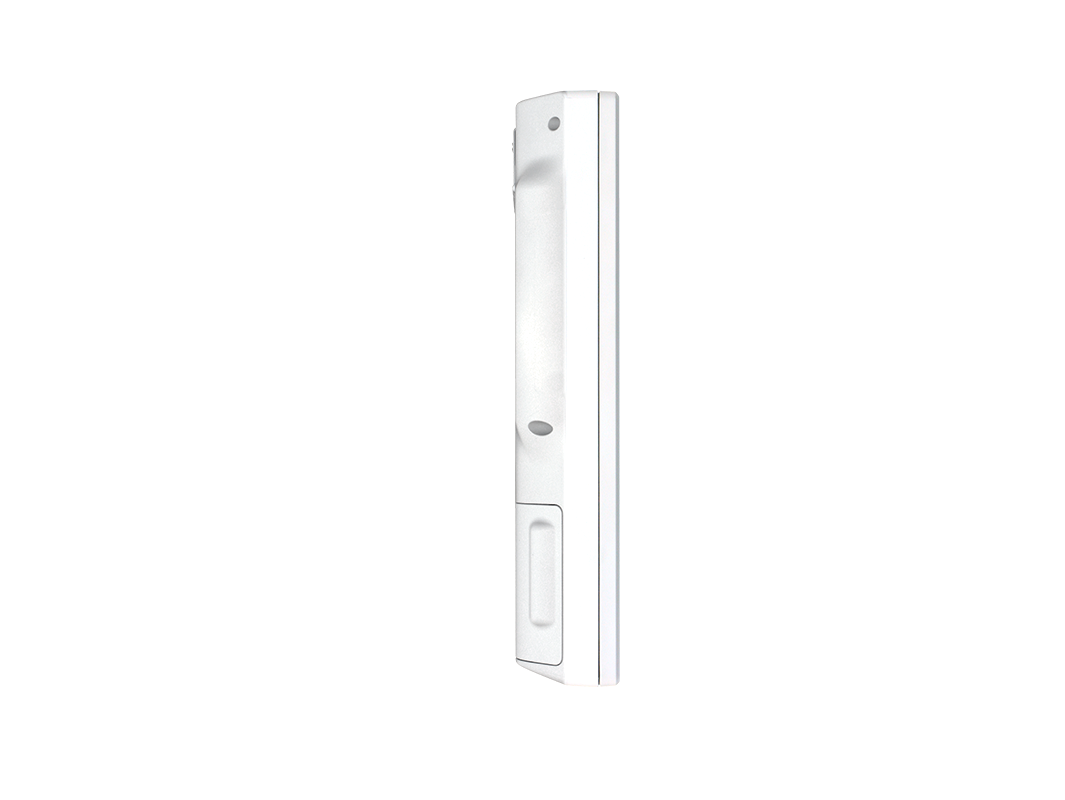

Gallery
