DT340T RUGGED 2-IN-1 TABLET

Slim, Rugged, Multi-functional Wireless Computing

Energy Star mark

The DT Research DT340T Rugged Tablet features the integration of a brilliant 14” touchscreen and high performance, energy-efficient Intel® Core™ i7/i5 processor within a slim, lightweight, durable package. With built-in smart card/CAC reader and Wi-Fi, this tablet offers seamless information capture for instant transmission in the field and in the office. With its large, vivid display and optional graphics card, the DT340T Rugged Tablet supports a wider working area and detailed application interface along with higher image and video processing. The MIL-STD and IP ratings also make this tablet stand up to real world use for mission critical applications.

Product Configurator

Features

  • 14" high-brightness touchscreen (1000 nits), digital pen supported
  • Support Intel® Core™ i7/i5 processor and Vpro function
  • NIST compliant BIOS available
  • Built-in smart card/CAC reader
  • Dual high-capacity, hot-swappable battery packs; up to 180w
  • IP65-rated for water and dust resistance
  • MIL-STD-810H for shock and vibration protection
  • Easy-to-open I/O port caps (patented)

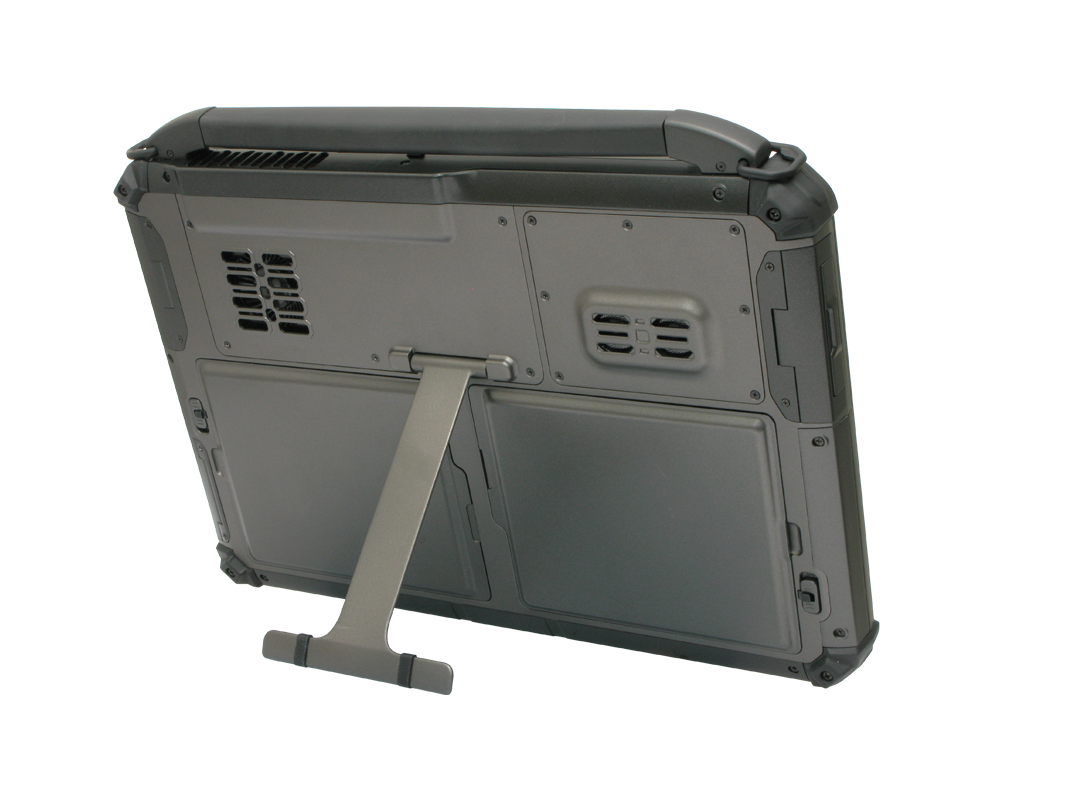

  • Foldable tabletop stand
  • Energy Star 8.0 certified

Major Options

  • NVIDIA RTX A1000 or RTX A2000 graphics card
  • 4G LTE/AWS
  • Dual pass through antennas for the docking cradle
  • GPS Module
  • Back Camera
  • * 4G/LTE Module and Smart card/CAC reader cannot be built onto same device of NVIDIA graphics card SKU.

Specifications

System
  • CPU

    Intel® Core™ i5-1340P, 12-Core, up to 4.6 GHz
    Intel® Core™ i7-1370P, 14-Core, up to 5.2 GHz

  • GPU

    Optional: RTX A1000 or RTX A2000

  • RAM

    64GB

  • Storage

    256GB to 2TB Flash

  • Operating System

    Microsoft® Windows® 10/11 IoT Enterprise, 64bit or Ubuntu

  • NIST Compliance

    NIST Compliant BIOS Available

  • Display

    14" LED-backlit, High-Brightness (1,000 nits) Touchscreen with Multi-Touch

  • Display Resolution

    1920 x 1080

  • Indicator

    1 x Power/Battery Status LED

  • Microphone

    Built-In Microphone with DSP for Real-Time Video Streaming

  • Speaker

    Built-In Speaker

Network Interface
  • WLAN

    Wi-Fi 802.11ax 2.4/5/6 Ghz three band

  • BT

    5.2

I/O INTERFACE
  • HDMI

    1

  • USB Ports

    1 x USB 3.0, 2 x USB 2.0

  • Headset Jack

    1 (3.5 mm)

  • DC-In

    1

  • Ethernet

    1 x RJ45 connector for Ethernet

  • Smart Card/CAC Reader

    Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card

  • Switches & Buttons

    1 x Power Button, 2 x Programmable Buttons

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100-240V AC; Output: 19V 65W for w/o GPU SKU and 19V 120W for A1000 SKU

  • Battery Pack

    2 x Hot-Swappable Battery (11.4V, 5400mAh)
    2 x Hot-Swappable Battery (11.4V, 8000mAh)(Optional)

  • Enclosure

    ABS + PC Plastic and Magnesium-Aluminum Alloy

  • Dimensions (H x W x D)

    9.6 x 14.8 x 1.16 in/244 x 376 x 29.5 mm

  • Weight

    6.38 lbs/2.9 kg

  • Durability

    IP65 and MIL-STD-810H Certified

  • Regulatory

    FCC Class B, CE, RoHS Compliant

  • Temperature

    Operation*: -20°C ~ 60°C (-4°F ~ 140°F); tested under MIL-STD-810H method 501.7, Procedure II, and method 502.7, Procedure II
    *For battery optimal functionality and performance, the recommended usage temperature range is from 0°C ~ 50°C (32°F ~ 122°F)
    Storage: -50°C ~ 70°C (-58°F ~ 158°F)

  • Humidity

    0% ~ 90% Non-Condensing

MAJOR OPTIONS SPECS
  • GRAPHIC CARD

    Integrated graphics card, NVIDIA RTX A1000 or RTX A2000

  • ANTENNA

    Dual pass through antennas integrated in the docking cradle

  • MOBILE BROADBAND

    4G LTE/AWS

  • Camera

    8M Back Camera with Flash

  • GPS

    U-blox GPS module

Accessories

    Tablet Mount Cradle
    Tablet Mount Cradle

    Offers Tablet storage and security with power, HDMI-out, COM, Ethernet pass-through, and USB ports. Power supply is not included.

    Digital Pen
    Digital Pen

    Dimension: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.

    Battery Gang Charger
    Battery Gang Charger

    Simultaneously charge 6 external batteries.

    Battery Charger Kit with AC Adapter and Power cord
    Battery Charger Kit with AC Adapter and Power cord

    Recharges battery pack "offline" without affecting tablet use.

    Carrying Case
    Carrying Case

    Open-to-use design with foldable tabletop stand. Made of 1680 denier nylon fiber with water-repellent coating.

    DT311 Carrying Handle
    Carrying Handle

    Carrying Handle for DT340T Tablet. Factory installed only.

    High Capacity Battery Pack
    High Capacity Battery Pack

    Hot swappable, 60W or 90W.
