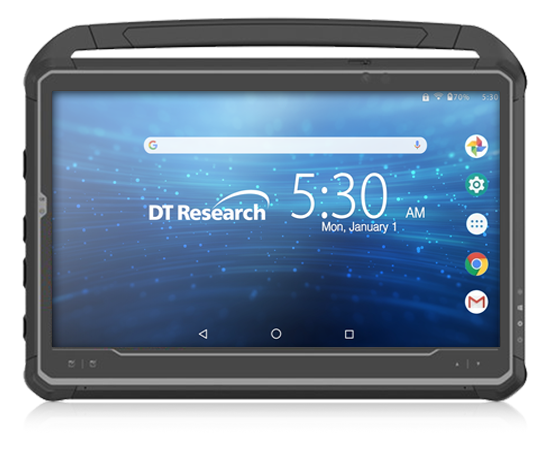

DA323EP Android Rugged Tablet
Slim, Rugged, Multi-functional Wireless Computing
The DA323EP Rugged Tablet features the integration of a sunlight-readable 13.3” capacitive touchscreen and a high-performance, energy-efficient Qualcomm® processor within a slim, lightweight, durable casing. With built-in Wi- Fi, front/ back cameras, as well as options for barcode scanner, GPS, and 4G LTE, this robust tablet offers seamless information capture and transmission for optimal workflow. IP65 rated and MIL-STD-810H certified with a wide temperature range, the DA323EP Rugged Tablet provides reliable operation in harsh, mission-critical environments.
Product ConfiguratorFeatures
- 13.3” sunlight-readable touch screen, digital pen support
- Qualcomm® 8 core processor
- Android 13 operating system
- Hot-swappable battery for 24/7 operation
- Built-in microphone and speaker
- Slim keyboard option for 2-in-1 applications
- IP65-rated for water and dust resistance
- MIL-STD-810H for shock and vibration protection
Major Options
- Barcode scanner
- 4G LTE/AWS
- GPS module
*4G module, 2D scanner and GPS cannot be built onto same device.
Specifications
System
-
CPU
Qualcomm® 8-core ( 1.8 GHz to 2.0 GHz )
-
RAM
8GB
-
Storage
128GB flash
-
Operating System
Android 13
-
Display
13.3" LED-Backlit, sunlight-readable (1000 nits) touchscreen LCD
-
Display Resolution
1920 x 1080
-
Microphone
Built-in microphone
-
Speaker
Built-in 2W speaker
-
Camera
8 MP front camera and 13 MP back camera
Network Interface
-
WLAN
Wi-Fi 802.11ac, 2.4/5 GHz dual band
-
BT
5.0
I/O Ports
-
USB Port
1 x USB3.2 (Type-A), 1 x USB3.2 latest USB/charging (data and charging)
-
Headset Jack
1 (3.5 mm)
-
Ethernet Port
1
-
DC-In
1
-
Switches & Buttons
1 x power button, 2 x brightness buttons, 5 x programmable buttons
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 3.42A
-
Battery Pack
Hot-swappable battery (11.4V, 3800mAh)
(Optional) Hot-swappable battery (11.4V, 5400mAh)
(Optional) Hot-swappable battery (11.4V, 8000mAh) -
Enclosure
ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
-
Dimensions (H x W x D)
7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm
-
Weight
3.74 lbs/1.7 kg
-
Durability
IP65, MIL-STD-810H certified
-
Regulatory
CE, FCC Class B, RoHS, UL
-
Temperature
Operation: -10°C to 60°C (14°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
-
Humidity
0% to 90% Non-condensing
MAJOR OPTIONS SPECS
-
Barcode Scanner
2D barcode scanner (reads 1D and 2D)
-
GNSS
GPS
-
Mobile Broadband
4G
Accessories
Slim Detachable Keyboard
Slim and lightweight with magnetic hinge to effortlessly attach/detach to the DA323EP rugged tablet.
Mini Keyboard
This compact, rugged keyboard with a built-in stand delivers stability and efficiency in demanding environments.
Battery Gang Charger
Simultaneously charge 6 external batteries.
Digital Pen
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
Desktop Charging Cradle
With I/O ports supporting power, USB, COM, and Ethernet.
Tablet Mount Cradle
Offers Tablet storage and security with power supply and I/O ports.
Tablet Mount Cradle
Offers Tablet storage and security with power supply and I/O ports.
Battery Charger Kit with AC Adapter and Power cord
Recharges battery pack "offline" without affecting tablet use.
Screen Protector
User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
High Capacity Battery Pack
Hot-swappable, 43W, 60W or 90W.
