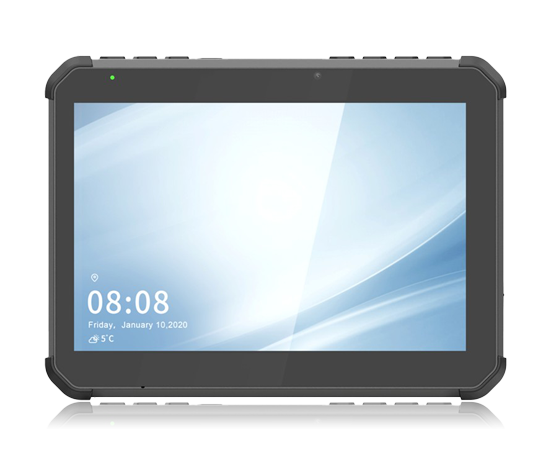

DA381ND Rugged Tablet
Slim, Rugged, Multi-functional Wireless Computing
The DA381ND Rugged Tablet features a slim, lightweight, and durable enclosure that integrates an 8” LED 1000 nits touchscreen with a powerful Qualcomm® 8-core processor. The DA381ND is engineered for durability and reliability to ensure dependable performance even in harsh environments, offering an optional Fischer MiniMax connector. With IP65 and MIL-STD-810H certifications, the DA381ND Rugged Tablet delivers dependable performance in demanding, mission-critical environments.
Features
- 8" LED 1000 nits touchscreen, capacitive stylus support
- Qualcomm® 8-core processor
- Android 13 operating system
- 5 MP front camera and 13 MP back camera
- Hot-swappable battery pack
- IP65-rated for water and dust resistance
- MIL-STD-810H for shock and vibration protection
- Wide operating temperature range
Major Options
- Waterproof 24-pin Fischer MiniMax connector
Specifications
System
-
CPU
Qualcomm® 8-core (1.9 GHz to 2.7 GHz)
-
Storage and RAM
256GB Flash with 12GB RAM
-
Operating System
Android 13
-
Security Features
ARM® TrustZone® (built-in)
-
Display
8” LED 1000 nits touchscreen
-
Display Resolution
1400 x 720
-
Camera
5 MP front camera and 13 MP back camera
-
Microphone
Built-in microphone
-
Speaker
Built-in speaker
-
Switches and Buttons
1 x power button; 1 x day/night vision switch; 2 x programmable buttons
Network Interface
-
WLAN
Wi-Fi 802.11ax, 2.4/5/6 GHz three band
-
BT
5.2
I/O Ports
-
USB Port
1 x latest USB/charging
-
24-pin Fischer Minimax Connector
(Optional) Ethernet, USB-3.2 5G/USB2.0, and power 5-6A (in) and power 2A (out)/ground/URAT
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 3.25A
-
Battery Pack
23W Hot-swappable battery (7.6V, 3100mAh)
-
Enclosure
ABS + PC plastic and magnesium-aluminum alloy
-
Dimensions (H x W x D)
5.87 x 7.91 x 0.89 in/149 x 201 x 22.6 mm
-
Weight
1.28 lbs/0.58 kg
-
Vibration and Shock Resistance
MIL-STD-810G
-
Water and Dust Resistance
IP65 and MIL-STD-810H
-
Regulatory
CE, FCC Class B, and RoHS compliant
-
Temperature
Operation: -10°C to 50°C (14°F to 122°F);
Storage: -55°C to 70°C (-67°F to 158°F) -
Humidity
0% to 90% non-condensing
Accessories
Capacitive Stylus
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
6-Bay Battery Gang Charger
Multi-bay charger, capable of charging up to 6 battery packs simultaneously.
Battery Packs
3100mAh battery packs.
