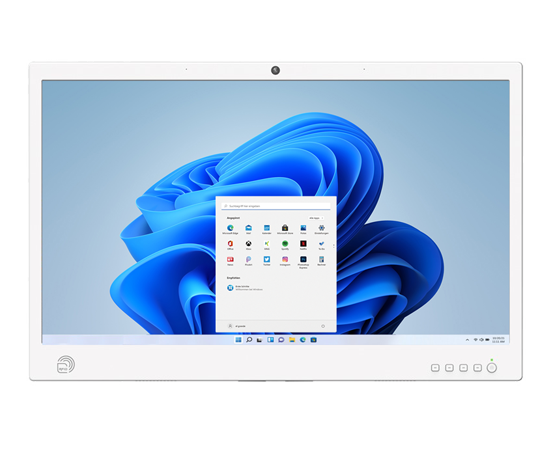

DT514LA
Slim Workstation for Point-of-Care Solutions
Designed for versatility in medical and healthcare applications, the DT514LA Medical All-in-One System offers a range of processing power and options for diverse applications—from high-performance Intel® processors for demanding workloads to cost-efficient configurations ideal for nurse stations. Featuring a 23.8” Full HD touchscreen, a fanless and antimicrobial enclosure, and VESA mounting compatibility, this slim and energy-efficient system seamlessly integrates into clean-sensitive environments. Optional features such as a smart card/CAC reader, RFID reader, and IR camera further enhance workflow efficiency, creating a robust solution for patient data management, telemedicine, and point-of-care applications.
Product ConfiguratorFeatures
- 23.8" Full HD (1920 x 1080) display
- Microsoft® Windows® 11 IoT Enterprise
- ANSI/AAMI ES60601-1 certified
- Space-saving all-in-one, slim, fanless design with antimicrobial enclosure
- VESA mounting compatibility for easy installation and optimized mobility
- IP65-rated front panel with IP54-rated enclosure
- Energy Star 8.0 certified
Major Options
- 2 MP IR camera
- Smart card/CAC reader
- RFID reader
- UPS backup battery
Specifications
System
-
CPU
Intel® Core™ Ultra 5 processor 225U, 10-core (up to 4.9 GHz)
Intel® Core™ Ultra 7 processor 255U, 12-core (up to 5.2 GHz) -
RAM
8GB DDR5 up to 64GB (SO-DIMM, two slots)
-
Storage
512GB to 4TB
-
Operating System
Microsoft® Windows® 11 IoT Enterprise
-
Display
23.8"
-
Touchscreen
Capacitive touch
-
Brightness
250 nits
-
Contrast Ratio
1000:1
-
Display Resolution
Full HD (1920 x 1080)
-
Trusted Platform Module
fTPM (optional: dTPM)
-
Buttons
1 x power button, 4 xprogrammable buttons
-
Speaker
2 x 5W speakers
-
Microphone
Built-in microphone array
Network Interface
-
WLAN
Wi-Fi 802.11be, 2.4/5/6 GHz three band
-
BT
5.4

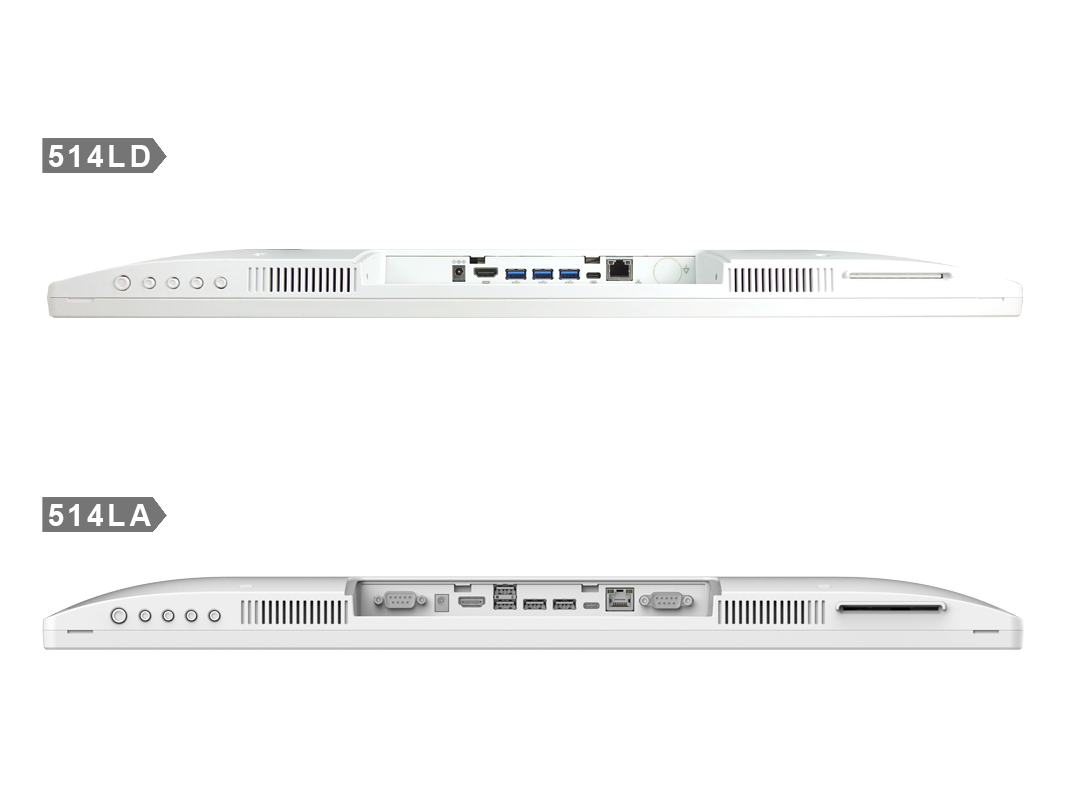

I/O Ports
-
USB Port
3 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 2 latest USB/charging
(for display output and charging) -
Ethernet Port
1 x Ethernet 2.5 GbE LAN
-
COM
2
-
HDMI
1
-
DC-In Jack
1
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 4.73A
-
Enclosure
ABS plastic, antimicrobial enclosure
-
VESA-compliant Mounting
100 × 100 mm VESA standard
-
Dimensions (H x W x D)
14.49 x 22.4 x 1.67 in/368 x 569 x 42.5 mm
-
Weight
13.89 lbs/6.3 kg
-
VESA
100 × 100 mm
-
Water Resistance
IP65 sealed front bezel and IP54 back cover enclosure
-
Regulatory
ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, CE-EMC, CE-RED, Energy Star 8.0, EPEAT
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F);
Storage: -20°C to 60°C (-4°F to 140°F) -
Humidity
0% to 90% non-condensing
MAJOR OPTIONS SPECS
-
Camera
2 MP IR camera
-
Smart Card/CAC Reader
Half-slot (ISO 7816 T=0, T=1 and 1.8/3/5V smart card)
-
NFC/ RFID Reader
HF 13.56 MHz, ISO 15693, 14443A(B) and 18000-3 mode 1, or dual frequency (125 kHz and 13.56 MHz)
-
Touch
Default
-
PoE LAN
n/a
-
UPS Backup Battery
2300mAh
Accessories
Sealed IP68 BT Keyboard
Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.
Desktop Stand
Detachable, metal construction. MD-white color.
AC/DC Power Adapter with Power Cord
Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
Hot-swappable Battery
90W, 8250mAh battery.
