704M/ 707M

Capacitive Touch Screen for Point-of-Care Applications

The DT Research 704M/ 707M Medical Grade Monitor is a slim, mountable and antimicrobial 24”/ 27” touchscreen,facilitating the system integration for healthcare applications. With Wi-Fi antennas as well as front camera option, this Medical Grade Monitor pairs with personal computers, micro PCs, and thin clients for health professionals to manage information.

Product Configurator

Features

  • High contrast 24" or 27” capacitive touch screen
  • Full-HD (1920 x 1080) resolution
  • ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
  • Built-in microphones and speakers
  • VESA-mountable for flexibility in mounting and deployment

Major Options

  • Front camera

Specifications

System
  • Display

    704M: 23.8" capacitive touch screen
    707M: 27" capacitive touch screen

  • Display Resolution

    1920 x 1080

  • Viewing Angle

    horizontal 89-degree, vertical 89-degree

  • Number of Colors

    16.7M

  • Brightness

    704M: 250 cd/m2
    707M: 300 cd/m2

  • Response Time

    704M: 16 ms
    707M: 7 ms

  • Control Buttons

    1 screen on/off button, 1 menu button, 1 auto/exit button, 2 up/down buttons

  • Speaker

    Built-in speakers

  • Microphone

    Built-in microphones

I/O PORTS
  • USB Port

    USB 3.0 x 6

  • USB Port for Touch Screen Connection

    USB Type-B (2.0) x 1

  • USB Input Port

    USB Type-B (3.0) x 1

  • HDMI

    1

  • DC-in

    1

MECHANICAL AND ENVIRONMENTAL
  • Fan/Fanless

    Fanless

  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 19V DC, 3.78A

  • Enclosure

    ABS + PC plastics, antimicrobial enclosure

  • Dimensions (H x W x D)

    704M: 14.6 x 22.3 x 1.8 in/ 370.5 x 567 x 45.2 mm
    707M: 16.2 x 25.2 x 1.8 in/ 411.8 x 639.1 x 45 mm

  • Weight

    704M: 16.14 lbs/ 7.32 kg
    707M: TBD

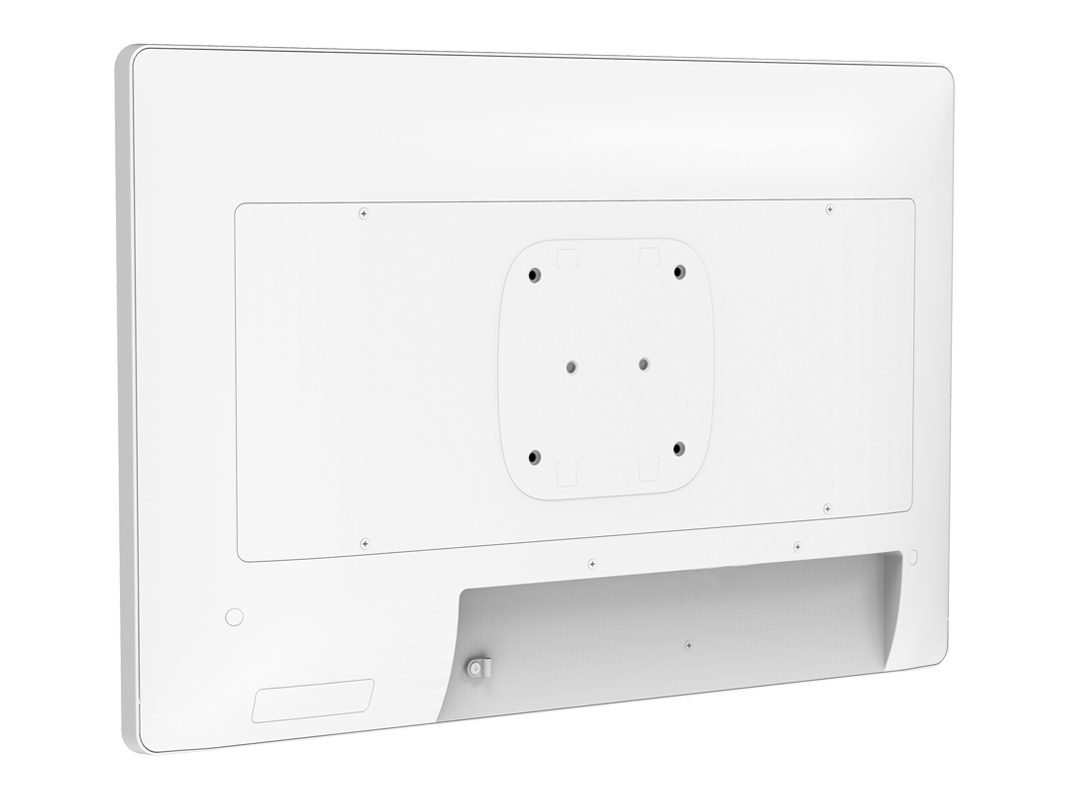

  • VESA-compliant mounting

    100mm × 100mm VESA standard

  • Regulatory/ Safety Certifications

    ANSI/AAMI ES60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, IEC 62368-1, RCM, CCC

  • Temperature

    Operation: 0°C to 40°C (32°F to 104°F); Storage: -10°C to 50°C (14°F to 122°F)

  • Humidity

    0% – 90% non-condensing

MAJOR OPTIONS SPECS
  • CAMERA

    5 megapixel front camera

Accessories

    Desktop Stand for DT524 series
    Desktop Stand

    Detachable, metal construction. MD-white color.

    Medical Grade AC Adapter with Power Cord
    Medical Grade AC Adapter with Power Cord

    Facilitates system operation and/or battery recharge.
