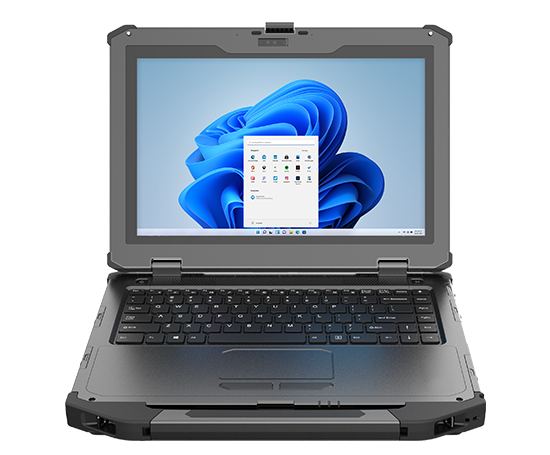

LT360PA Rugged Laptop

Compact, Purpose-Built for Mission-Critical Environments

The DT Research Rugged Laptops integrate touchscreens, Intel_® Core™ Ultra 5/7 processor, and full-size keyboard. They feature built-in Wi-Fi, optional IR front camera, 2D barcode scanner, smart card/ CAC reader, night vision screen, RFID, and other data capture options. These laptops offer advanced identity verification for secure data access. The optional night vision screen supports MIL-STD-3009 Class B NVIS mode, adding an extra layer of security for lightsensitive situations. Rated IP65 and compliant with MIL-STD-810H/461G, these powerful rugged laptops support a wide temperature range, ensuring reliable operation in harsh, mission-critical environments.

Product Configurator

Features

13.3" high-brightness touchscreen; digital pen support
Intel_® Core™ Ultra 5/7 processor
Microsoft_® Windows_® 11 IoT Enterprise operating system
Dual color backlit keyboard with multi-touch pad
Robust design with antimicrobial coating
One SSD slots, support up to 4TB with RAID 0/RAID 1
Hot-swappable batteries for 24/7 operation
Modular design to easily replace the batteries
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
MIL-STD-461G for EMI and EMC tolerance
Energy Star 8.0 certified

Major Options

4K (3840 x 2160) resolution screen
MIL-STD-3009 class B night vision screen
2 MP IR camera with privacy cover; supports Windows Hello
4G LTE
2D barcode scanner
CAC card reader
GPS module
RFID

Specifications

System

CPU

Intel_® Core™ Ultra 5 processor 225H, 14-core (up to 4.9 GHz)
Intel_® Core™ Ultra 7 processor 255H, 16-core (up to 5.1 GHz)
RAM

Ultra 5: 16GB LPDDR5
Ultra 7: 16GB to 32GB LPDDR5
Storage

256GB to 2TB SSD (supports removable SSD and RAID)
Operating System

Microsoft_® Windows_® 11 IoT Enterprise
NIST Compliance

NIST compliant BIOS available
Microphone

Built-in microphone array
Speaker

Built-in speaker
Buttons

1 x power button, 1 x 2D scanner or NVIS mode trigger button, 2 x brightness touch buttons, 2 x programmable touch buttons

Display

Screen Size

13.3" touchscreen
Resolution

1920 x 1080, or 3840 x 2160 (optional)
Luminance

Standard high-brightness (1000 nits)
Optional night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 20 nits
Optional night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits

Keyboard

Keys

QWERTY, full row of F1 to F12 function keys; Keys for Copilot / Windows shortcuts, media controls, screen brightness
Backlight

Yes
Touch Pad

Multi-touch

Wireless Network Interface

WLAN

Wi-Fi 802.11ax 2.4/5/6 Ghz three band
BT

5.4

I/O Ports

USB Port

2 x USB-A, 1 x latest USB/charging (optional: additional 1 x latest USB/charging)
Ethernet

1 x 10/100/1000 MB Base-T RJ45 LAN (optional: additional 1 x RJ45)
Audio Jack

1 (3.5 mm)
HDMI-out

1
24-pin Fischer Connector (Optional)

1
SFP Connector (Optional)

1
DC-In

1
SD Card Reader

1
Nano SIM Card Slot

1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100-240V AC; Output: 19V, 230W
Battery Pack

2 x hot-swappable battery (11.4V, 5400mAh) 2 x hot-swappable battery (11.4V, 8000mAh) (optional)
Enclosure

ABS + PC plastic and magnesium-aluminum alloy with antimicrobial coating
Kensington Lock

1
Dimensions (H x W x D)

1.22 x 13.66 x 9.84 in/31 x 347 x 250 mm
Weight

6.21lbs/2.82 kg (with battery)
Durability

IP65, MIL-STD-810H and MIL-STD-461G certified
Regulatory

CE, FCC Class B, CB, RCM, EPEAT, Energy Star 8.0
Temperature

Operation: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F)
storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% to 90% non-condensing

MAJOR OPTION SPECS

Camera

2 MP IR camera with privacy cover; supports Windows Hello
Night Vision Screen

Luminance

Option 1: Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 class B compliant, providing clear readability of display with the naked eye in dark environments, does not interfere with NVGs
Option 2: Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 class B compliant, providing clear readability of display with NVGs in dark environments
Mobile Broadband

4G LTE
GNSS

GPS
Barcode Scanner

2D barcode scanner (reads 1D and 2D)
Smart Card/CAC Reader

Full slot (reads ISO 7816 T=0, T=1); 1.8/3/5V smart card
RFID Reader

Dual frequency(reads 125 KHz and 13.56 MHz credentials)

Accessories

Sealed IP68 USB Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Sealed IP68 BT Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Battery Charger Kit with AC Adapter and Power cord

Battery Charger Kits

Recharges battery pack "offline" without affecting tablet use.

Battery Pack

Hot-swappable, 60W or 90W.

MIL-STD-461G AC/DC Power Adapter

◆ Input Voltage: 100 to 240Vac; Output Voltage: 19V, 4.74A

◆ MIL STD 461G certified (Choice of North America, UK or EU power cord).

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
