313T/MD MEDICAL TABLET

Slim, Antimicrobial, ANSI/AAMI ES60601-1 Certified Tablet for Efficient Operations

The 313T/MD Medical Tablet features the integration of a brilliant 13.3" capacitive touch screen and a Intel^® Core™ i series processor within a slim, durable package. With built-in front/back cameras and Wi-Fi as well as optional barcode scanner, this robust tablet offers health professionals an effective tool to monitor, record and retrieve patient information. With its large, vivid display, the 313T/MD Medical Tablet shows a wide work area and detailed application interface to enhance user experience and workflow.

Product Configurator

Features

13.3” full-HD LCD display with capacitive touch, digital pen support
Intel^® Core™ i series processor
Microsoft^® Windows^® 10/11 IoT Enterprise or Ubuntu operating system
NIST compliant BIOS available
Built-in front and back cameras
ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
High capacity, hot-swappable battery pack

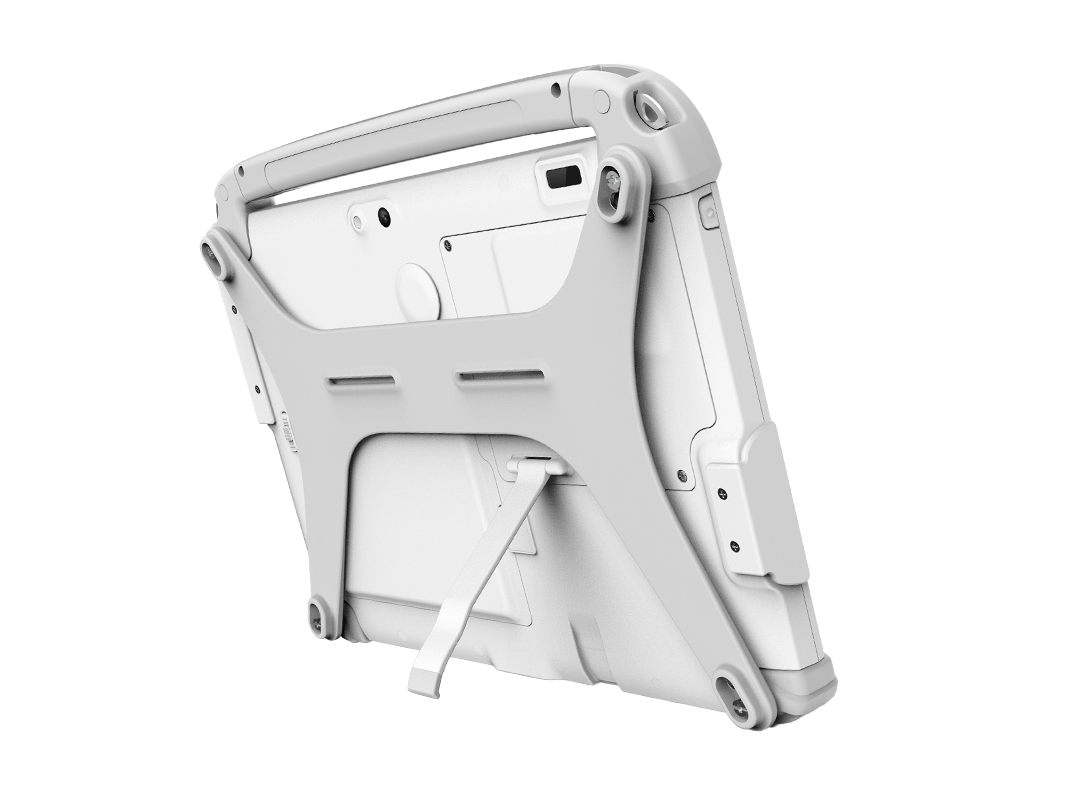

Built-in foldable tabletop stand and optional handle

Major Options

2D barcode scanner; reads 1D also
NFC/RFID Reader

Specifications

SYSTEM

CPU

Intel^® Core™ i5-1135G7, 4-Core, up to 4.2 GHz
Intel^® Core™ i7-1165G7, , 4-Core, up to 4.7 GHz
RAM

8GB to 32GB
Storage

256GB to 2TB Flash
Operating System

Microsoft^® Windows^® 10/11 IoT Enterprise or Ubuntu
NIST Compliance

NIST Compliant BIOS Available
Display

13.3” LED-backlit Touchscreen
Display Resolution

1920 x 1080
WLAN

Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
Control Switch and Buttons

1 Power Button, 1 Trigger Button, 3 Programmable Buttons
Microphone

Built-In Microphone
Speaker

Built-In Speaker
Cameras

5 MP Front Camera & 8 MP Back Camera

I/O INTERFACES

USB Port

1 x USB 3.0, 2 x USB 2.0
Headset Jack

1 (3.5 mm)
Ethernet Port

1 (RJ45)
HDMI-out

1
DC-In

1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 – 240V AC; Output: 19V DC, 3.42A
Battery Pack

Hot-Swappable Battery (5400mAh)
Enclosure

ABS + PC Plastic and Magnesium-Aluminum Alloy; Antimicrobial Enclosure
Dimensions (H x W x D)

10.1 x 13.2 x 0.8 in/256 x 335 x 21 mm
Weight

3.97 lbs/1.8 kg
Regulatory

FCC/IC, CE/CB, RCM, ANSI/AAMI ES60601-1
Temperature

Operation: 0°C ~ 40°C (32°F ~ 104°F); Storage: -50°C ~ 70°C (-58°F ~ 158°F)
Humidity

0% ~ 90% Non-Condensing

MAJOR OPTIONS SPECS

BARCODE SCANNER
2D Barcode Scanner (Reads 1D & 2D)

Accessories

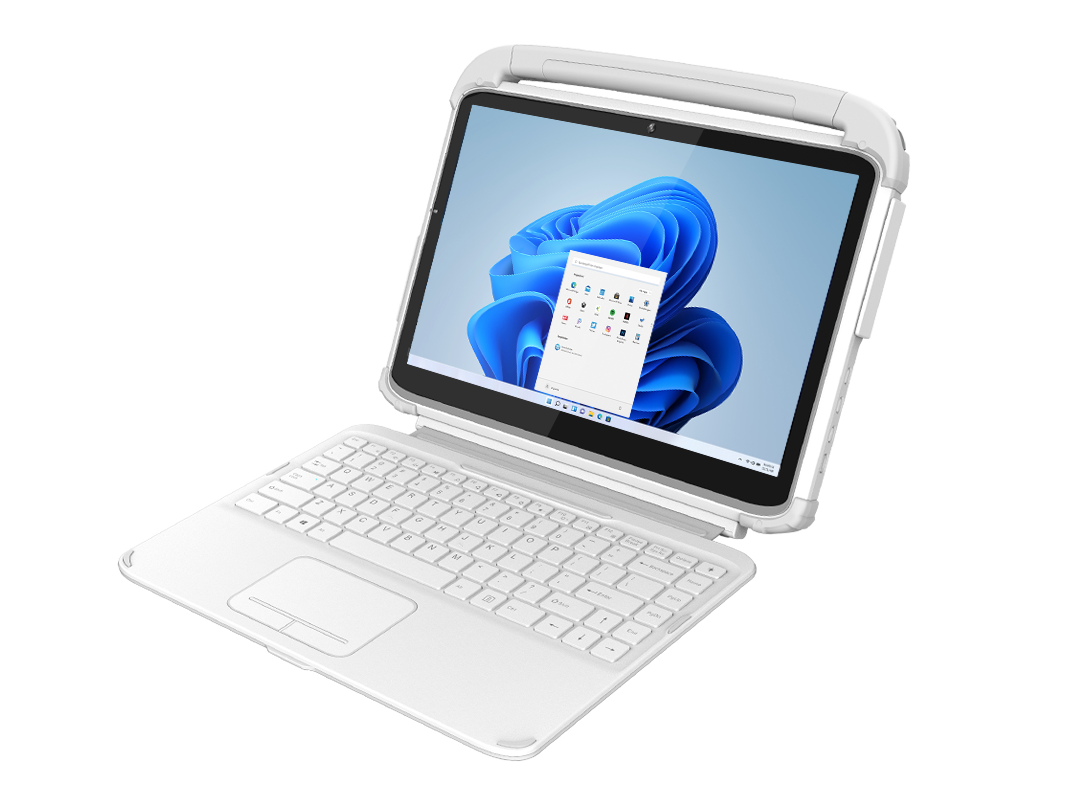

Docking Keyboard

With power and I/O ports; instantly pairs, ideal for 2-in-1 applications.

Slim Detachable Keyboard

Designed to connect to 300/MD tablet without switching and pairing.

Battery Gang Charger

Simultaneously charge 6 external batteries.

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the device Cradle. (Choice of North America, UK or EU power cord).

Battery Pack

Hot swappable, 60W.

Digital Pen

Dimension: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Keyboard Mounting Kit for Vehicle/Wall Mount Cradle

Designed to be attached with the Wall/Vehicle Mount Cradle. The Keyboard Mounting Kit can be folded up when not in use.

Automobile Power Adapter by LIND

Output voltage 65W/ 19V. Input: 11-16V DC.

10.1”/11.6”/13.3” Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
