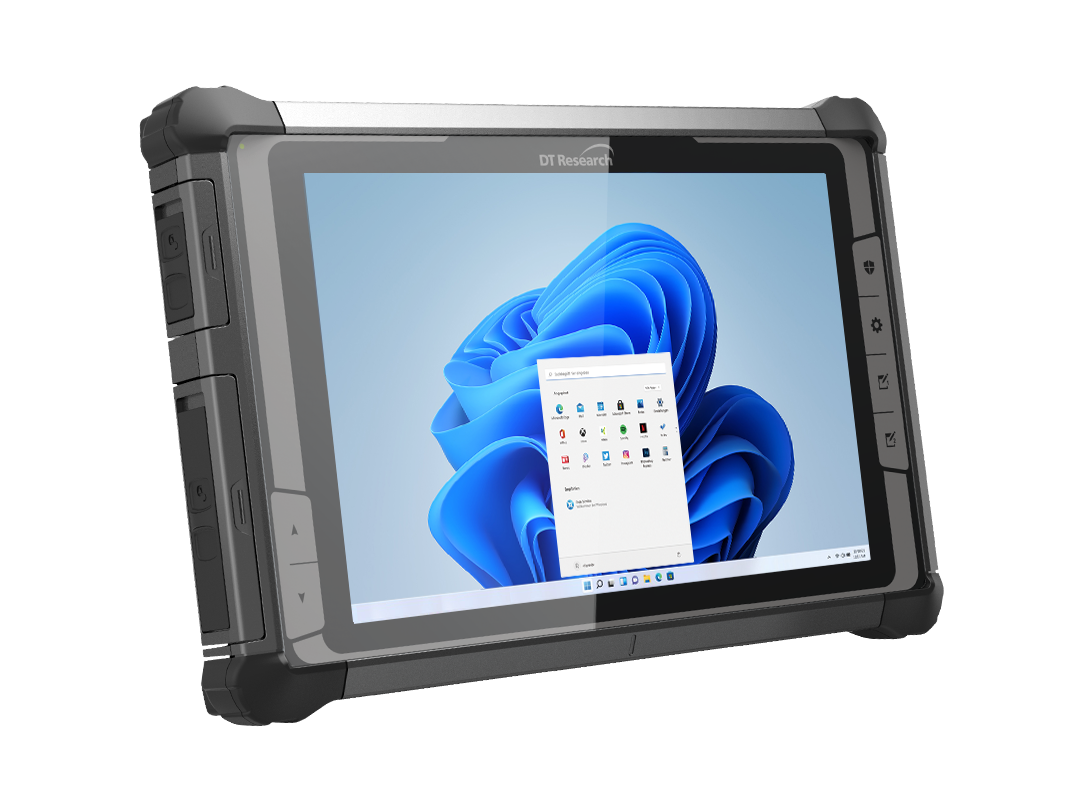

DT382GL-TR GNSS TABLET

Slim, Rugged, Multi-functional Wireless Computing

The DT Research DT382GL-TR Rugged GNSS Tablet features the integration of a large 8” capacitive touch screen, a powerful Intel® Pentium® Silver quad-core processor, and the positioning receiver within a compact, lightweight yet durable package. With Windows® operating system and network connection, this tablet is compatible with existing GIS software for mapping applications and brings together the advanced workflow for GIS data capture, accurate positioning, and data transmitting. Rated IP65 and MILSTD-810G, the DT382GL-TR Rugged GNSS Tablet provides real-time survey grade control points for field applications.

Product Configurator

Features

  • 8” capacitive touch screen, digital pen support
  • Intel® Pentium® Silver quad-core processor
  • Microsoft® Windows® 10 IoT Enterprise operating system
  • Built-in survey-grade dual-frequency GNSS module
  • IP65-rated for water and dust resistance
  • MIL-STD-810G for shock and vibration protection
  • HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
  • Hot swappable battery pack

Major Options

  • Back camera
  • Barcode scanner
  • NFC/ RFID reader
  • Long range Bluetooth
  • Mobile broadband; 4G LTE/AWS module

Specifications

System
  • CPU

    Intel® Pentium® Silver Quad-Core, 1.10GHz (up to 2.70GHz)

  • RAM

    8GB to 16GB

  • Storage

    256GB to 1TB flash

  • Operating System

    Microsoft® Windows® 10 IoT Enterprise

  • NIST Compliance

    NIST compliant BIOS available

  • Display

    8” LED-backlight, high-brightness (800 nits) screen with capacitive touch, outdoor viewable

  • Display Resolution

    1280 x 800

  • Network Interface

    Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE

  • Trusted Platform Module

    fTPM 2.0

  • Fan/ Fanless

    Fanless

  • Control Switch and Buttons

    1 power button, 2 trigger buttons, 2 brightness control buttons, 4 programmable buttons

  • Speaker

    Built-in speaker

I/O PORTS
  • USB Port

    USB 3.0 X 1, USB Type-C x 1 (for data transmitting and charging)

  • Audio Jack

    1 (3.5mm)

  • SD Slot

    1 micro SD card slot

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 20V DC, 3.25A

  • Battery Pack

    Hot Swappable battery, 7.2V, 6150mAh

  • Enclosure

    ABS + PC plastics

  • Dimensions (H x W x D)

    6.1 x 9.4 x 1.3 in/ 155 x 238 x 33 mm

  • Weight

    2.43 lbs/ 1.1 kg

  • Durability

    IP65, MIL-STD-810G

  • Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing


    Yes

  • Regulatory

    FCC Class B, CE, RoHS compliant

  • Temperature

    Operation: -10°C to 50°C (14°F to 122°F);
    Storage: -20°C to 60°C (-4°F to 140°F)

  • Humidity

    0% – 90% non-condensing

GNSS MODULE
  • Dual Frequency GNSS Module
  • Receiver Type

    GNSS L1 & L2 RTK with carrier phase

  • Signals Received

    GPS, GLONASS, BeiDou and Galileo

  • Channels

    372

  • GPS Sensitivity

    -142 dBm

  • SBAS Tracking

    3-channel, parallel tracking

  • Update Rate

    1 Hz standard, 10 Hz and 20 Hz optional

  • Accuracy
    (Horizontal)
      RMS (67%) 2DRMS (95%)
    RTK 10 mm + 1 ppm 20 mm + 2 ppm
    SBAS (WAAS) 0.3 m 0.6 m
    Autonomous, no SA 1.2 m 2.4 m
MAJOR OPTIONS SPECS
  • BARCODE SCANNER

    2D barcode scanner; reads 1D also

  • CAMERA

    8 megapixel back camera with auto focus, white balance, gain control and exposure control

  • NFC/RFID READER

    HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1

  • LONG RANGE BLUETOOTH

    Class 1 Bluetooth (1000 ft)

  • MOBILE BROADBAND

    4G LTE/AWS

Accessories

    Desktop Charging Cradle
    Desktop Charging Cradle

    Docking support with ports for Power, USB, HDMI output and Ethernet.

    Tablet Mount Cradle
    Tablet Mount Cradle

    Tablet storage and security with power, Ethernet pass-through, and USB ports; power supply not included.

    Battery Gang Charger
    Battery Gang Charger

    Simultaneously charge 6 external batteries.

    AC/DC Power Adapter with Power Cord
    AC/DC Power Adapter with Power Cord

    Facilitates Tablet operation or battery recharge. USB Type-C connector.

    Digital Pen
    Digital Pen

    Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

    High Capacity Battery Pack
    Pole/Vehicle Mount Cradle

    Provides secure placement of the Rugged Tablet on VESA-compliant stands, brackets, and arms.
