362MD MEDICAL TABLET

Compact, Antimicrobial, UL60601-1 Certified Tablet for Efficient Operations

The 362MD handheld Medical Tablet features the integration of a brilliant 6" capacitive touch screen and an energy-efficient Intel® processor within a compact, lightweight, durable package. With built-in smart card reader, back camera, Wi-Fi, Bluetooth as well as optional data capture modules, this rugged medical tablet offers health professionals an effective tool to monitor, record and retrieve patient information.

Product Configurator

Features

  • 6” capacitive touch screen, digital pen support
  • Intel® Pentium® Silver quad-core processor
  • Microsoft® Windows® 10 IoT Enterprise or Ubuntu operating system
  • NIST compliant BIOS available
  • UL60601-1 certified with antimicrobial enclosure
  • IP65-rated for water and dust resistance
  • MIL-STD-810G for shock and vibration protection
  • Built-in back camera
  • Built-in smart card/CAC reader

Major Options

  • Single/dual frequency NFC/RFID reader
  • 2D barcode scanner; reads 1D also

Specifications

System
  • CPU

    Intel® Pentium® Silver Quad-Core, 1.10GHz (up to 2.70GHz)

  • RAM

    8GB

  • Storage

    256GB Flash

  • Operating System

    Microsoft® Windows® 10 IoT Enterprise or Ubuntu

  • NIST Compliance

    NIST compliant BIOS available

  • Display

    6” LED-backlight capacitive touch screen

  • Display Resolution

    720 x 1440

  • Network Interface

    Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE

  • Buttons

    1 power button, 2 trigger buttons

  • Camera

    8 megapixel back camera

I/O PORTS
  • USB Port

    USB Type-C x 1 (data transmitting and charging; data transmitting only available in one insertion direction)

  • Smart Card/CAC Reader

    Full slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 20V DC, 3A

  • Battery Pack

    Hot swappable battery, 3100mAh

  • Enclosure

    ABS + PC plastics; antimicrobial enclosure

  • Dimensions (H x W x D)

    7.6 x 3.7 x 1.2 in/ 192 x 95 x 31 mm

  • Weight

    1.1 lbs/ 485 g

  • Durability

    IP65, MIL-STD-810G

  • Regulatory

    FCC Class B, UL60601-1, CE, RoHS compliant

  • Temperature

    Operation: -10°C to 50°C (14°F to 122°F );
    Storage: -20°C to 60°C (-4°F to 140°F)

  • Humidity

    0% – 90% non-condensing

MAJOR OPTIONS SPECS
  • BARCODE SCANNER

    2D barcode scanner; reads 1D also

  • NFC/RFID READER

    HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1, or dual frequency, reads both 125KHz and 13.56MHz credentials

Accessories

    Digital Pen
    Digital Pen

    Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

    Desktop Charging Cradle
    Desktop Charging Cradle

    Charge one 362 tablet and a battery pack; ports for Power, USB, and Ethernet.

    Battery Packs
    Battery Pack

    3100mAh battery pack.

    AC/DC Power Adapter with Power Cord
    AC/DC Power Adapter with Power Cord

    Facilitates Tablet operation or battery recharge. USB Type-C connector.

    Battery Holster
    3-Slot Battery Holster

    Supplies power to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).

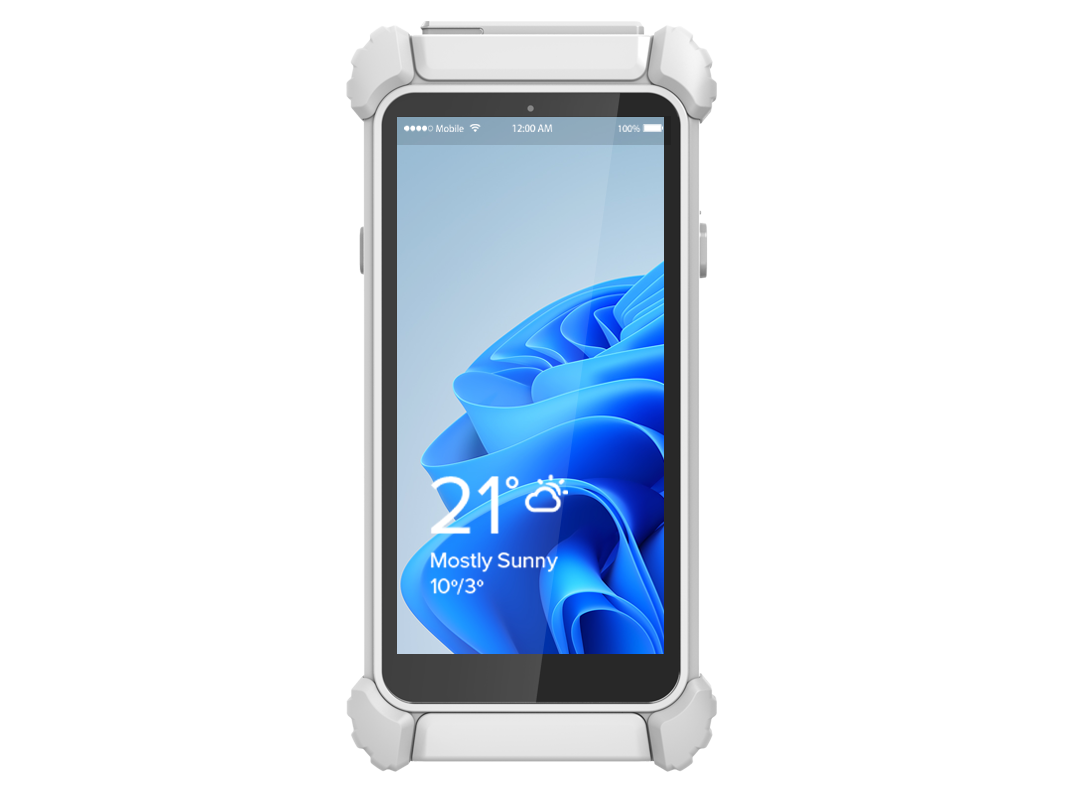

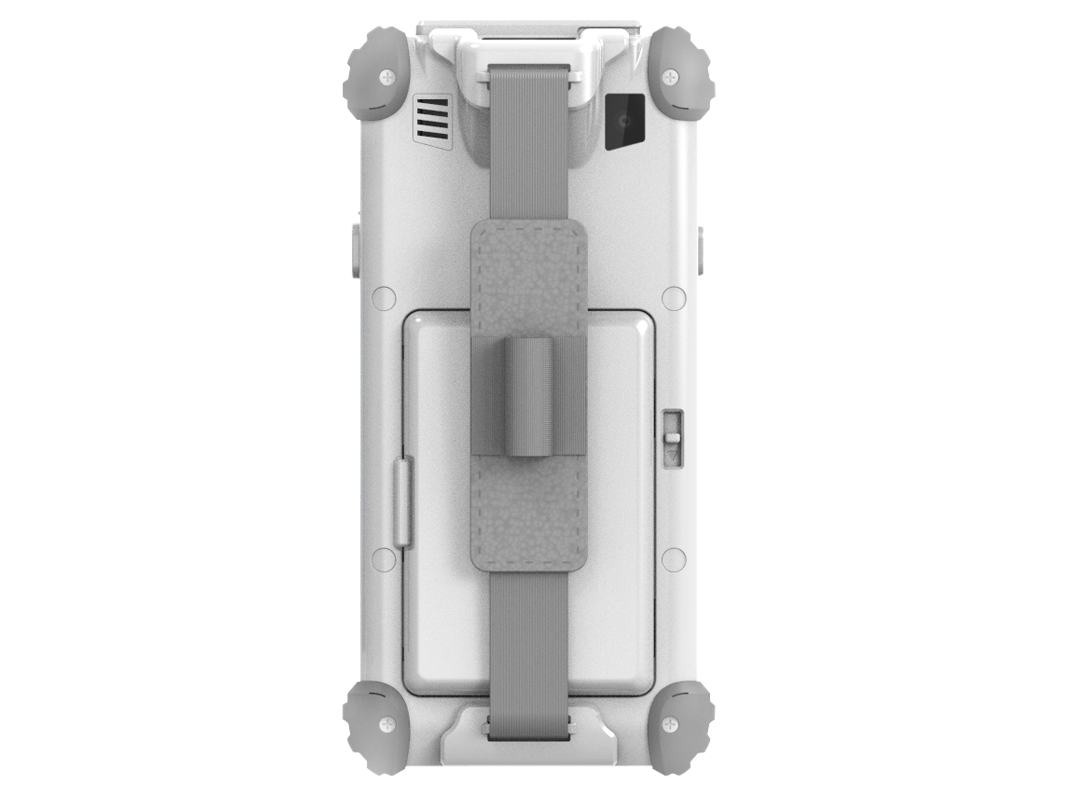

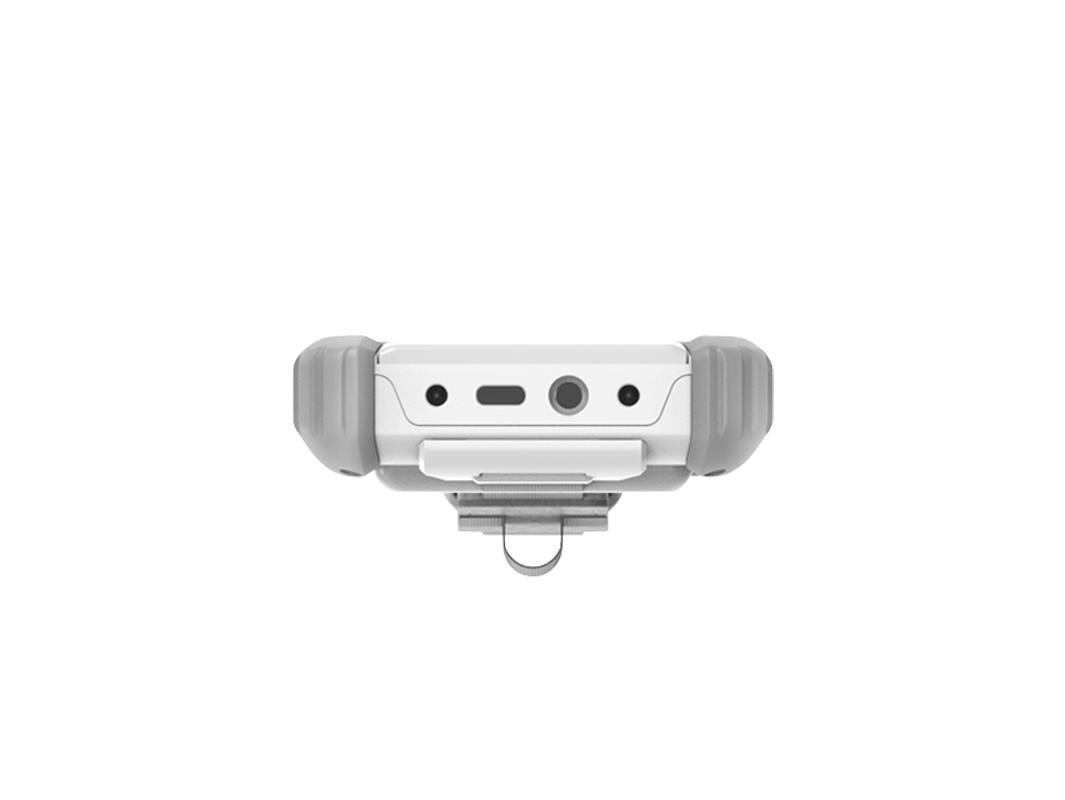

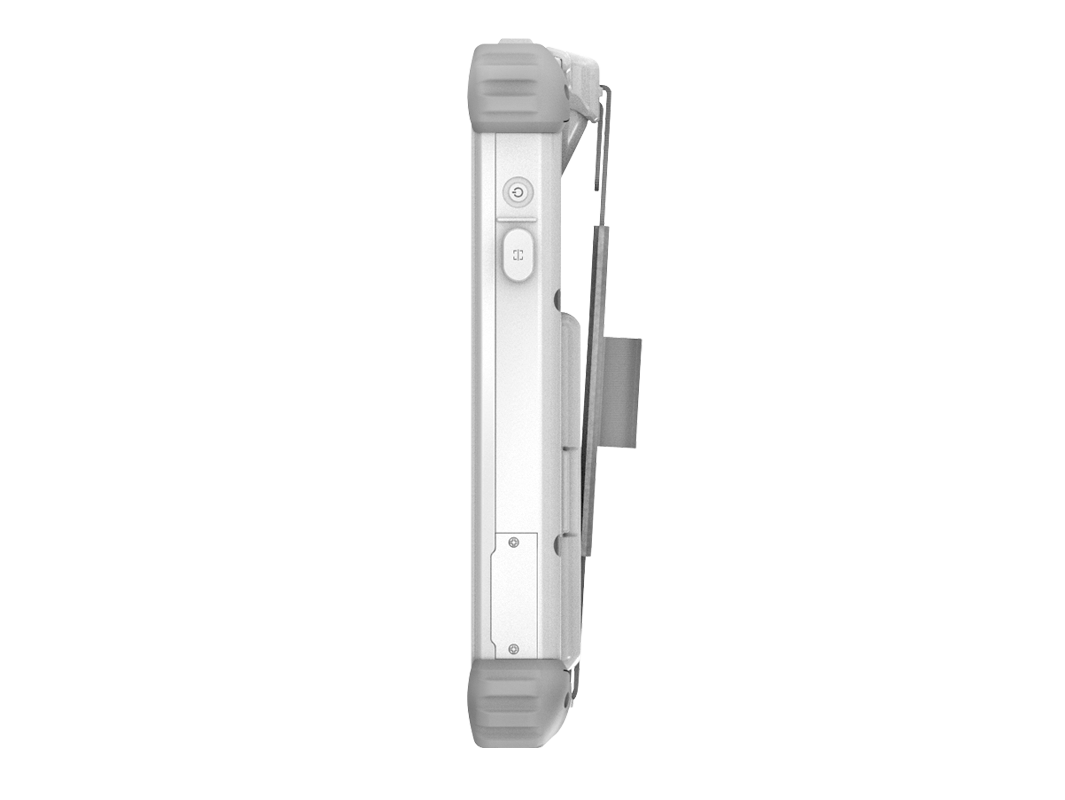

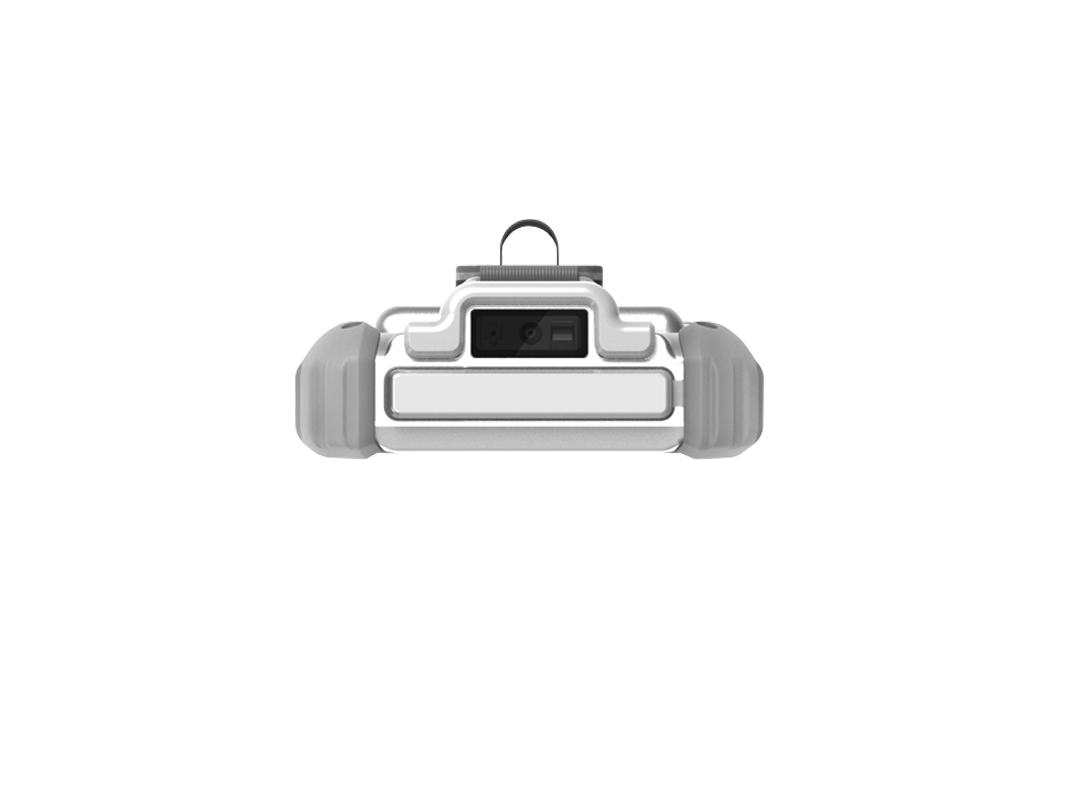

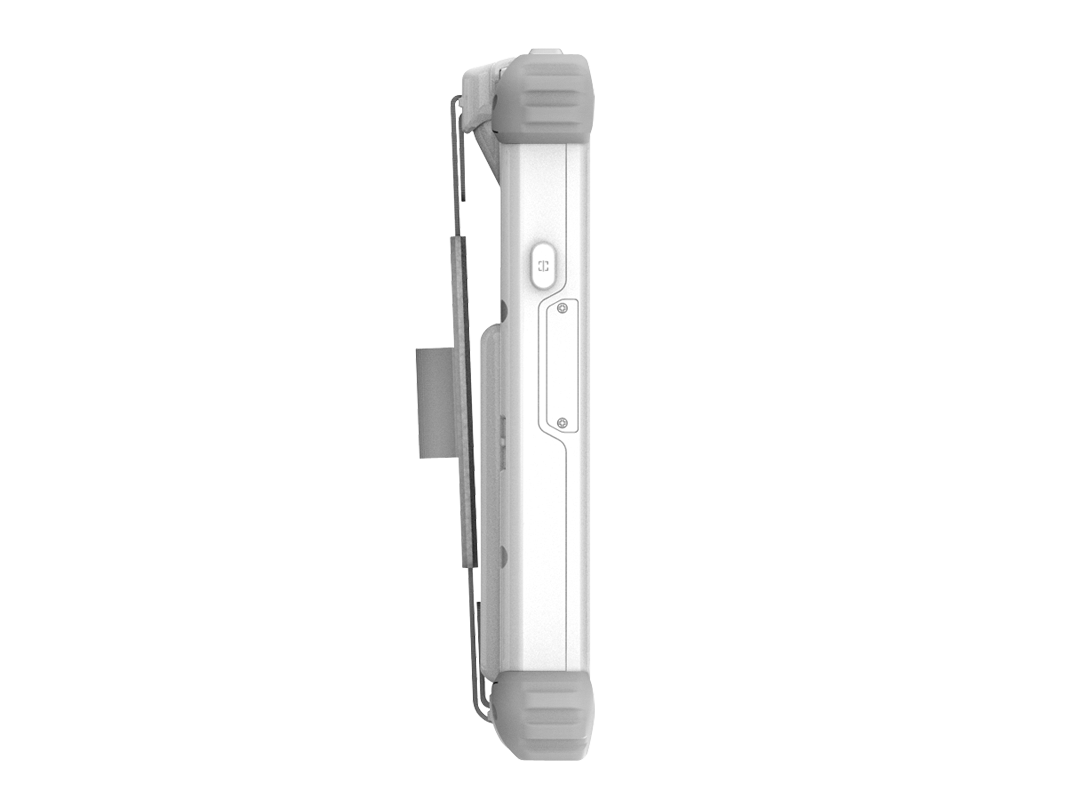

Gallery
