DT340T RUGGED 2-IN-1 TABLET

Slim, Rugged, Multi-functional Wireless Computing

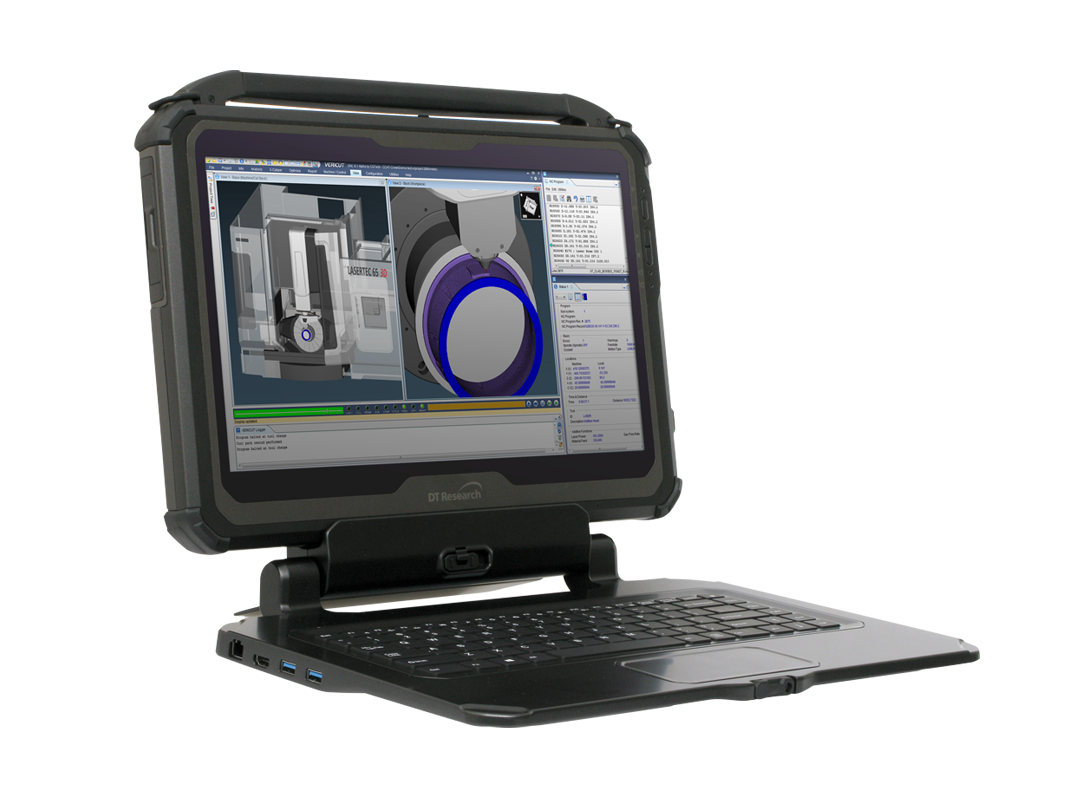

The DT340T Rugged Tablet features the integration of a brilliant 14” capacitive touch screen and high performance, energy-efficient Intel_® 8_th Generation Core™ i quad-core processor within a slim, lightweight, durable package. With built-in smart card/CAC reader, Wi-Fi and Bluetooth, this tablet offers seamless information capture for instant transmission in the field and in the office. With its large, vivid display and optional NVIDIA GeForce_® graphic card, this Rugged Tablet supports a wider working area and detailed application interface along with higher image and video processing. The MIL-STD-810G and IP ratings also make this tablet stand up to real world use for mission critical applications.

Product Configurator

Features

Intel_® 8_th Generation Core™ i5 or i7 quad-core processor; high performance with low power consumption
14" Full-HD, high-brightness (1,000 nits) LCD display with capacitive touch, outdoor viewable
Microsoft^® Windows^® 10 IoT Enterprise operating system
NIST compliant BIOS available
Dual high-capacity, hot-swappable battery packs; up to 180w
Built-in smart card/CAC reader (full-slot)
IP65-rated for water and dust resistance
MIL-STD-810G for shock and vibration protection
Easy-to-open I/O port caps (patented)
Foldable tabletop stand

Major Options

NVIDIA GeForce_® GTX 1050 graphic card option; ideal for defense, medical imaging, aerospace applications
U-blox M8 GNSS module (either GNSS module or graphic card)
4G LTE/AWS

Specifications

System

CPU

Intel_® Core™ i5-8250U, Quad-Core, 1.6GHz (up to 3.4GHz)
Intel_® Core™ i7-8550U, Quad-Core, 1.8GHz (up to 4.0GHz)
RAM

8GB to 64GB
Storage

256GB to 2TB flash
Operating System

Microsoft_® Windows_® 10 IoT Enterprise, 64bit
NIST Compliance

NIST compliant BIOS available
Display

14” LED-backlight, high-brightness (1000 nits) screen with capacitive multi-touch, outdoor viewable
Display Resolution

1920 x 1080
Network Interface

Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE
Control Switch and Buttons

1 power button, 2 programmable buttons
Indicator

1 power/ battery status LED
Microphone

Built-in microphone with DSP for real-time video
Speaker

Built-in speaker

I/O PORTS

HDMI

1
USB Port

USB 3.0 x 1 and USB 2.0 x 2
Headset Jack

1
DC-in

1
Ethernet

RJ45 connector for Ethernet x 1
Smart Card/CAC Reader

Full-slot, Reads ISO 7816 T=0, T=1; 1.8/3/5V smart card

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 – 240V AC; Output: 19V DC, 6.31A
Battery Pack

Hot swappable battery, 11.4V, 5400mAh X 2
Hot swappable battery, 11.4V, 8000mAh (optional) X 2
Enclosure

ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D)

9.6 x 13.8 x 1.16 in/ 244mm x 351mm x 29.5mm
Weight

6.38 lbs/ 2.9kg
Durability

IP65, MIL-STD-810G
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation*: -20°C to 60°C (-4°F to 140°F); tested under MIL-STD-810G method 501.6, Procedure II, and method 502.6, Procedure II
* For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F)

Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% – 90% non-condensing

MAJOR OPTIONS SPECS

GRAPHIC CARD

Integrated graphic card, NVIDIA GeForce_® GTX 1050 with 4GB VRAM
GNSS MODULE

U-blox M8 GNSS module with concurrent reception of GPS and GLONASS; industry leading -167dBm navigation sensitivity
*either with GNSS module or the graphic card
ANTENNA

Dual pass through antennas integrated in the docking cradle
MOBILE BROADBAND

4G LTE/AWS

Accessories

Docking Keyboard

With ports for Power, HDMI and USB; designed to connect to the DT Research Tablet, instantly pairs, ideal for 2-in-1 applications.

Tablet Mount Cradle

Offers Tablet storage and security with power, HDMI-out, COM, Ethernet pass-through, and USB ports. Power supply is not included.

Vehicle Mount Cradle

Supports DT340T and the Detachable Keyboard. The Cradle offers a lockable mechanism as well as USB, LAN, COM ports, a DC-in jack, and dual antenna connectors.
