592S/594S

Fully Battery Powered All-in-one Computer for Point-of-Care Applications
ANSI/AAMI ES60601-1 Certified

The 592S/594S Medical-Cart Computer, an All-in-one Medical Computer (Medical PC), integrates a 22” or 24” screen, powerful yet energy-efficient Intel® Core™ i processor computing platform, smart card reader and hot-swappable batteries (optional) in a compact, mountable package with antimicrobial coating to facilitate mobility for healthcare applications. With WLAN connectivity, this Medical-Cart Computer (Computer on Wheels/COWs and Workstation on Wheels/WOWs) is ideal for health professionals to manage information and eliminates the need to purchase costly medical cart batteries.

Product Configurator

Features

  • Hot-swappable batteries (optional, up to 3 batteries)
  • Intel® Core™ i5 processor; high performance operation with low power consumption
  • High contrast 21.5" or 23.6” capacitive touch screen
  • Elegant all-in-one, slim and space saving design
  • IP65 sealed front bezel and IPX1 back cover enclosure
  • ANSI/AAMI ES60601-1 certified
  • Antimicrobial enclosure
  • Dual HDMI video-out, up to 4K UHD resolution
  • Built-in 802.11ac dual band WLAN
  • VESA-mountable for flexibility in mounting and deployment

Major Options

  • Smart card reader

Specifications

System
  • CPU

    Intel® Core™ i5-1135G7, 4-Core, up to 4.7 GHz

  • RAM

    8GB to 16GB

  • Storage

    256GB to 512GB Flash

  • Operating System

    Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu

  • Display

    592S: 21.5" capacitive touch screen
    594S: 23.6" capacitive touch screen

  • Display Resolution

    1920 x 1080

  • Network Interface

    Ethernet 10/ 100/ 1000 MB Base-T LAN; Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band

  • Trusted Platform Module

    dTPM 1.2 and fTPM 2.0

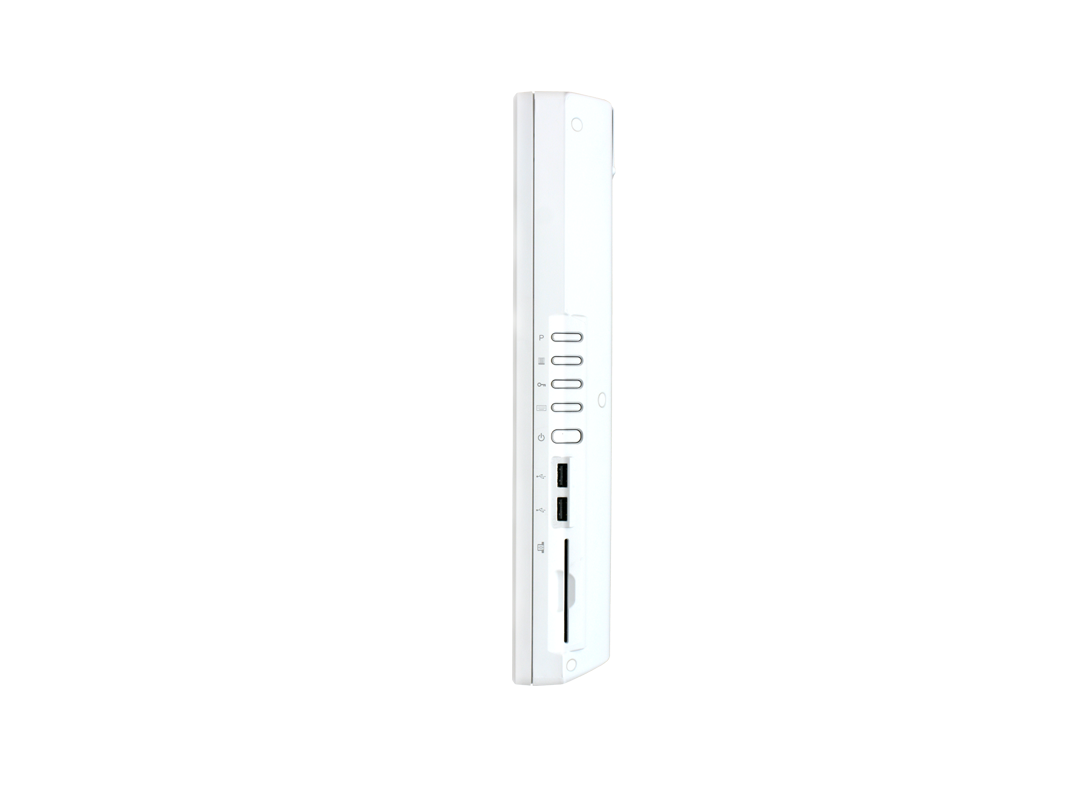

  • Control Buttons

    5 side buttons: 1 power and 4 functional buttons

  • Speaker

    Built-in speaker

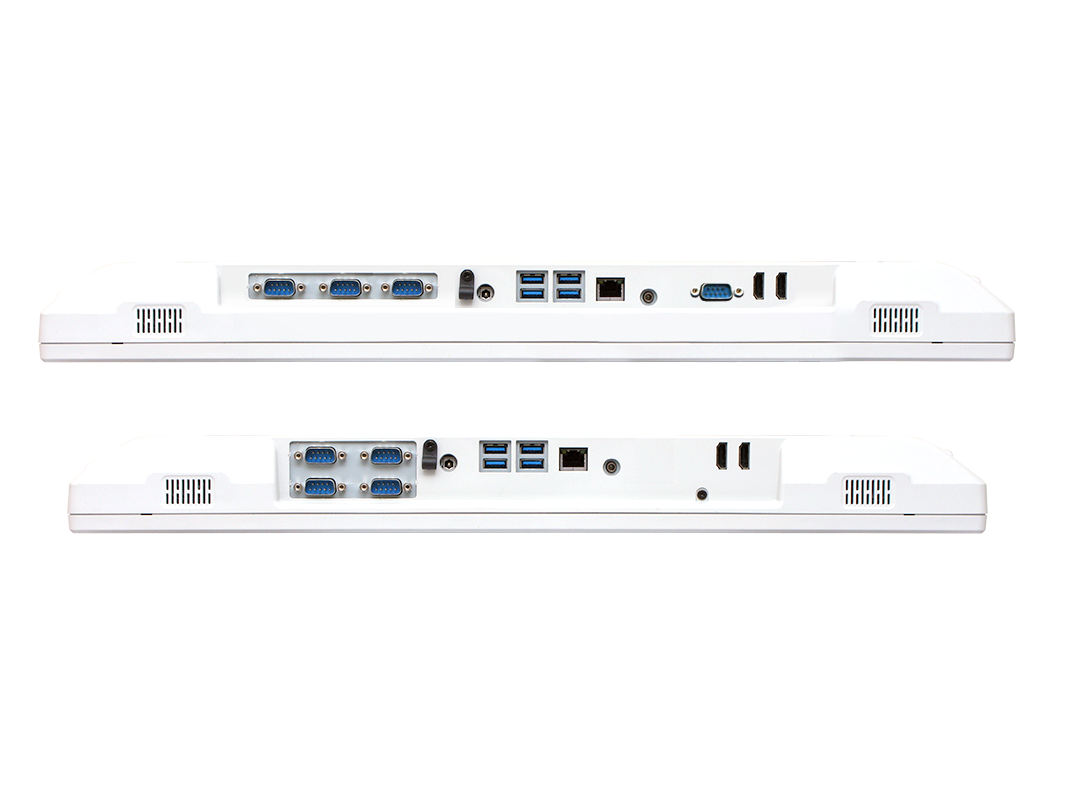

I/O INTERFACES
  • USB Port

    2 x USB 2.0, 4 x USB 3.0

  • COM Port

    4

  • HDMI-out

    2 (1.4a)

  • Microphone-in

    1

  • Audio-out

    1

  • DC-in

    1

  • Ethernet

    Ethernet: RJ45 connector for Ethernet x 1

MECHANICAL AND ENVIRONMENTAL
  • Fan/Fanless

    Fanless

  • Battery Pack

    Li-ion battery; 90Wh, 8250mAh x 3 (optional)

  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 19V DC, 6.31A

  • Enclosure

    ABS + PC plastics, antimicrobial enclosure

  • Dimensions (H x W x D)

    592S: 12.5 x 20.8 x 2.3 in/318 x 529 x 58 mm
    594S: 14.2 x 22.9 x 2.3 in/361 x 582 x 58 mm

  • Weight

    592S: 11lbs/5kg(Without battery)
    594S: 14.3lbs/6.5kg(Without battery)
    592S: 14.3lbs/6.5kg(With 3 batteries)
    594S: 18.7lbs/8.5kg(With 3 batteries)

  • Water Resistance

    Front panel: IP65
    Enclosure: IPX2

  • VESA-compliant mounting

    100 × 100 mm

  • Regulatory and Safety Certifications

    FCC/IC, CE/CB, RCM, CCC, ANSI/AAMI ES60601-1

  • Temperature

    Operation: 0°C – 40°C; Storage: -20°C – 60°C

  • Humidity

    0% – 90% non-condensing

MAJOR OPTIONS SPECS
  • SMART CARD READER
  • Reads ISO 7816 T=0, T=1 smart card, 1.8/ 3/ 5V smart card

Accessories

    Medical Grade AC Adapter with Power Cord
    Medical Grade AC Adapter with Power Cord

    Facilitates system operation and/or battery recharge.

    Hot-swappable Battery
    Hot-swappable Battery

    90W, 8250mAh battery.

    4-Bay Gang Charger
    6-Bay Gang Charger

    Available for charging up to six batteries.

    Desktop Stand for DT59X series
    Desktop Stand for Medical-Cart Computers

    VESA-compliant mounting with metal construction. MD-white color.

    Battery Holster
    3-Slot Battery Holster

    Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
