DT301Y-TR GNSS TABLET

Slim, Rugged, Multi-functional Wireless Computing

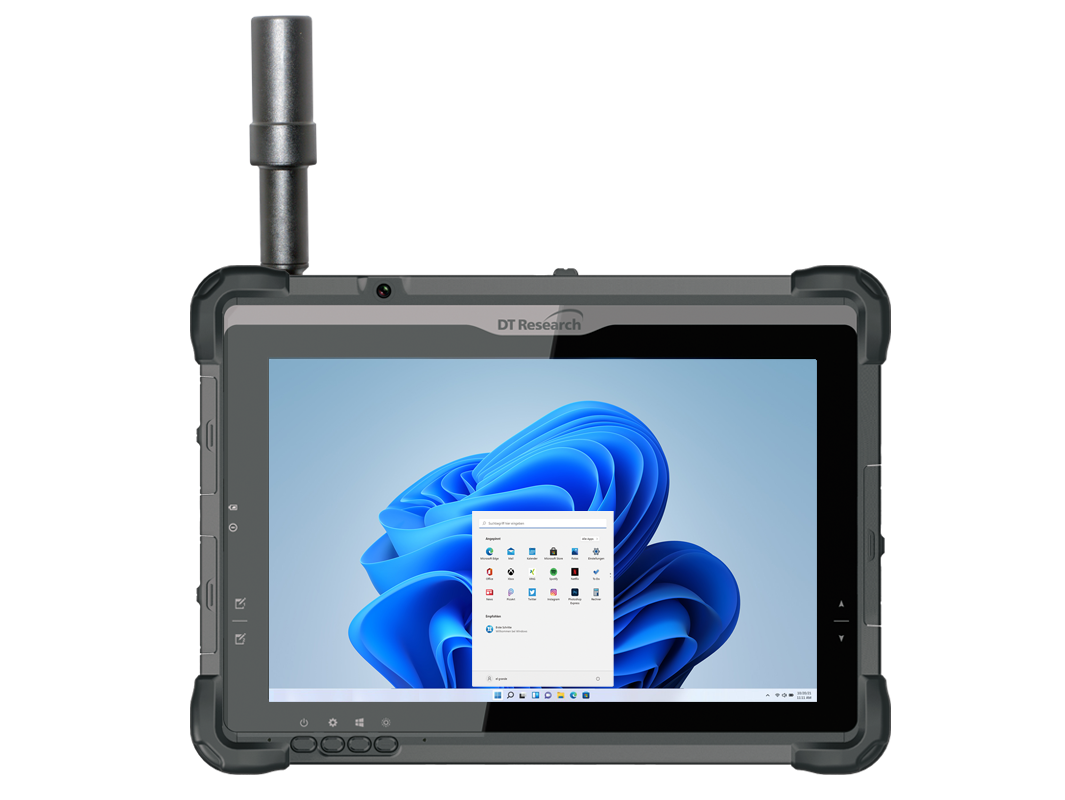

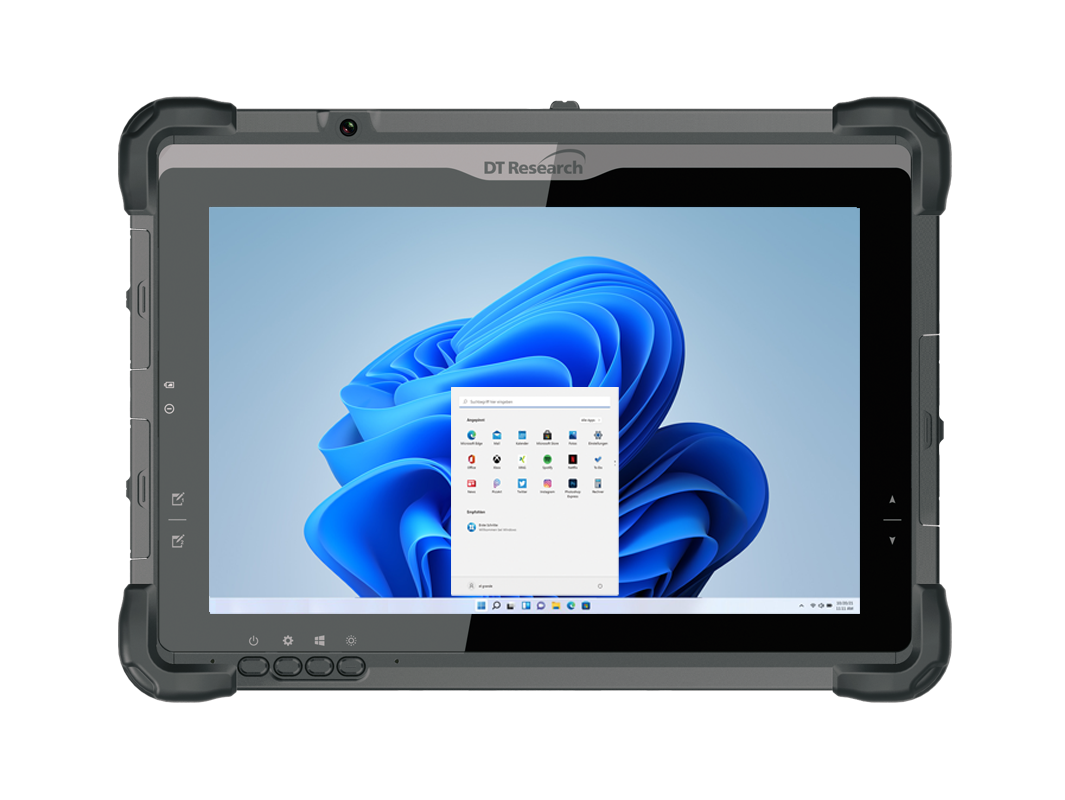

The DT Research DT301Y-TR Rugged GNSS Tablet features the integration of a large 10.1” capacitive touch screen, a powerful Intel® Core™ i processor, and the positioning receiver within a compact, lightweight yet durable package. With Windows® operating system and network connection, this tablet is compatible with existing GIS software for mapping applications and brings together the advanced workflow for GIS data capture, accurate positioning, and data transmitting. Rated IP65, MILSTD-810G and MIL-STD-461F, the DT Research DT301Y-TR Rugged GNSS Tablet provides real-time survey grade control points for field applications.

Product Configurator

Features

  • 10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
  • Intel® 8th Generation Core™ i5/i7 processor
  • Microsoft® Windows® 10 IoT Enterprise operating system
  • NIST compliant BIOS available
  • High capacity, hot-swappable battery pack
  • Built-in survey-grade dual-frequency GNSS module
  • Anti-microbial coating
  • IP65 rated, MIL-STD-810G and MIL-STD-461F certified
  • HERO (Hazard of Electromagnetic Radiation to Ordnance) certified

Major Options

  • Front and back cameras
  • 2D barcode scanner; reads 1D also
  • 4G LTE/AWS

Specifications

System
  • CPU

    Intel® Core™ i5-8250U, Quad-Core, 1.6GHz (up to 3.4GHz)
    Intel® Core™ i7-8550U, Quad-Core, 1.8GHz (up to 4.0GHz)

  • RAM

    8GB to 16GB

  • Storage

    256GB to 1TB flash

  • Operating System

    Microsoft® Windows® 10 IoT Enterprise

  • NIST Compliance

    NIST compliant BIOS available

  • Display

    10.1” LED-backlight, high-brightness (800 nits) screen with capacitive touch, outdoor viewable

  • Display Resolution

    1920 x 1200

  • Network Interface

    Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE

  • Control Switch and Buttons

    1 power button, 2 brightness control buttons, 5 programmable buttons

  • Microphone

    Built-in microphone

  • Speaker

    Built-in speaker

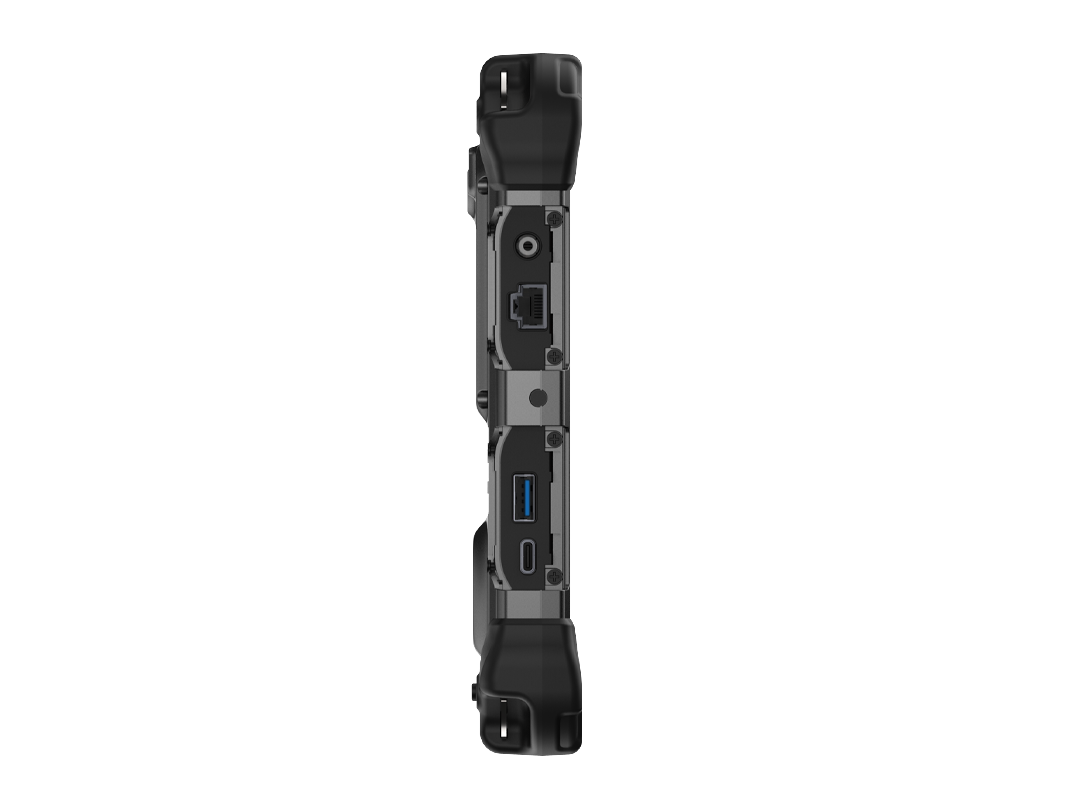

I/O PORTS
  • USB Port

    USB 3.0 x 1, USB Type C x 1 (data transmitting and charging)

  • Headset Jack

    1 (3.5mm)

  • Smart Card/CAC Reader

    Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card

  • Ethernet

    Ethernet 10/ 100/ 1000MB Base-T LAN

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 20V DC, 3.25A

  • Battery Pack

    Hot swappable battery, 11.4V, 5400mAh
    Hot swappable battery, 11.4V, 8000mAh (optional)

  • Enclosure

    ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating

  • Dimensions (H x W x D)

    7.8 x 11 x 0.86 in/ 198 x 280 x 21.9 mm

  • Weight

    3.1 lbs/ 1.4 kg

  • Durability

    IP65, MIL-STD-810G and MIL-STD-461F certified

  • Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing


    Yes

  • Regulatory

    FCC Class B, CE, RoHS compliant

  • Temperature

    Operation*: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F)
    Storage: -55°C to 70°C (-67°F to 158°F)
    * For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F)

  • Humidity

    0% – 90% non-condensing

GNSS MODULE
  • Dual Frequency GNSS Module
  • Receiver Type

    GNSS L1 & L2 RTK with carrier phase

  • Signals Received

    GPS, GLONASS, BeiDou and Galileo

  • Channels

    372

  • GPS Sensitivity

    -142 dBm

  • SBAS Tracking

    3-channel, parallel tracking

  • Update Rate

    1 Hz standard, 10 Hz and 20 Hz optional

  • Accuracy
    (Horizontal)
      RMS (67%) 2DRMS (95%)
    RTK 10 mm + 1 ppm 20 mm + 2 ppm
    SBAS (WAAS) 0.3 m 0.6 m
    Autonomous, no SA 1.2 m 2.4 m
MAJOR OPTIONS SPECS
  • BARCODE SCANNER

    2D barcode scanner; reads 1D also

  • CAMERA

    2 megapixel front camera, and 8 megapixel back camera with auto focus, white balance, gain control, and exposure control

  • MOBILE BROADBAND

    4G LTE/AWS

Accessories

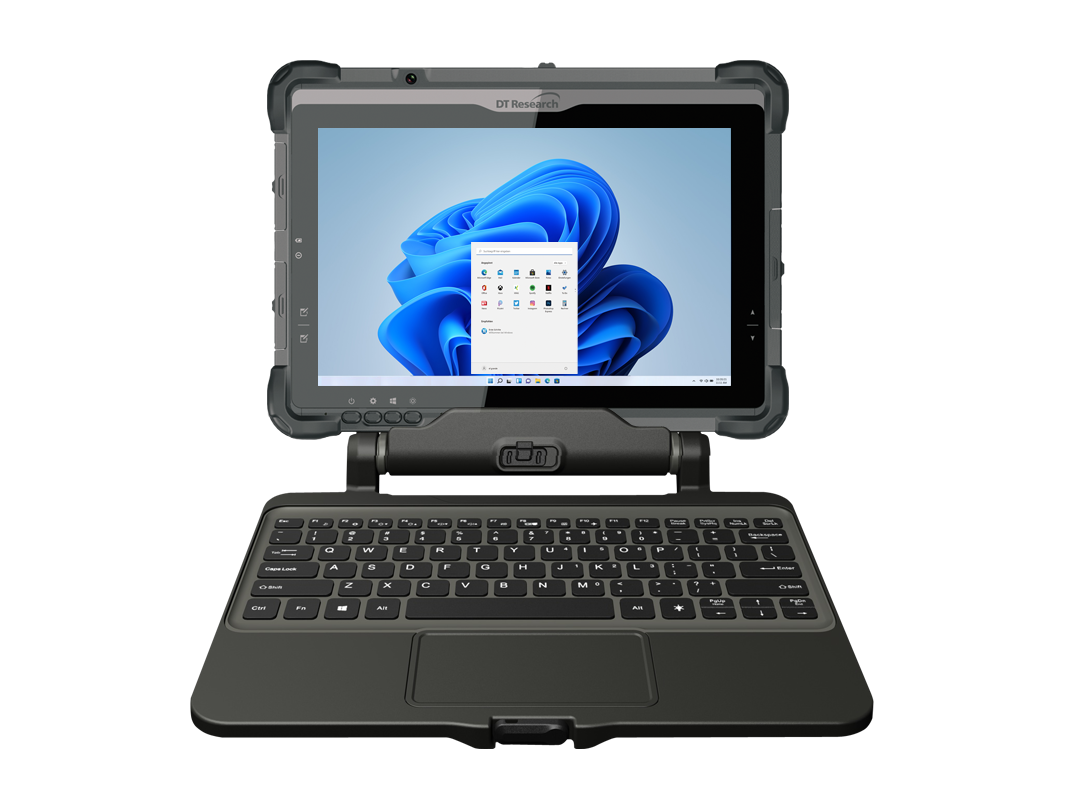

    Detachable Keyboard
    Docking Keyboard

    With power and I/O ports; instantly pairs, ideal for 2-in-1 applications.

    Battery Gang Charger
    Battery Gang Charger

    Simultaneously charge 6 external batteries.

    Digital Pen
    Digital Pen

    Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

    Desktop Charging Cradle
    Desktop Charging Cradle

    Docking support with ports for Power, USB, HDMI output and Ethernet.

    Tablet Mount Cradle
    Tablet Mount Cradle

    Offers Tablet storage and security with power supply and I/O ports.

    Battery Charger Kit with AC Adapter and Power cord
    Battery Charger Kit with AC Adapter and Power cord

    Recharges battery pack "offline" without affecting tablet use.

    AC/DC Power Adapter with Power Cord
    AC/DC Power Adapter with Power Cord

    Facilitates Tablet operation or battery recharge. USB Type-C connector.

    Shoulder Strap for Tablets
    Shoulder Strap for Tablets

    Padded for comfort, provides convenient mobile operation, strap is adjustable and can be attached to the Rubber Grips.

    Carrying Case
    Carrying Case

    Open-to-use design with foldable tabletop stand. Made of 1680 denier nylon fiber with water-repellent coating.

    High Capacity Battery Pack
    High Capacity Battery Pack

    Hot swappable, 60W or 90W.
