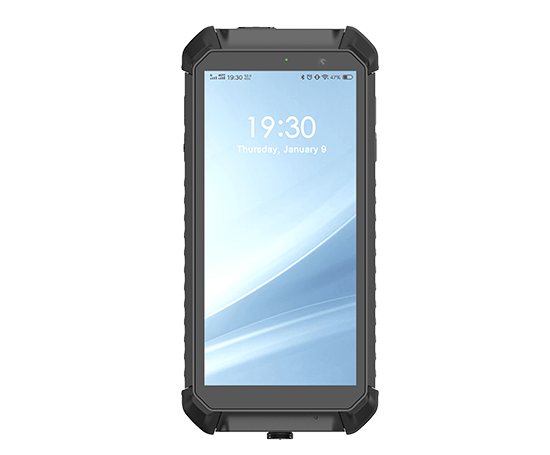

DA361ND Rugged Tablet
Slim, Rugged, Multi-functional Wireless Computing
The DA361ND Handheld Rugged Tablet features a 6" LED 850 nits touchscreen and a Qualcomm® 8-core processor in a slim, lightweight, and durable package. The DA381ND is engineered for durability and reliability to ensure dependable performance even in harsh environments, offering an optional Fischer MiniMax connector. With IP65 and MIL-STD-810H certifications, the DA361ND ensures reliable performance in demanding, mission-critical environments.
Features
- 6" LED 850 nits touchscreen; capacitive stylus support
- Qualcomm® 8-core processor
- Android 13 operating system
- Hot-swappable battery pack
- IP65-rated for water and dust resistance
- MIL-STD-810H for shock and vibration protection
- Wide operating temperature range
Major Options

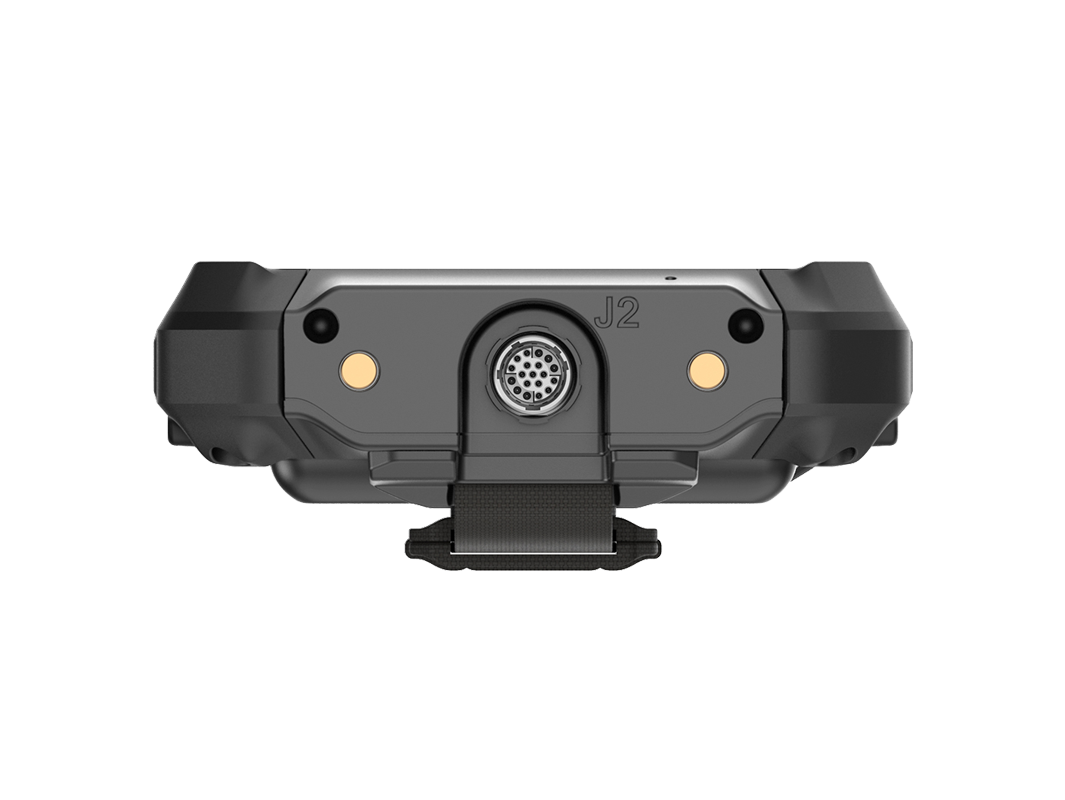

- Waterproof 24-pin Fischer MiniMax connector
Specifications
System
-
CPU
Qualcomm® 8-core (1.9 GHz to 2.7 GHz)
-
Storage and RAM
256GB Flash with 12GB RAM
-
Operating System
Android 13
-
Security Features
ARM® TrustZone® (built-in)
-
Display
6” LED 850 nits touchscreen
-
Display Resolution
1440 x 720
-
Speaker
Built-In speaker
-
Control Switch and Buttons
1 x power button; 1 x day/night vision switch; 2 x programmable buttons
Network Interface
-
WLAN
Wi-Fi 802.11ax, 2.4/5/6 GHz three band
-
BT
5.2
I/O ports
-
USB Port
1 x latest USB/charging
-
24-pin Fischer Minimax Connector
(Optional) Ethernet, USB-3.2 5G/USB2.0, and power 5-6A (in) and power 2A (out)/ground/URAT
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 15V DC, 3A
-
Battery Pack
23W Hot-swappable battery (7.6V, 3100mAh)
-
Enclosure
ABS + PC plastic and magnesium-aluminum alloy
-
Dimensions (H x W x D)
3.73 x 7.59 x 1.16 in/94.8 x 192.8 x 29.36 mm
-
Weight
0.99 lbs/0.45 kg
-
Durability
IP65 and MIL-STD-810H
-
Regulatory
CE, FCC Class B, and RoHS compliant
-
Temperature
Operation: -10°C to 50°C (14°F to 122°F); Storage: -55°C to 70°C (-67°F to 158°F)
-
Humidity
0% to 90% non-condensing
Accessories
Capacitive Stylus
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
6-Bay Battery Gang Charger
Multi-bay charger, capable of charging up to 6 battery packs simultaneously.
Battery Packs
3100mAh battery packs.

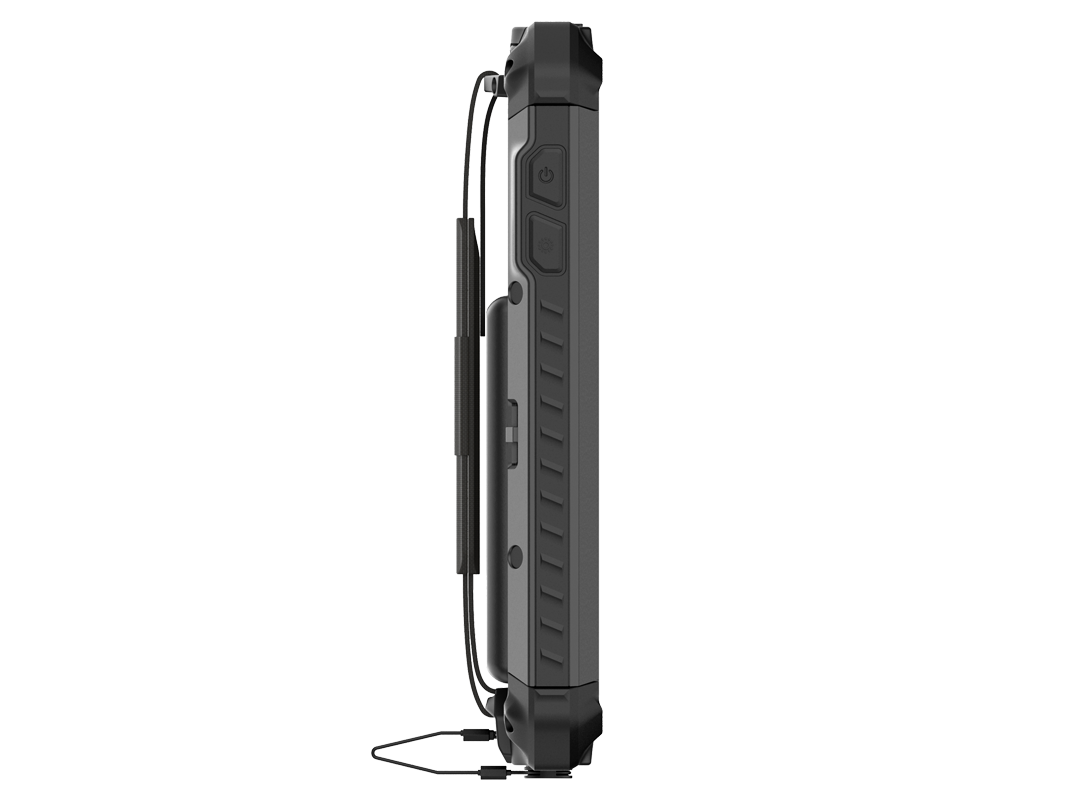

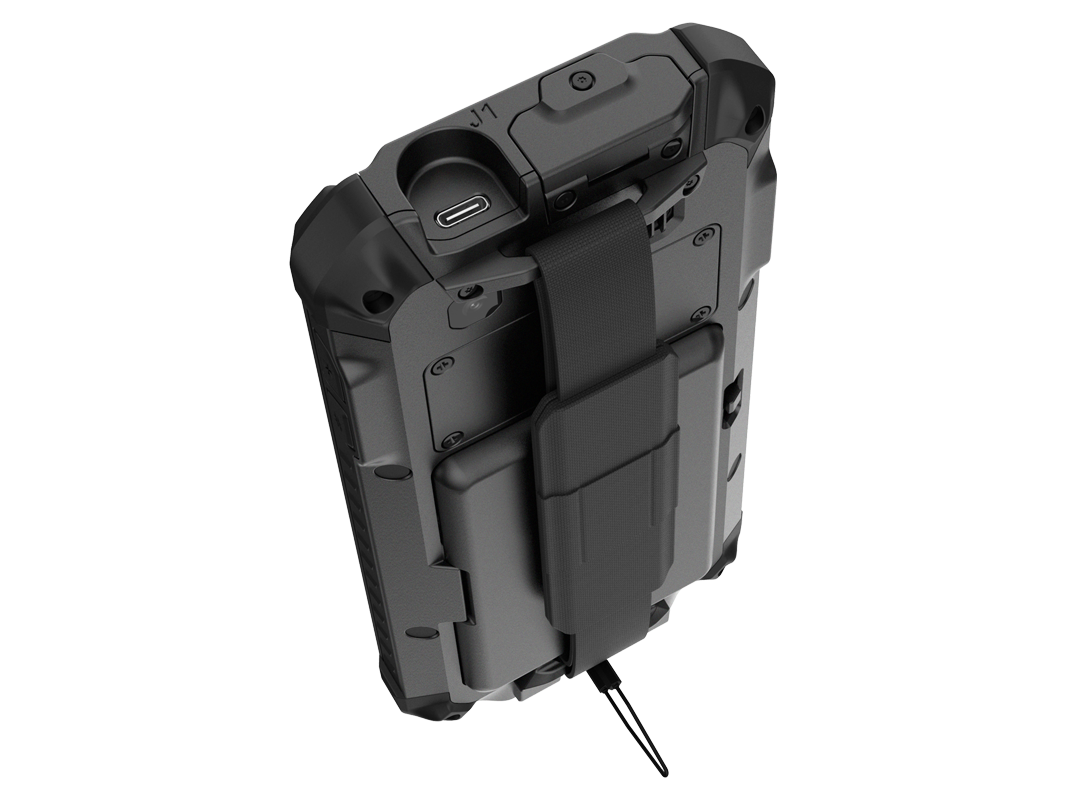

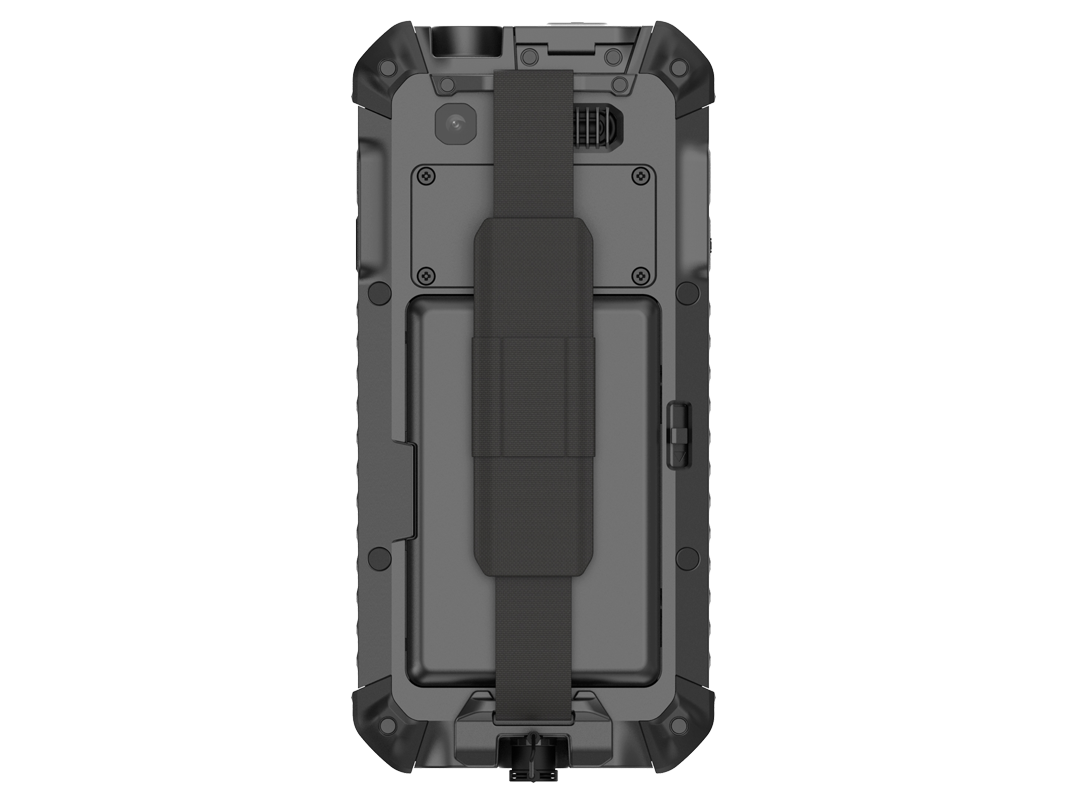

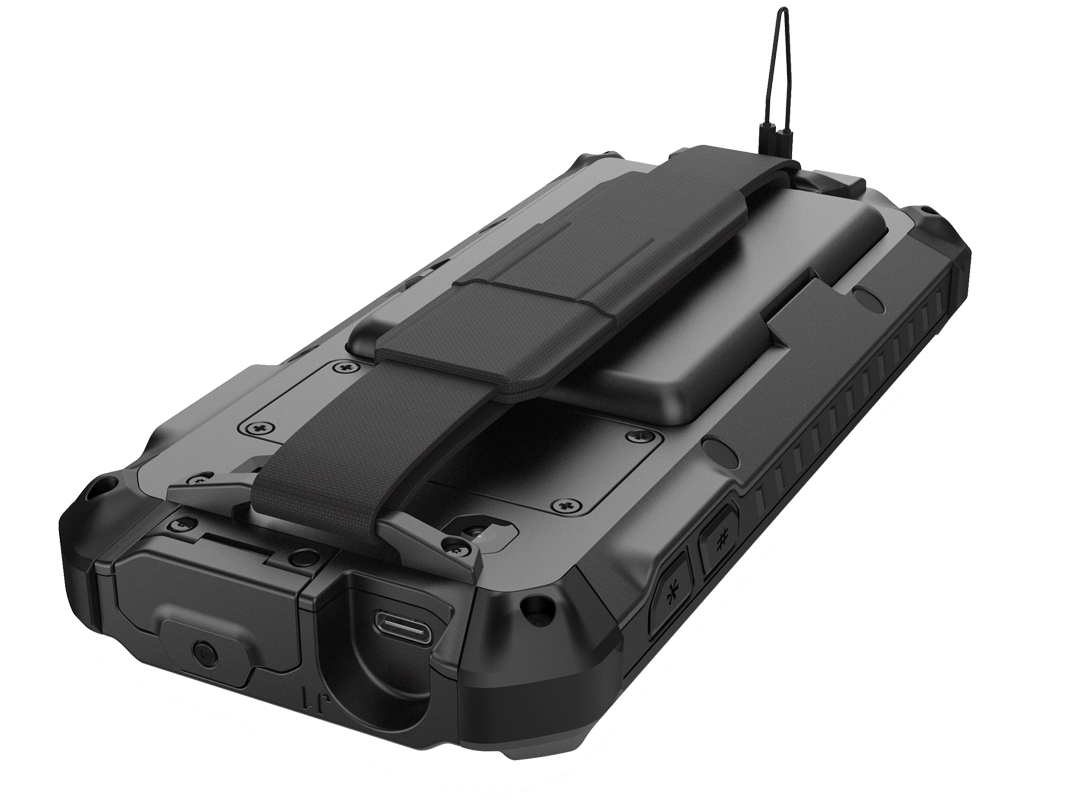

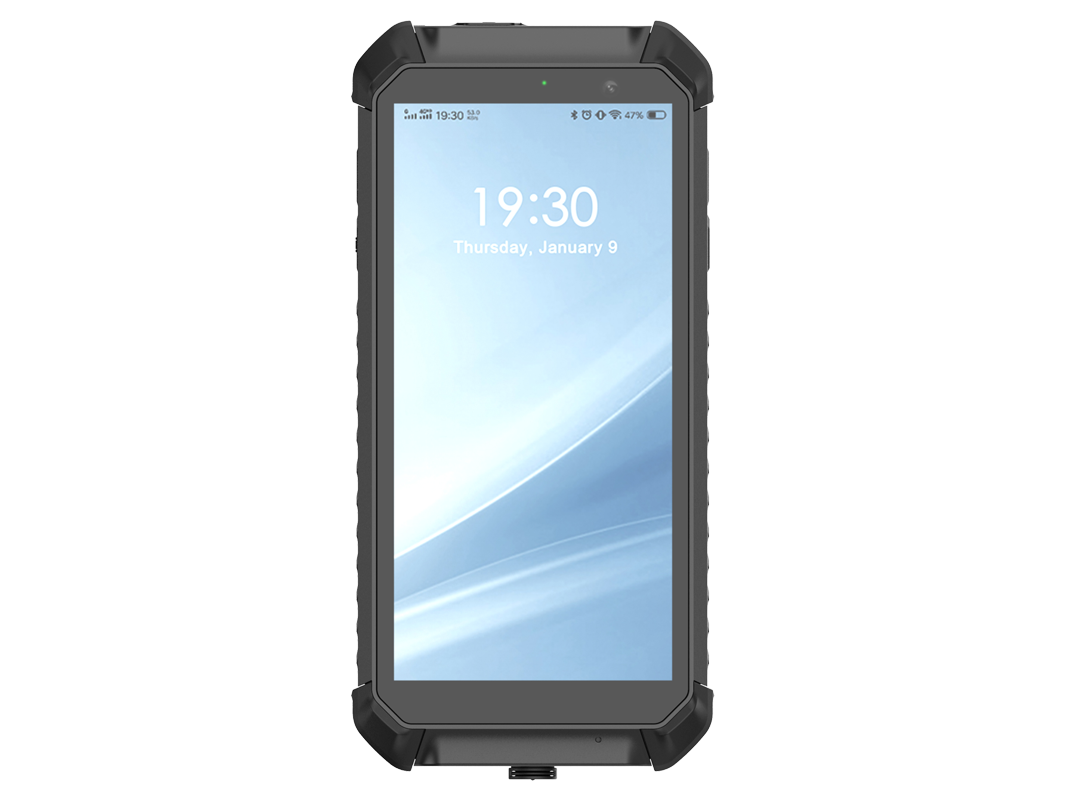

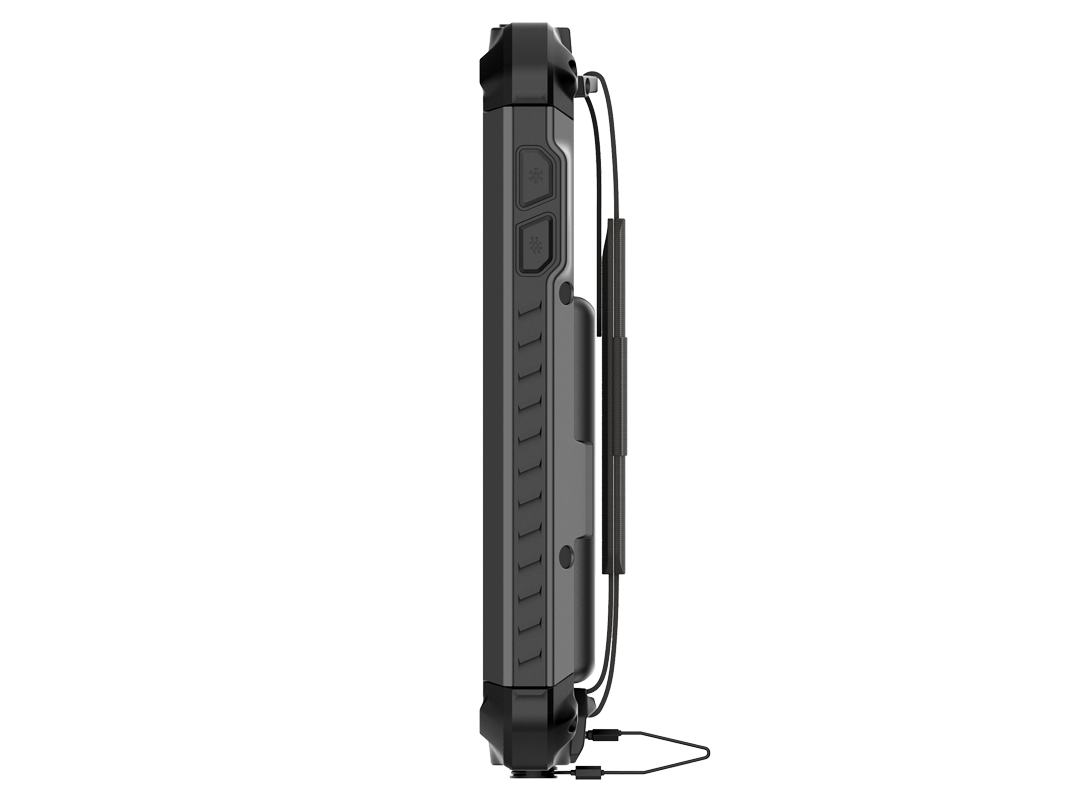

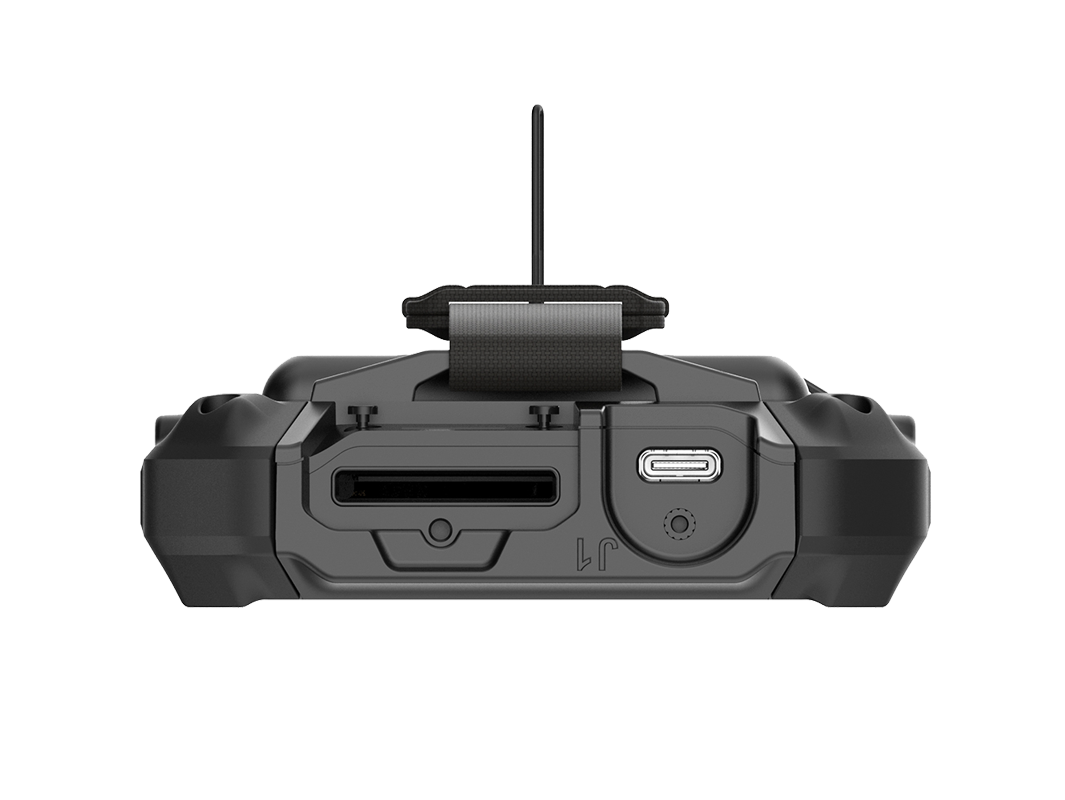

Gallery
