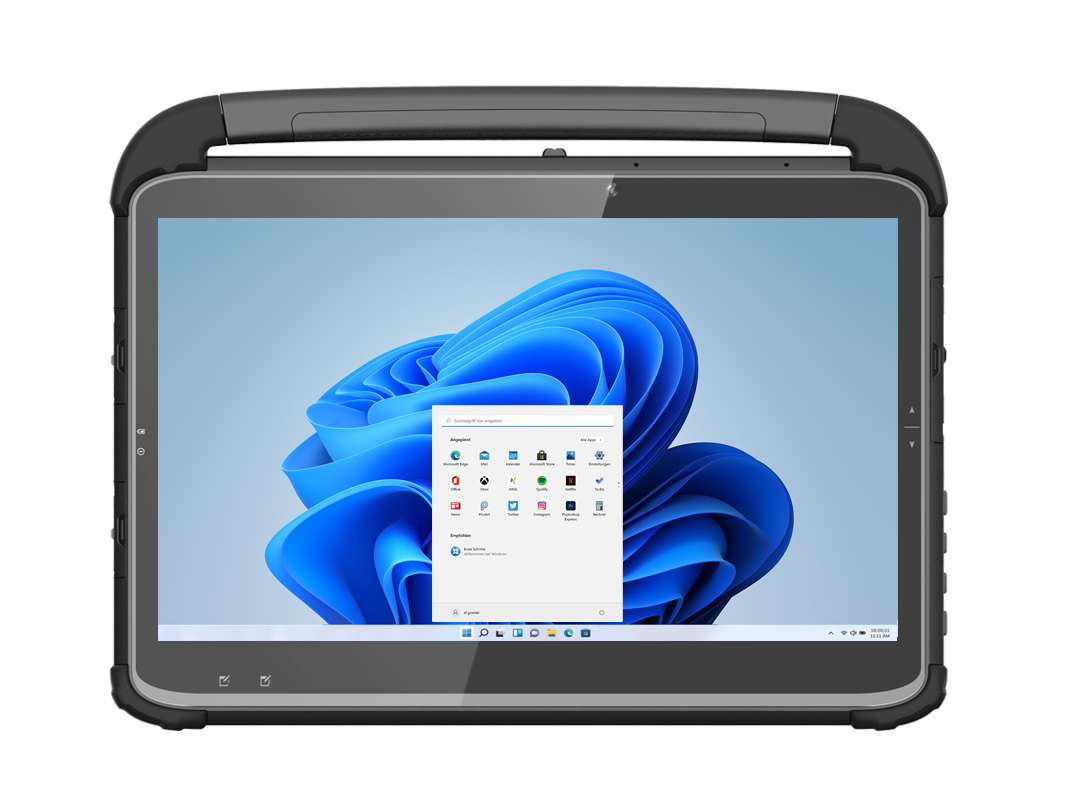

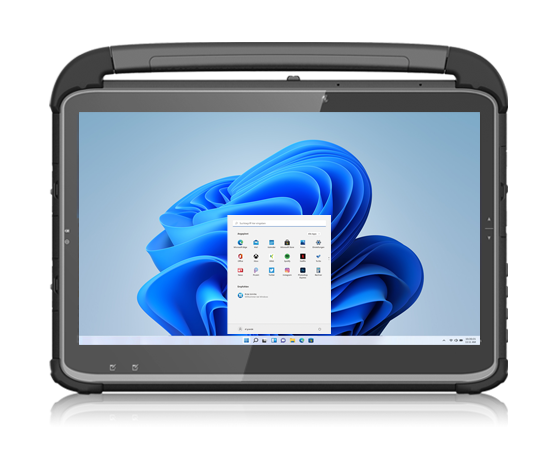

DT313YR RUGGED 2-IN-1 TABLET

Slim, Rugged, Multi-functional Wireless Computing

The DT313YR Rugged Tablet features the integration of a high brightness 13.3” capacitive touch screen and a high performance, energy-efficient Intel^® Core™ i processor within a slim, lightweight, durable package. With a built-in smart card/CAC reader and Wi-Fi as well as options for front/back cameras, barcode scanner, GNSS, and 4G connection, this rugged tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810H and HERO certified with wide temperature range, the DT313YR Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

13.3" high-brightness (1000 nits) LCD display with capacitive touch, outdoor viewable
Intel^® Core™ i processor
Microsoft^® Windows^® 10/11 IoT Enterprise operating system
NIST compliant BIOS available
Hot swappable battery pack
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
Built-in smart card/CAC reader

Major Options

Front and Back Cameras
Barcode Scanner
GPS Module
4G LTE/AWS

Specifications

SYSTEM

CPU

Intel^® Core™ i7-1355U, 10-Core, up to 5.0 GHz
Intel^® Core™ i5-1335U, 10-Core, up to 4.6 GHz
RAM

8GB to 32GB
Storage

256GB to 2TB Flash
Operating System

Microsoft^® Windows^® 10/11 IoT Enterprise
NIST Compliance

NIST Compliant BIOS Available
Display

13.3” LED-Backlit, High-Brightness (1000 nits) Touchscreen
Display Resolution

1920 x 1080
WLAN

Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
Microphone

Built-In Microphone
Speaker

Built-In Speaker

I/O INTERFACES

USB 3.0 Port

3 x USB 3.0, 1 x USB Type-C
Headset Jack

1 (3.5 mm)
Ethernet Port

1 x Ethernet 10/100/1000MB Base-T LAN
DC-In

1
Smart Card/ CAC Reader

Full Slot (reads ISO 7816 T=0, T=1); 1.8/3/5V Smart Card
Switches & Buttons

1 x Power Button, 2 x Brightness Buttons, 5 x Programmable Buttons

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100-240V AC; Output: 20V DC, 3.25A
Battery Pack

Hot-Swappable Battery (11.4V, 5400mAh)
Hot-Swappable Battery (11.4V, 8000mAh)(Optional)
Enclosure

ABS + PC Plastic and Magnesium-Aluminum Alloy
Dimensions (H x W x D)

10.1 x 13.2 x 0.8 in/256 x 335 x 21 mm
Weight

3.97 lbs/1.8 kg
Durability

IP65 and MIL-STD-810H Certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing

Yes
Regulatory

FCC Class B, CE, RoHS Compliant
Temperature

Operation*: -10°C ~ 60°C (14°F ~ 140°F)
Optional -30°C ~ 60°C (-22°F ~ 140°F)
Storage: -50°C ~ 70°C (-58°F ~ 158°F)
*For battery optimal functionality and performance, the recommended usage temperature range is from 0°C ~ 50°C (32°F ~ 122°F)
Humidity

0% ~ 90% Non-Condensing

MAJOR OPTIONS SPECS

CAMERA

2MP Front Camera & 8MP Back Camera
BARCODE SCANNER

2D Barcode Scanner (Reads 1D & 2D)
GNSS MODULE

U-blox M9N GNSS Module
MOBILE BROADBAND

4G LTE/AWS

Accessories

Docking Keyboard

With power and I/O ports; instantly pairs, ideal for 2-in-1 applications.

Battery Gang Charger

Simultaneously charge 6 external batteries.

AC/DC Power Adapter with Power Cord

Facilitates Tablet operation or battery recharge. USB Type-C connector.

Desktop Charging Cradle

With I/O ports supporting power, USB, HDMI, COM, and Ethernet.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Vehicle Mount Cradle

Supports DT313YR and the Detachable Keyboard. The Cradle offers a lockable mechanism as well as USB, LAN, COM ports, a DC-in jack, and dual antenna connectors.

Battery Pack

Hot swappable, 60W or 90W.

Digital Pen

Dimension: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Keyboard Mounting Kit for Vehicle/Wall Mount Cradle

Designed to be attached with the Wall/Vehicle Mount Cradle, can be folded up when not in use.

Automobile Power Adapter by LIND

Output voltage 65W/ 19V; Input: 11-16V DC.

10.1”/11.6”/13.3” Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
