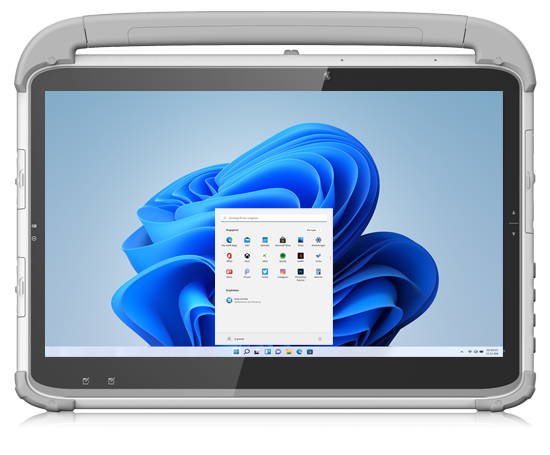

313MD RUGGED 2-IN-1 MEDICAL TABLET
Slim, Antimicrobial, ANSI/AAMI ES60601-1 Certified Tablet for Efficient Operations
The 313MD Rugged 2-in-1 Medical Tablet features the integration of a brilliant 13.3" capacitive touch screen and a high performance, energy-efficient Intel® Core™ i series processor within a slim, lightweight, durable package. With built-in front and back cameras, Wi-Fi, Bluetooth as well as optional data capture modules, this medical tablet offers health professionals an effective tool to monitor, record and retrieve patient information. With its large, vivid display, the 313MD Rugged Medical Tablet shows a wide work area and detailed application interface to enhance user experience and workflow.
Product ConfiguratorFeatures
- 13.3" Full-HD capacitive touch screen, 1000 nits, digital pen support
- Intel® 8th or 10th Generation Core™ i processor
- Microsoft® Windows® 10 IoT Enterprise or Ubuntu operating system
- NIST compliant BIOS available
- ANSI/AAMI ES60601-1certified with antimicrobial enclosure

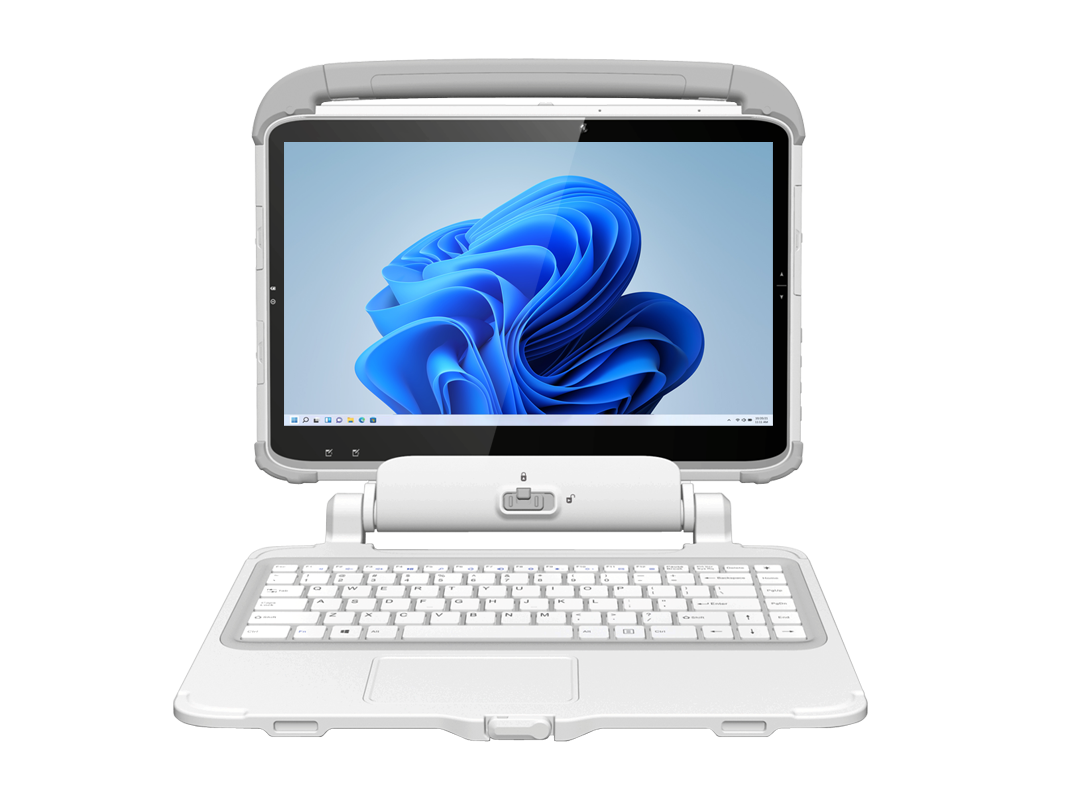

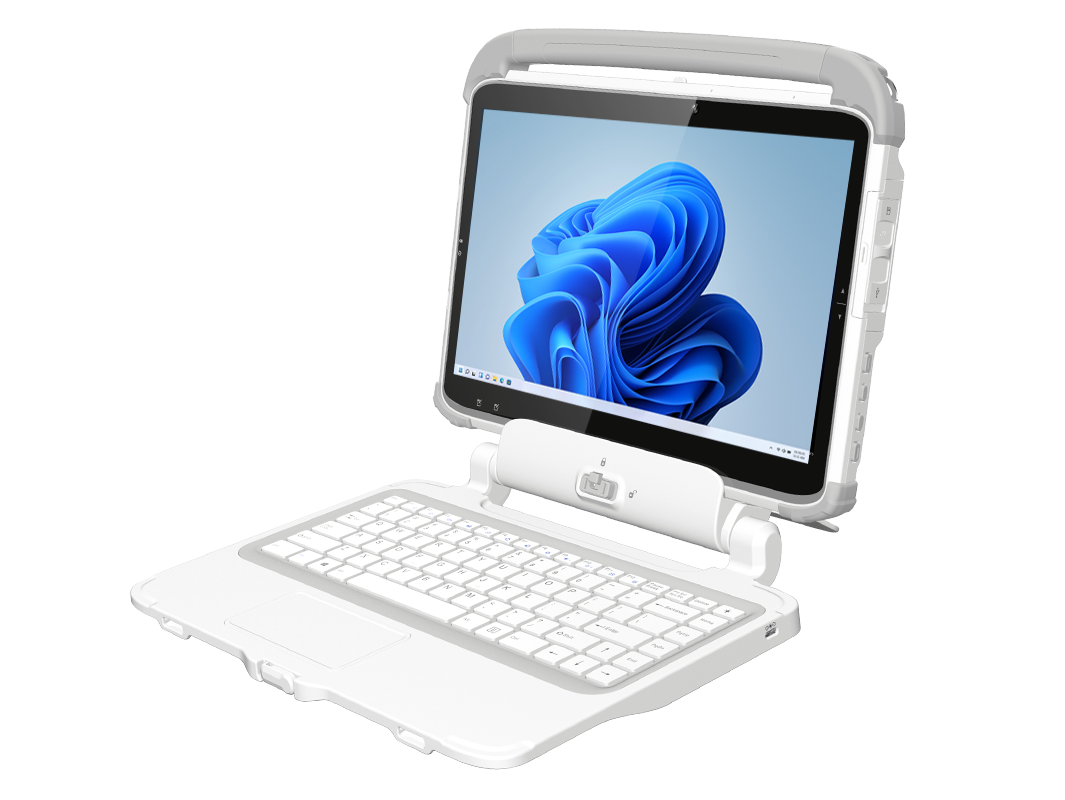

- Docking keyboard option for 2-in-1 (tablet/ laptop) applications
- Hot swappable battery pack
- IP65-rated for water and dust resistance
- MIL-STD-810G for shock and vibration protection
- Built-in front and back cameras
- Built-in smart card/CAC reader
Major Options
- Barcode scanner
- NFC/RFID reader
- 4G LTE/AWS
Specifications
SYSTEM
-
CPU
Intel® Core™ i5-8250U, Quad-Core, 1.6GHz (up to 3.4GHz)
Intel® Core™ i7-8550U, Quad-Core, 1.8GHz (up to 4.0GHz)
Intel® Core™ i7-10710U, Hexa-Core, 1.1GHz (up to 4.7GHz) -
RAM
8GB to 16GB
-
Storage
256GB to 512GB Flash
-
Operating System
Microsoft® Windows® 10 IoT Enterprise or Ubuntu
-
NIST Compliance
NIST compliant BIOS available
-
Display
13.3” LED-backlight, high-brightness (1000 nits) screen with capacitive touch, outdoor viewable
-
Display Resolution
1920 x 1080
-
Network Interface
Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE
-
Control Switch and Buttons
1 power button, 2 brightness control buttons, 5 programmable buttons
-
Speaker
Built-in speaker
-
Camera
Full-HD front camera and 8 megapixel back camera

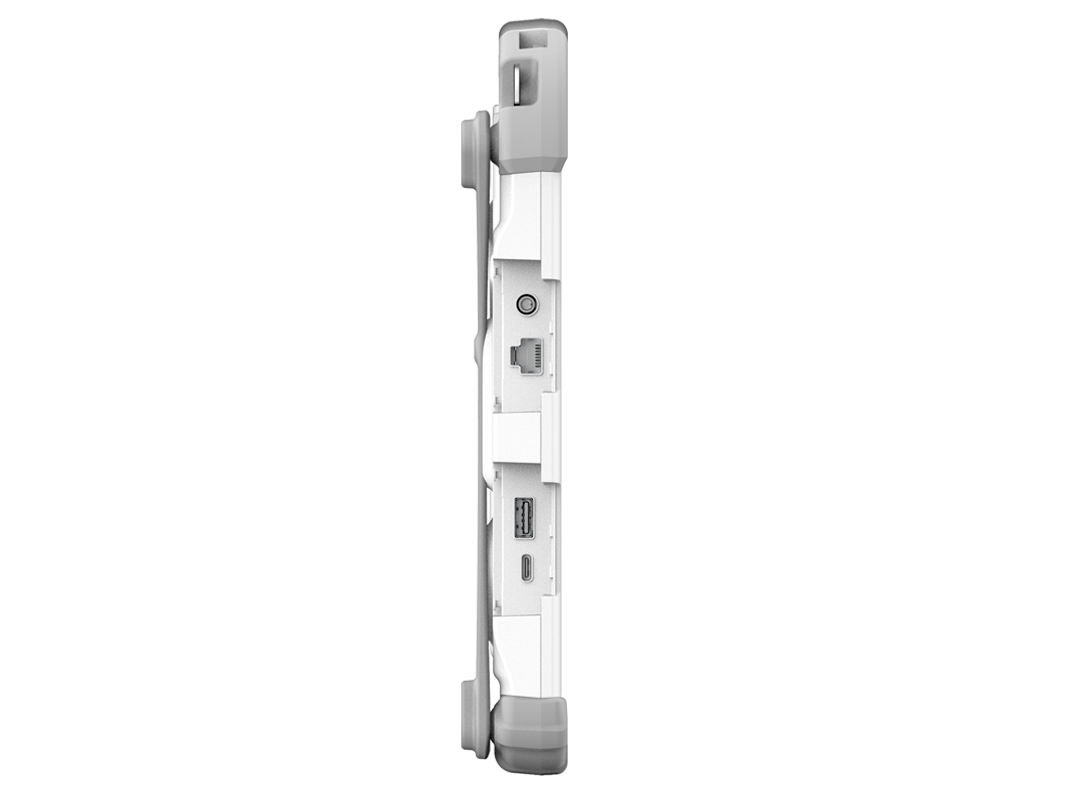

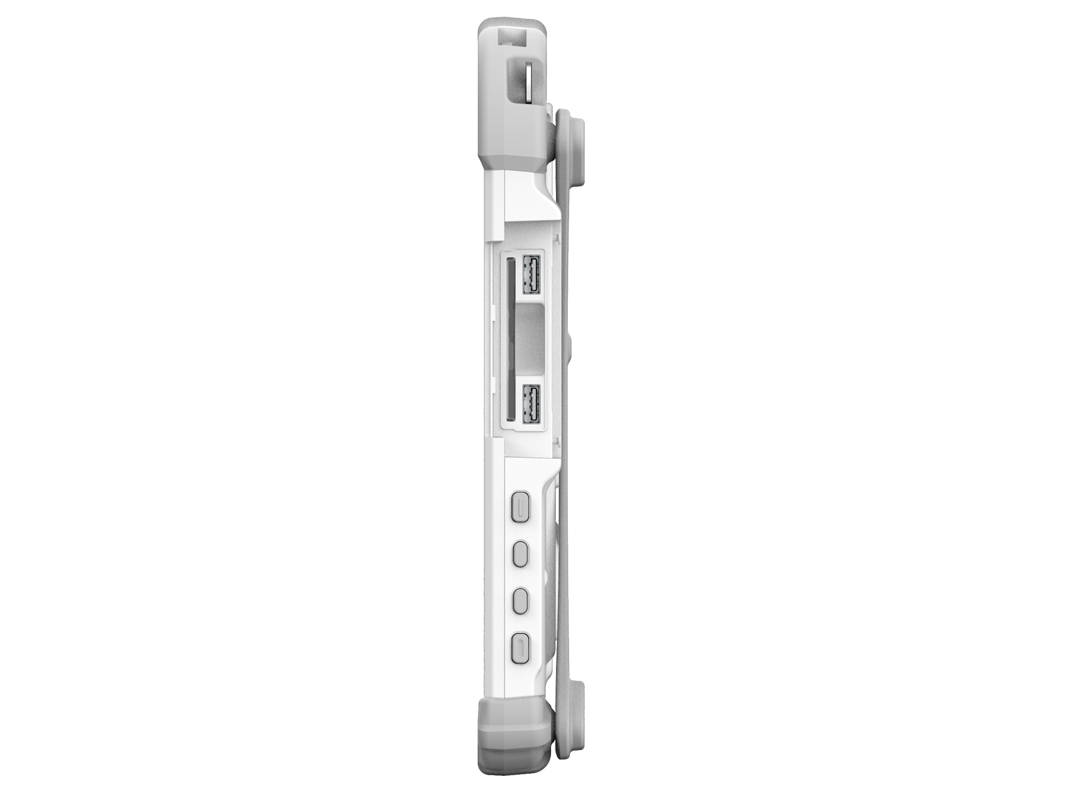

I/O PORTS
-
USB 3.0 Port
USB 3.0 x 3,
USB Type C x 1 (data transmitting and charging) -
Headphone-out
1
-
Ethernet Port
Ethernet 10/ 100/ 1000MB Base-T LAN
-
Smart Card/ CAC Reader
Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100-240V AC; Output: 20V DC, 3A
-
Battery Pack
Hot swappable battery, 11.4V, 5400mAh;
-
Enclosure
ABS + PC plastics and magnesium-aluminum alloy; antimicrobial enclosure
-
Dimensions (H x W x D)
10.1 x 13.2 x 0.8 in/ 256 x 335 x 21 mm
-
Weight
3.97 lbs/ 1.8 kg
-
Durability
IP65 and MIL-STD-810G certified
-
Regulatory
FCC/IC, CE/CB, RCM, CCC, ANSI/AAMI ES60601-1
-
Temperature
Operation*: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
* For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F) -
Humidity
0% – 90% non-condensing
MAJOR OPTIONS SPECS
-
BARCODE SCANNER
2D scanner, reads 1D also
-
NFC/RFID READER
Dual frequency, reads both 125KHz and 13.56MHz credentials
-
MOBILE BROADBAND
4G LTE/AWS
Accessories
Docking Keyboard
Ports for Power, LAN, HDMI output and USB; designed to connect to the 313MD series rugged tablets, instantly pairs, ideal for 2-in-1 applications.
Battery Gang Charger
Simultaneously charge 6 external batteries.
AC/DC Power Adapter with Power Cord
Facilitates Tablet operation or battery recharge. USB Type-C connector.
Desktop Charging Cradle
Docking support with ports for Power, USB, HDMI outputs and Ethernet.
Tablet Mount Cradle
Tablet storage and security with power, HDMI-out, COM, Ethernet pass-through, and USB ports; power supply is not included.
Battery Pack
Hot swappable, 60W.
Digital Pen
Dimension: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
3-Slot Battery Holster
Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
X-Handstrap
Designed to securely hold the Tablet; soft plastic, easy to clean, for left- or right-handed users.
Gallery
