DT361WF Tactical Tablet
Slim, Rugged, Multi-functional Wireless Computing
The DT361WF Tactical Tablet features a 6” LED 850 nits touchscreen with a high-performance, energy-efficient Intel® Core™ 3 N355 processor within a slim, lightweight, durable package. With built-in Wi-Fi, BT connectivity, optional night vision screens, GPS and front/back cameras options, the robust tablet offers seamless information capture and transmission for improved workflow. With IP65 and MIL-STD-810H certification, the DT361WF Tactical Tablet provides reliable operation in harsh, mission-critical environments.
Features
- 6” LED 850 nits touchscreen, capacitive stylus support
- Intel® Core™ 3 N355 processor
- Microsoft® Windows® 11 operating system
- IP65-rated for water and dust resistance
- MIL-STD-810H for shock and vibration protection
- Hot-swappable battery pack
Major Options
- Night vision screen
- 5 MP front camera and 13 MP back camera
- Wide operating temperature range
- GPS module
- Waterproof 24-pin Fischer MiniMax connector
Specifications
System
-
CPU
Intel® Core™ 3 N355, Octa-core (up to 3.9 GHz)
-
Storage and RAM
512GB or 1TB removable SSD with 16GB RAM
-
Operating System
Microsoft® Windows® 11 IoT Enterprise
-
NIST Compliance
NIST compliant BIOS available
-
Display
6” LED 850 nits touchscreen
-
Display Resolution
Default: 1080 x 2160
Optional NVIS panel: 1440 x 720 -
Control Switch and Buttons
1 x power button, 1 x NVIS/daylight button, 2 x programmable buttons
-
Microphone
Built-in microphone
-
Speaker
Built-in speaker
Network Interface
-
WLAN
Wi-Fi 802.11ax, 2.4/5/6 GHz three band
-
BT
5.3

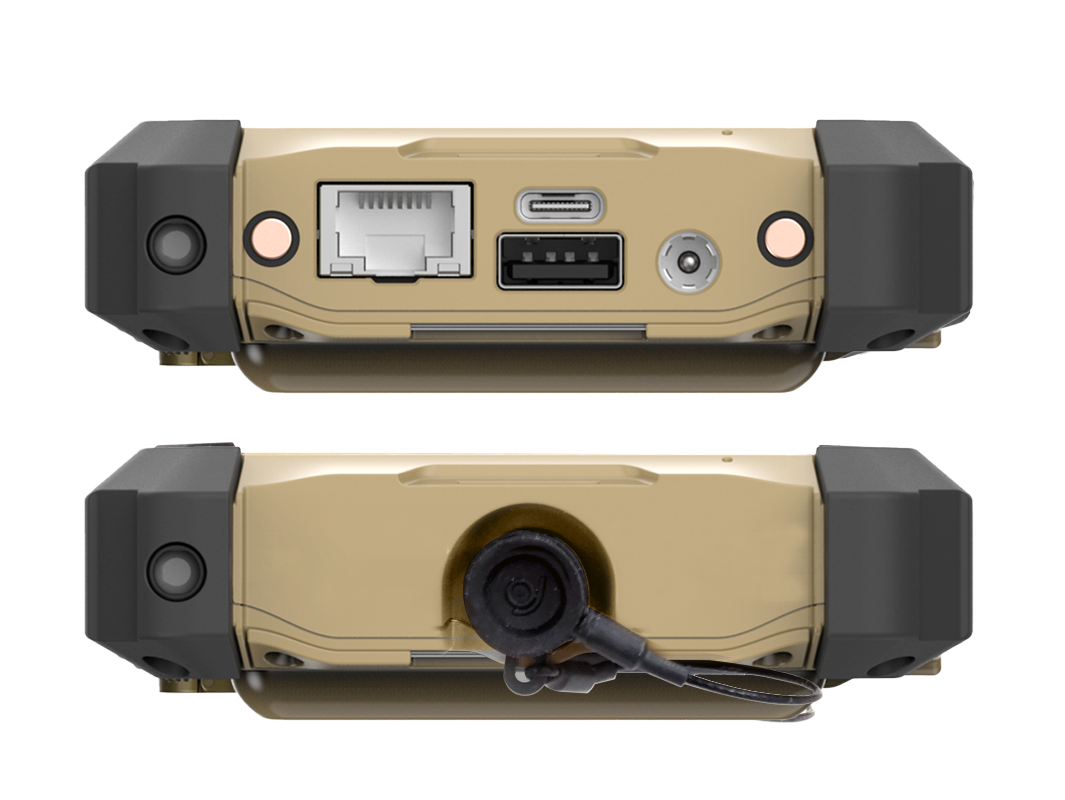

I/O PORTS
-
USB Port
1 x latest USB/charging; 1 x USB-A
-
Ethernet
Ethernet 10/ 100/ 1000MB Base-T LAN
-
DC-in
1
-
24-pin Fischer Minimax Connector * Eliminates the USB, Ethernet, and DC-in ports on the bottom.
(Optional) Ethernet, USB-3.2 5G/USB2.0, and power 5-6A (in) and power 2A (out)/ground/URAT
-
microSD Slot
(Optional) 1 x microSD card slot
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 3.42A
-
Battery Pack
23W Hot-swappable battery (7.6V, 3100mAh)
-
Enclosure
ABS + PC plastics and magnesium-aluminum alloy
-
Dimensions (H x W x D)
3.73 x 7.7 x1.4 in/ 94.8 x 196 x 35.78 mm (with strap)
-
Weight
1.23 lb/ 560 g (with battery)
-
Durability
IP65 and MIL-STD-810H
-
Regulatory
FCC Class B, CE, RoHS compliant
-
Temperature
Operation: -10°C to 60°C (14°F to 140°F );
Optional -30°C to 60°C (-22°F to 140°F)
Storage: -50°C to 70°C (-58°F to 158°F) -
Humidity
0% to 90% non-condensing
MAJOR OPTION SPECS
-
Night Vision Screen
Option 1 : Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of display with the naked eye in dark environments, does not interfere with NVGs.
Option 2 : Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of display with NVGs in dark environments. -
Camera
5 MP front camera and 13 MP back camera
-
GNSS Module
GPS module
Accessories
Capacitive Stylus
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
4-Bay System Gang Charger
Multi-bay charger, capable of charging up to 4 tablets simultaneously.
6-Bay Battery Gang Charger
Multi-bay charger, capable of charging up to 6 battery packs simultaneously.
Battery Packs
3100mAh battery packs.
Vest Tablet Mount
Attach to a tactical vest. Foldable, for hands-free and easy insert/remove tablet operation.
*The vest is not included in the standard package.
